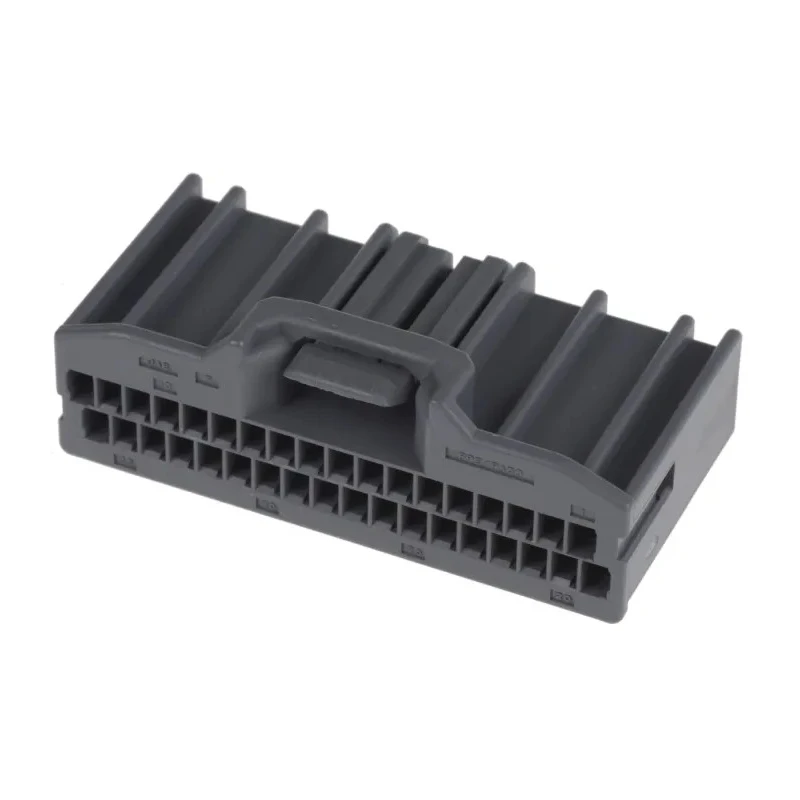

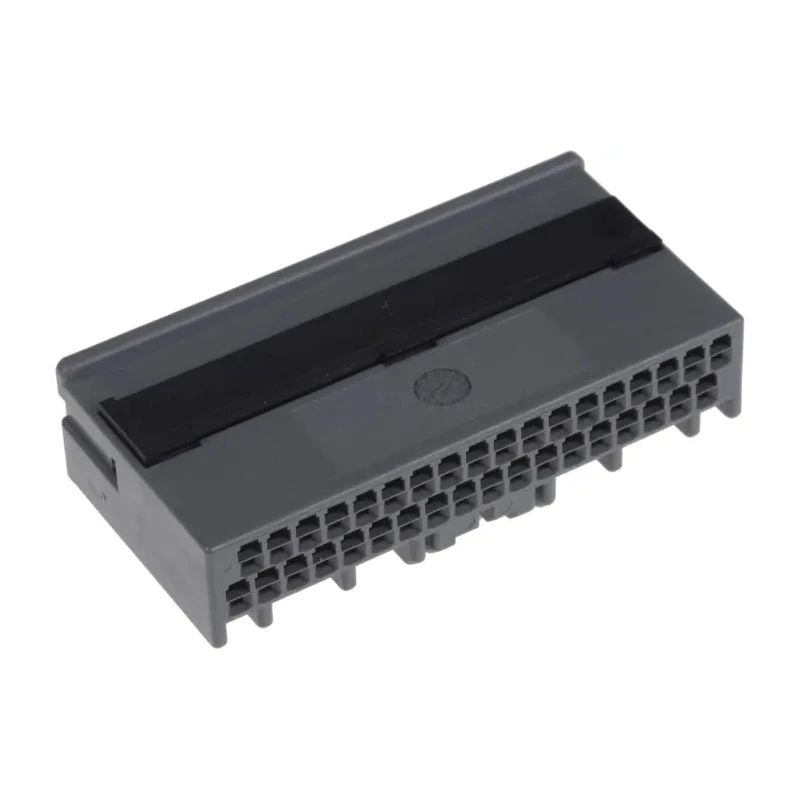

JAE MX34 Automotive Connector Female Grey Cable 36 Way Crimp Termination MX34036SF1

JAE MX34036SF1 is a female automotive connector from the MX34 series featuring a grey cable socket housing with 36 contact positions arranged in 2 rows. Designed for crimp termination, this connector supports a 3A current rating and fits automotive electrical connector requirements precisely. The housing is made of high-strength nylon and polyphenylene ether material, ensuring durability and resistance to mechanical stresses common in automotive environments.

Operating effectively within a temperature range from -40°C up to 85°C, this connector is suitable for various automotive, industrial, and manufacturing applications requiring reliable electrical connections. The tin-plated contacts offer excellent conductivity and corrosion protection. The connector incorporates a preset double locking system and a box-type pin header design that minimizes mating force to 80N or less, improving assembly efficiency.

This MX34 series connector utilizes a socket contact with a proven double leaf spring mechanism that resists twisting forces, ensuring secure contact. The locking spring features a protective bridge, preventing damage from external loads. The preset-type retainer guarantees complete insertion before engagement, reducing the risk of incomplete connections.

Accessories for this connector include MX34 headers with stock numbers 690-8935 (straight) and 690-8900 (90°), sold separately. The connector complies with RoHS standards, supporting environmentally friendly manufacturing practices.

High-quality MX34 socket housing with 2 rows for 36 contacts. Female gender type designed for crimp termination applications. Operates reliably between -40°C to 85°C temperature range. Constructed from durable nylon and polyphenylene ether housing materials.

Contacts plated with tin to ensure corrosion resistance and conductivity. Supports continuous current rating of 3A for automotive electrical systems. Compact design with dimensions 42.7mm width, 21.3mm depth, and 14mm height.

Non-waterproof board-to-cable connector specialized for automotive use. Equipped with a double locking mechanism for secure mating and enhanced workability. Suitable for assembly with MX34 header parts 690-8935 (straight) or 690-8900 (90°).

This connector is ideal for automotive electrical systems assembly, industrial equipment wiring, and manufacturing applications where secure and verified connections are critical. It facilitates easy cable termination and improved production efficiency.
