JAE MX34 Automotive Connector Female Grey Cable 40 Way Crimp Termination

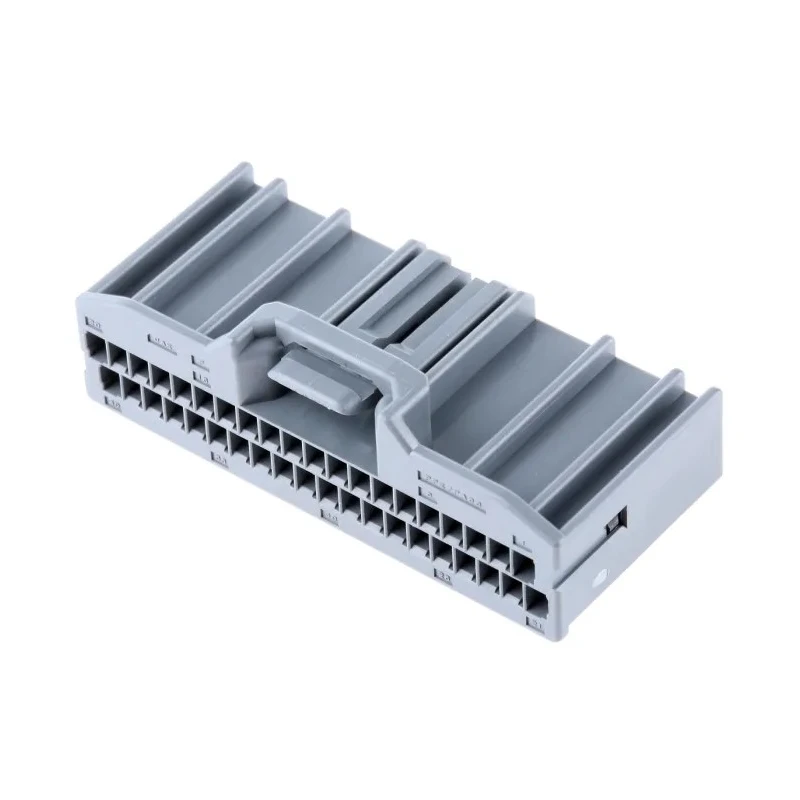

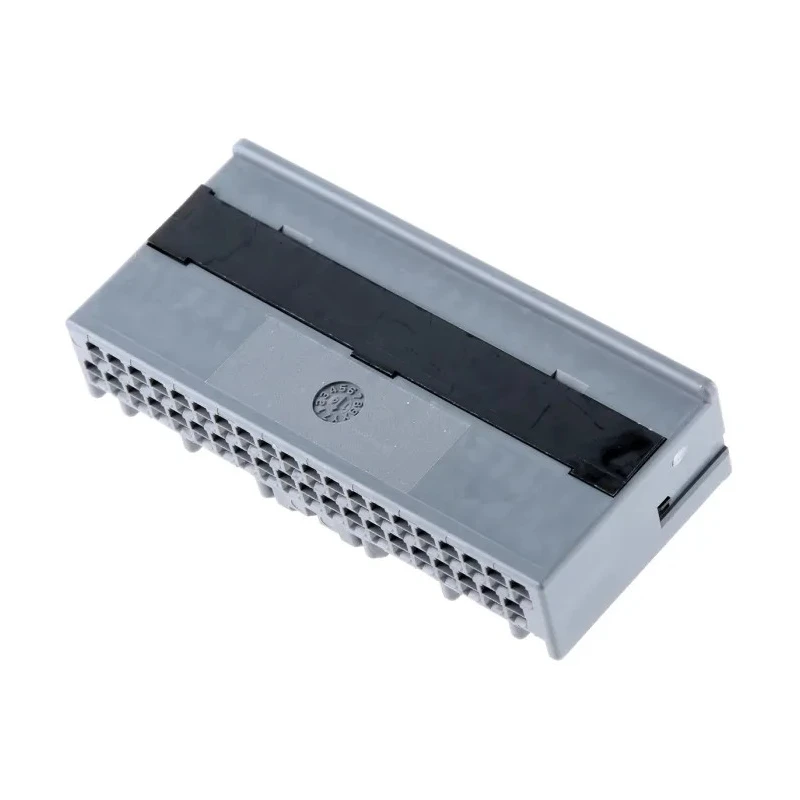

JAE MX34040SF1 is a female automotive connector from the MX34 series designed for cable mounting with crimp termination. This 40-way socket housing connector features a grey polyphenylene ether and nylon housing that offers robust mechanical protection and temperature resistance ranging from -40°C to 85°C, making it well-suited for automotive electrical systems.

The MX34 series connectors are compact, non-waterproof board-to-cable connectors developed primarily for automotive applications. The 40 poles reduce mating and unmating force to 80N or less, improving workability and ease of use during assembly processes.

This connector incorporates a preset-type double locking mechanism and a box-type pin header, which provide excellent retention and resistance to external mechanical stresses. The socket contacts are highly resistant to twisting forces due to a durable double leaf spring design, ensuring long-term reliability in harsh automotive environments.

The tin-plated contacts guarantee strong electrical conductivity and corrosion resistance, essential for automotive electrical performance. The connector is compliant with RoHS standards, adhering to environmental and safety regulations.

Installation dimensions include a width of 47.1mm, height of 14mm, and depth of 21.3mm, allowing compatibility with various automotive harness configurations. The connector is designed for use with MX34 cable contacts and pairs with compatible MX34 headers, such as the straight type (stock number 690-8935) or 90° type (stock number 690-8900).

Compact MX34 series socket housing designed for automotive use. 40 contacts arranged in 2 rows with a current rating of 3A per contact. Grey polyphenylene ether and nylon housing offers durability and resistance to temperature from -40°C to 85°C.

Crimp termination ensures secure cable mounting and reliable electrical contact. Contact plating with tin provides corrosion resistance and enhances conductivity. Preset-type double locking mechanism enhances connector engagement and prevents incomplete insertion.

Box-type pin header structure improves mechanical strength against external forces. Compliant with RoHS standards for environmental safety. Dimensions approx. width 47.1mm, height 14mm, depth 21.3mm ensuring compact installation.

Suitable for automotive electrical wiring harness assembly requiring high reliability and ease of mating.

This product is ideal for industrial automotive electrical connections, HVAC automotive systems, manufacturing of wiring harnesses, and general automotive maintenance and repair tasks requiring durable, reliable connectors.

Explore more in our Automotive Connector category for compatible JAE connectors and accessories to complete your installation and maintenance requirements.
