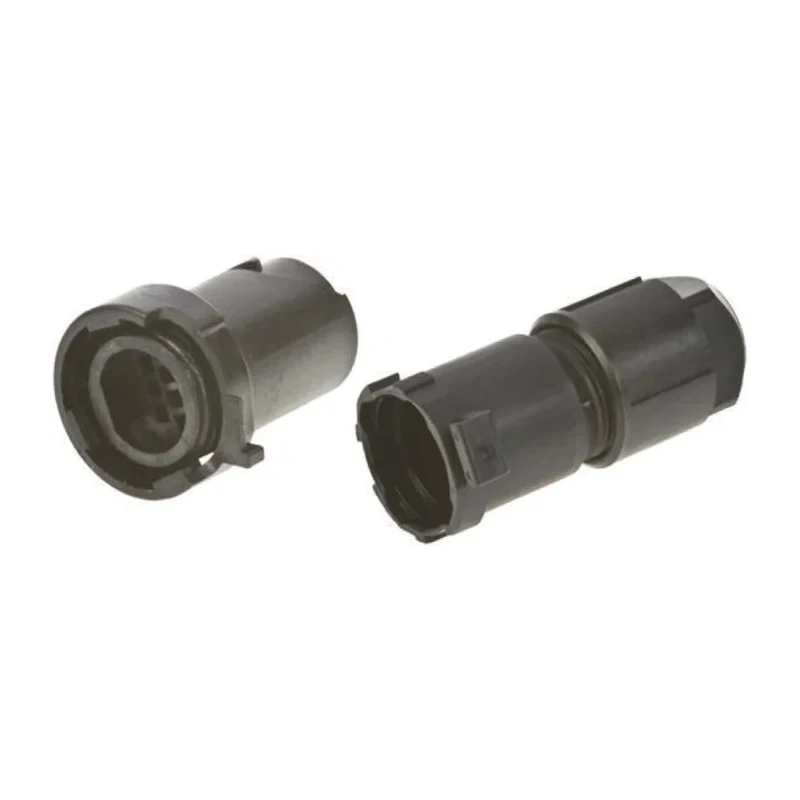

JAE Circular Connector, 4 Contacts, Cable Mount, 20 mm, Male Socket, IP67 Rated, Synthetic Resin Housing, 200V JN1HS04MK2-R

Free Delivery in India | Lowest Global Shipping Charges

JAE Circular Connector, 4 Contacts, Cable Mount, 20 mm, Male Socket, IP67 Rated, Synthetic Resin Housing, 200V JN1HS04MK2-R



Category Industrial Circular Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	200V
Brand	JAE
Orientation	Straight
Current	5A
Model	JN1HS04MK2-R
IP Rating	IP67
Mount Type	Cable
Housing Material	Synthetic Resin
Contact Material	Copper
Series	JN1
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-20°C
Pole Format	4
Contact Plating	Silver
Number of Contacts	4
Contact Gender	Male
Shell Size	20.3 mm
Mating Type	Push Lock
Connector Size	20 mm
Plug/Socket	Socket

Key Features

Designed for industrial use with 200V voltage rating and 5A current capacity.
Equipped with a push lock mating system ensuring secure connection.
Constructed with synthetic resin housing for durability and lightweight.
Operates reliably in temperatures ranging from -20°C to 125°C.
Silver-plated copper contacts provide excellent conductivity and corrosion resistance.
Housing and seal provide IP67 dust and waterproof protection.
Termination type is solder suitable for secure wiring.
Straight orientation allows easy cable routing in installation.

Product Description

JAE JN1HS04MK2-R Circular Connector is engineered for industrial and commercial electronics setups requiring reliable connectivity. It features a 4-contact male socket configuration mounted on cable with a 20 mm connector size. Rated for IP67, this connector offers excellent protection against dust and water ingress, making it suitable for rugged environments.

The synthetic resin housing ensures resistance to mechanical stress and environmental factors, while the silver-plated copper contacts deliver efficient electrical conductivity and corrosion resistance. It supports a voltage rating of 200V and maximum current of 5A, sufficient for a range of industrial applications.

The push lock mating type facilitates a secure and quick lock mechanism, reducing installation time and improving reliability. Its straight orientation and 20.3 mm shell size conform to industrial standards for cable connectors.

Temperature operational range from -20°C to 125°C assures performance in demanding conditions. Termination by soldering provides robust electrical and mechanical connection to cabling.

This JN1 series connector line by JAE enhances industrial electronics and automation systems ensuring stable and waterproof connections. Ideal for manufacturing lines, machinery, and automation equipment, it supports enhanced operational uptime and safety.

4 contacts for reliable signal and power transmission. Push lock mating mechanism for secure connectivity. IP67 rated for dust and waterproof operations. Durable synthetic resin housing for extended life. Silver-plated copper contacts for excellent conductivity.

Operates in extreme temperatures from -20°C to 125°C. Solder termination type for secure connections. Straight orientation enabling flexible installation. Standard 20.3 mm shell size. 200V voltage and 5A current rating suitable for industrial use.
