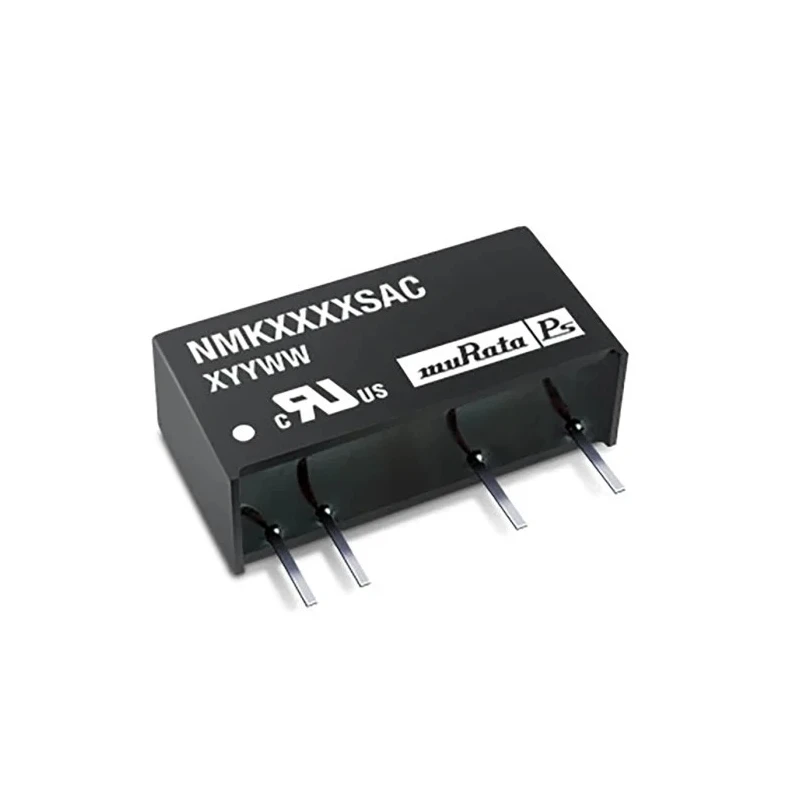

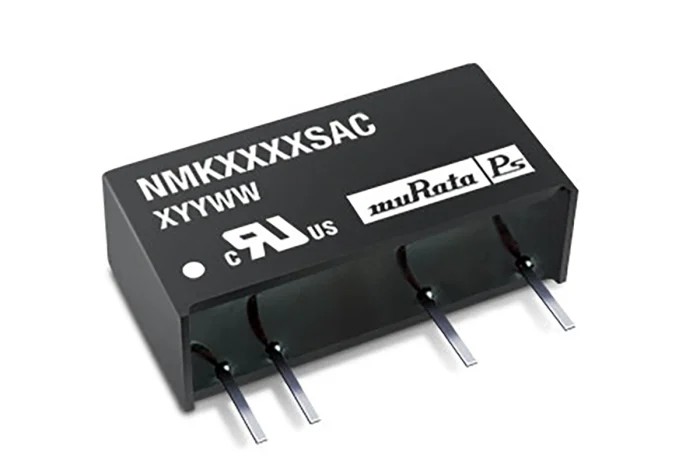

Murata Power Solutions NMK Series 2W SIP DC/DC Converter 12V DC Output, 13.2V DC Max Input, 167mA Current NMK1212SAC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMK DC/DC Converter, 12V dc |
| Brand | Murata Power Solutions |
| Efficiency | 88% |
| Length | 19.5mm |
| Model | NMK1212SAC |
| Depth | 10mm |
| Gross Weight | 2.8g |
| Width | 19.6mm |
| Mount Type | Through Hole |
| Series | NMK |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2246000h |
| Number of outputs | 1 |
| Ripple and Noise | 23mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 167mA |
| Isolation Voltage | 3kV dc |
Key Features
- Compact SIP package with through-hole mounting.
- High isolation voltage of 3kV DC to ensure electrical separation.
- Outputs a steady 12V DC at up to 167mA current.
- Operates within a wide temperature range from -40°C to 85°C.
- High efficiency rated at 88% with a power density of 1.31W/cm³.
- Fully encapsulated design using toroidal magnetics without electrolytic or tantalum capacitors.
- RoHS compliant and featuring UL 94V-0 rated package material.
- Industry standard 7-pin SIP package measuring 19.5mm length × 19.6mm width × 10mm depth.
Product Description
Murata Power Solutions NMK1212SAC is a 2W DC/DC converter part of the industrial temperature range NMK series. This SIP (Single Inline Package) converter delivers an unregulated isolated output voltage of 12V DC with a maximum input voltage of 13.2V DC and a minimum input voltage of 10.8V DC. It provides output current up to 167mA through a 7-pin through-hole mount configuration, making it suitable for compact power supply designs.
The NMK series offers a high power density of 1.31W/cm³ and an efficiency of 88%, ideal for demanding industrial applications including power supplies in instrumentation, communications equipment, and embedded systems. It supports wide operating temperatures from -40°C to 85°C and features a robust 3kV DC isolation voltage for electrical safety.
This converter has a mean time between failures (MTBF) of 2,246,000 hours, ensuring dependable performance in industrial and commercial environments. Its fully encapsulated design with toroidal magnetics omits the use of electrolytic or tantalum capacitors, enhancing long-term reliability. The package meets RoHS compliance and uses UL 94V-0 flame retardant material.
The product does not require additional heatsinks during operation and follows industry-standard pinouts to support easy integration. The compact dimensions of 19.5mm length, 19.6mm width, and 10mm depth make it suitable for space-restricted PCB layouts.
Compact SIP package with through-hole mounting. High isolation voltage of 3kV DC to ensure electrical separation. Outputs a steady 12V DC at up to 167mA current. Operates within a wide temperature range from -40°C to 85°C.
High efficiency rated at 88% with a power density of 1.31W/cm³. Fully encapsulated design using toroidal magnetics without electrolytic or tantalum capacitors. RoHS compliant and featuring UL 94V-0 rated package material.
Industry standard 7-pin SIP package measuring 19.5mm length × 19.6mm width × 10mm depth. Mean time between failures (MTBF) of approximately 2,246,000 hours ensuring reliability. Requires no heatsink for operation at full 2W load.
This DC/DC converter is well suited for industrial, laboratory, telecommunications, and power management applications requiring isolated and stable voltage conversion in compact formats.
Explore EnvMart for a wide selection of DC/DC Converters and power management components from trusted manufacturers including Murata Power Solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model outputs a steady 12V DC with a maximum output current of 167mA.
The maximum input voltage for the NMK1212SAC is 13.2V DC.
It has an efficiency rating of 88%.
The NMK1212SAC features a high isolation voltage of 3kV DC.
This unit measures 19.5mm in length, 19.6mm in width, and 10mm in depth.
It operates within a wide temperature range from -40°C to 85°C.
This model uses through-hole mounting in a 7-pin SIP package.
The MTBF for the NMK1212SAC is approximately 2,246,000 hours.
No, it does not require additional heatsinks during operation at full 2W load.
The ripple and noise for the NMK1212SAC is specified at 23mV peak-to-peak.
Yes, this converter is RoHS compliant and features UL 94V-0 rated package material.
It is suitable for industrial, laboratory, telecommunications, and power management applications requiring isolated voltage conversion.
