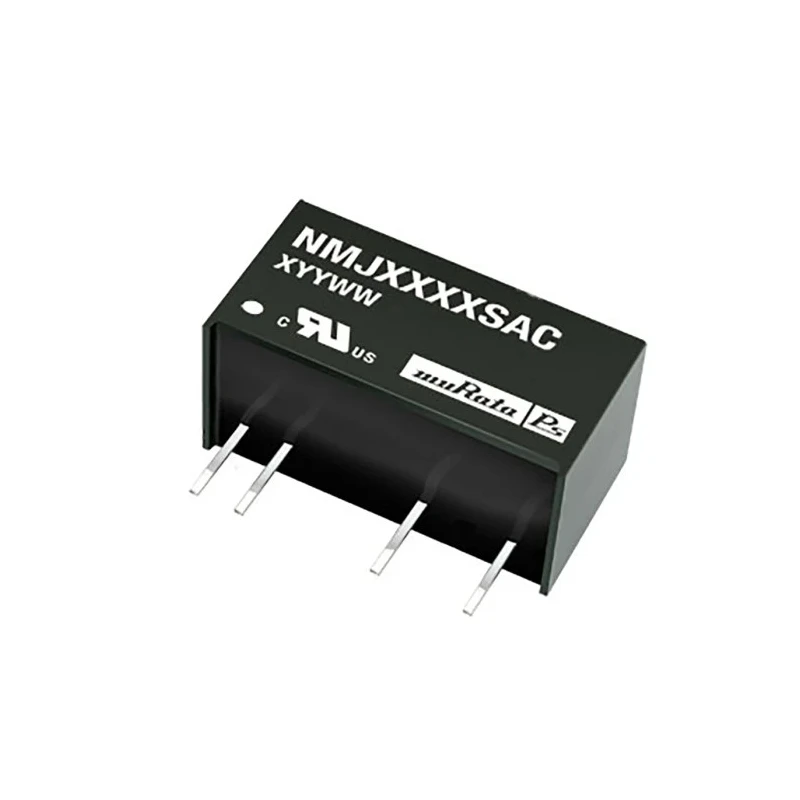

Murata Power Solutions NMJ Series 1W SIP DC/DC Converter, 15V DC Output, 66mA Output Current, 4.5-5.5V DC Input NMJ0515SAC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMJ DC/DC Converter, 15V dc |
| Brand | Murata Power Solutions |
| Efficiency | 71% |
| Length | 19.5mm |
| Model | NMJ0515SAC |
| Depth | 12.5mm |
| Gross Weight | 4.3g |
| Width | 19.5mm |
| Mount Type | Through Hole |
| Series | NMJ |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 9980000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 66mA |
| Isolation Voltage | 5.2kV dc |
Key Features
- Compact SIP package with through hole mounting for easy PCB integration.
- High isolation voltage of 5.2kV DC supports safe operation in demanding environments.
- Operating temperature range from -40°C to 85°C ensures reliable performance in varied conditions.
- Unregulated output with low ripple and noise of 50mV peak-to-peak enhances signal integrity.
- 7-pin construction with robust internal SMD technology and fully encapsulated design.
- Efficiency rating of 71% optimizes power consumption and thermal management.
- Power density of 0.42 W/cm³ enables miniaturized power supply solutions.
- RoHS compliant and UL 60950 recognized for safety and environmental standards.
Product Description
Murata Power Solutions NMJ0515SAC is a 1 watt Single Inline Package (SIP) DC/DC converter designed for efficient power conversion and electrical isolation. With a 15V DC output at 66mA and an input voltage range of 4.5 to 5.5V DC, this converter meets rigorous performance demands for industrial and electronic equipment.
The NMJ series offers a robust through hole mounting style with a 7-pin SIP footprint measuring 19.5mm length × 19.5mm width × 12.5mm depth, fitting compact designs where space is critical. It features an isolation voltage of 5.2kV DC, ensuring high voltage isolation between input and output circuits, suitable for safety-critical systems.
Operating reliably between -40°C and 85°C, it sustains performance in extreme environmental conditions. The fully encapsulated design with toroidal magnetics reduces EMI emissions and improves durability. Efficiency of 71% supports thermal efficiency without requiring a heatsink, facilitating simple integration.
This converter is unregulated with a ripple and noise of 50mV peak-to-peak, suitable for applications that can tolerate minor voltage variations. It is RoHS compliant and meets UL 60950 standards, confirming its suitability for global safety requirements. Typical uses include industrial control, instrumentation, telecom power, and battery-powered equipment.
Compact SIP 7-pin package with through hole mounting. Unregulated isolated output delivering 1 watt power at 15 volts DC. Input voltage range between 4.5V and 5.5V DC ensuring compatibility with varied power sources. High isolation voltage of 5.2 kV DC provides protection in high voltage environments.
Wide operating temperature range from -40°C to 85°C for reliable operation in harsh conditions. Efficiency of 71% reduces heat generation and increases energy savings. RoHS compliant and UL 60950 recognized for safety and environmental standards.
High MTBF of approximately 9,980,000 hours confirms long operational life. Fully encapsulated with internal SMD components and toroidal magnetics for durability. Suitable for industrial, laboratory, telecommunications, and power supply applications.
Explore more high-quality DC/DC Converters and power supply solutions at EnvMart for reliable, efficient, and safe power management.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 15V DC.
It accepts an input voltage range of 4.5 to 5.5V DC.
The maximum output current is 66mA.
The efficiency rating is 71%.
It features an isolation voltage of 5.2kV DC.
The dimensions are 19.5mm in length, 19.5mm in width, and 12.5mm in depth.
The operating temperature range is from -40°C to 85°C.
This model uses a through hole mounting style.
The ripple and noise is specified at 50mV peak-to-peak.
This converter has one output.
It is RoHS compliant and recognized under UL 60950 standards.
The gross weight of this model is 4.3g.
