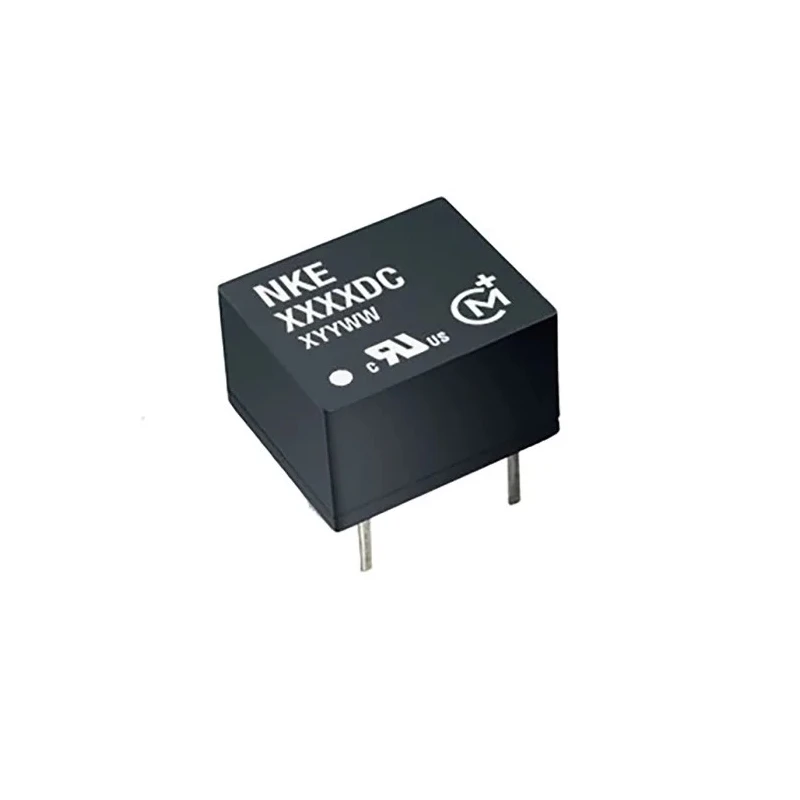

Murata Power Solutions NKE DC/DC Converter 5V DC Output 3.63V DC Max Input 2.97V Min Input 1W Power Through Hole NKE0305DC

Free Delivery in India | Lowest Global Shipping Charges

Murata Power Solutions NKE DC/DC Converter 5V DC Output 3.63V DC Max Input 2.97V Min Input 1W Power Through Hole NKE0305DC

Name: Murata Power Solutions NKE DC/DC Converter 5V DC Output 3.63V DC Max Input 2.97V Min Input 1W Power Through Hole NKE0305DC
Brand: Murata Power Solutions
SKU: 212492
Price: 9.78 USD
Availability: InStock



Category DC/DC Converter Brand Murata Power Solutions Condition New

Specifications

Country of Origin	China
Voltage	Converters / DC-DC Converters Murata Power Solutions NKE DC/DC Converter, 5V dc/
Brand	Murata Power Solutions
Efficiency	72%
Length	11.5mm
Model	NKE0305DC
Depth	5.4mm
Gross Weight	1.25g
Width	5.4mm
Mount Type	Through Hole
Series	NKE
Maximum Operating Temperature	85°C
Package Type	DIP
Minimum Operating Temperature	-40°C
MTBF	4105000h
Number of outputs	1
Ripple and Noise	80mV Pk-Pk
Maximum Output Power	1W
Maximum Input Voltage	3.63V dc
Standards/Approvals	RoHS
Minimum Input Voltage	2.97V
Number of Pins	6
Output Voltage 1	5V dc
Output Voltage Adjustment Range	2.97/3.63 V
Isolation Voltage	3kV dc
Output Current 2	200mA

Key Features

The converter features a fully encapsulated DIP package with 6 pins for secure mounting.
It provides 3kV DC isolation ensuring safe operation in electrical environments.
The device achieves an efficiency of 72% with a ripple and noise of 80mV peak-to-peak.
The single output design supports an output current of up to 2200mA.
Compact dimensions measure 11.5mm in length, 5.4mm in width, and 5.4mm in depth.
Murata's NKE series offers high reliability with a mean time between failures (MTBF) of over 4 million hours.
This DC/DC converter complies with RoHS standards for environmental safety.

Product Description

Murata Power Solutions NKE0305DC is a compact, high-reliability DC/DC converter designed for converting low voltage DC power with unregulated output. The module operates with an input voltage range from 2.97V to 3.63V DC and provides a stable 5V DC output power up to 1W. Intended for electronic and industrial applications, it is mounted using a through-hole method with a 6-pin DIP package, ensuring easy integration into PCB designs.

This converter features an isolated design with 3kV DC isolation voltage, fully encapsulated for protection, and UL 94V-0 rated package material for safety. Operating temperatures range from -40°C to 85°C, suitable for demanding environments including industrial, commercial, and laboratory applications.

The device’s efficiency is rated at 72%, maintaining low ripple and noise at 80mV peak-to-peak, delivering clean power essential for sensitive electronic equipment. Its small form factor, measuring 11.5mm x 5.4mm x 5.4mm, and lightweight construction at 1.25g support space-constrained designs without compromising performance.

Fully encapsulated DIP package with through-hole mount. Unregulated isolated single output DC/DC converter. 3kV DC isolation voltage for electrical safety. Operating temperature range from -40°C to 85°C. High efficiency of 72% with low noise and ripple.

Compliance with RoHS environmental standards. Mean time between failure (MTBF) over 4 million hours.

This NKE series DC/DC converter from Murata Power Solutions is highly suitable for power supplies, voltage conversion, and isolation tasks in industrial machines, electronic control systems, communication equipment, and power management circuits.

Explore more DC/DC Converters and power supply solutions from Murata Power Solutions and other leading manufacturers on EnvMart to meet your precise industrial and engineering needs.
