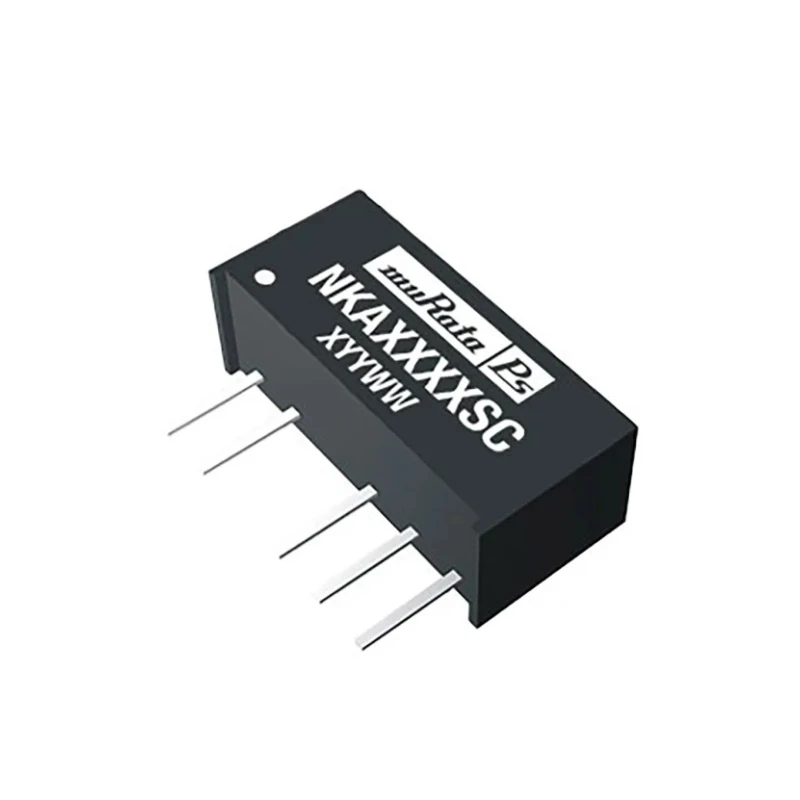

Murata Power Solutions DC/DC Converter SIP Package Through Hole Dual Output 3W 9V dc Output NKA0509SC

Murata Power Solutions NKA0509SC is a high-performance DC/DC converter designed to provide dual isolated outputs of ±9V dc at 56mA with a maximum output power of 3W.

This converter utilizes a SIP 7 through-hole mounting package which ensures easy installation and integration on printed circuit boards, ideal for industrial, telecommunications, and instrumentation applications.

The input voltage ranges between 4.5V and 5.5V dc, enabling compatibility with a variety of power sources. It offers a high isolation voltage of 3kV dc, which provides protection against electrical interference and enhances signal integrity.

Its operational temperature span from -40°C up to 85°C allows for reliable performance in harsh environments, while its 75mV peak-to-peak ripple and noise make it suitable for sensitive electronic circuits requiring clean power.

Murata has built this converter with a fully encapsulated UL 94V-0 rated material ensuring enhanced durability and fire resistance. The model exhibits a high MTBF of 682,000 hours indicating long operational life, coupled with a 76% efficiency rating which supports low power loss in applications.

This DC/DC converter meets RoHS compliance standards allowing for environmentally friendly use. Dual output isolated DC/DC converter with 3W maximum power output. Operating input voltage range from 4.5V to 5.5V dc for versatile applications.

High isolation voltage of 3kV dc ensuring electrical safety and noise rejection. Compact SIP package with through-hole mount type for easy PCB integration. Wide operating temperature range from -40°C to 85°C suitable for harsh environmental conditions.

Low ripple and noise with 75mV peak-to-peak for stable output performance. High reliability with MTBF of 682,000 hours enhancing product lifecycle. Efficiency of 76% supports energy-efficient designs. Fully encapsulated package material rated UL 94V-0 for fire resistance.

Package dimensions: Length 16.5mm, Width 5.4mm, Depth 7.55mm, Weight 1.4g.

This Murata Power Solutions NKA0509SC DC/DC converter is well suited for power management in industrial equipment, telecommunications hardware, laboratory instrumentation, and other embedded systems requiring reliable isolated dual voltage outputs.
