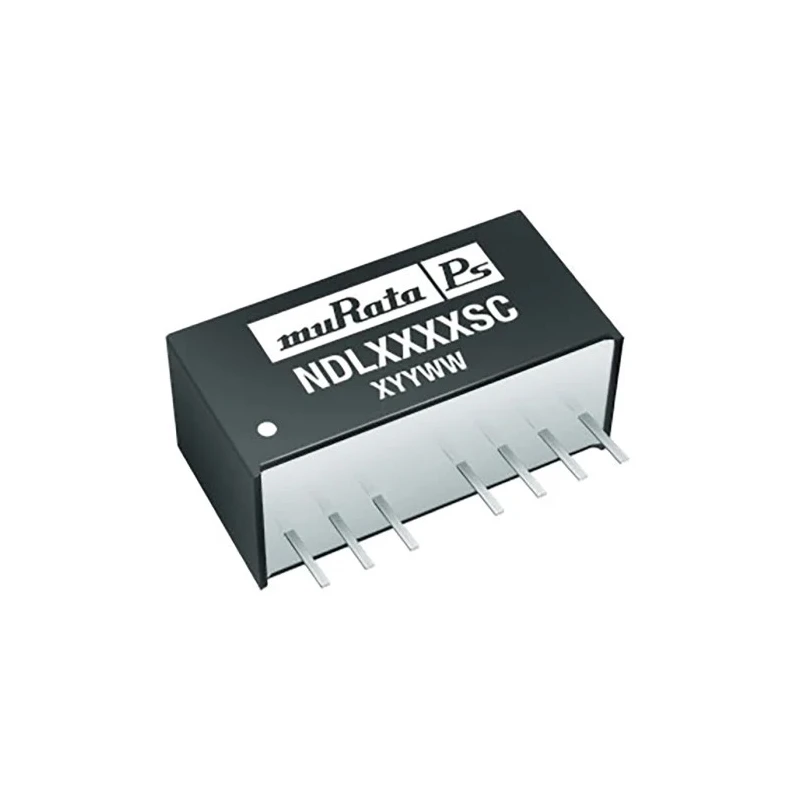

Murata Power Solutions DC/DC Converter 5V Output, 36V DC Max Input, 18V DC Min Input, 1W Power, Through Hole Mount NDL2405SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDL DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 74% |
| Length | 21.8mm |
| Model | NDL2405SC |
| Depth | 11.2mm |
| Gross Weight | 5g |
| Width | 11.1mm |
| Mount Type | Through Hole |
| Series | NDL |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1722000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 100mA |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Provides regulated 5V DC output with a maximum power of 1W.
- Supports a wide input voltage range from 18V to 36V DC.
- Designed with through hole mount type for robust PCB attachment.
- Has a compact SIP package with 8 pins and dimensions approximately 21.8mm length by 11.1mm width.
- Operates efficiently with 74% efficiency and low ripple noise of 100mV peak-to-peak.
- Certified RoHS compliant with a minimum operating temperature of -40°C and maximum of 85°C.
- Constructed with fully encapsulated UL 94V-0 package material for safety.
- Includes continuous short circuit protection with current fold back and remote on/off control.
Product Description
Murata Power Solutions NDL2405SC is a high-performance DC/DC converter designed for efficient power supply conversion, providing a stable 5V DC output with a power rating of 1W.
This converter supports a wide input voltage range from 18V to 36V DC, making it versatile for various industrial power sources. Featuring through hole mounting and a compact SIP package with eight pins, it offers ease of integration into electronic circuits.
The device ensures 1kV DC isolation for safety and reliability. Its wide 2:1 input voltage ratio, combined with continuous short circuit protection and current fold back features, guarantees durability in demanding environments.
With an efficiency of 74% and a low ripple and noise of 100mV peak-to-peak, the NDL2405SC is suitable for precision electronic applications. It also supports remote on/off control, enhancing flexibility in power management.
The product is RoHS compliant and constructed using UL 94V-0 rated encapsulated material, ensuring adherence to environmental and safety standards. Its operating temperature range from -40°C to +85°C allows it to perform reliably in harsh industrial, manufacturing, and electronic applications.
Provides regulated 5V DC output with 1W power. Wide input voltage range from 18V to 36V DC for flexible use. Through hole mounting in SIP package with 8 pins for strong PCB connection. Isolation voltage of 1kV DC for enhanced safety.
Continuous short circuit protection with current fold back. Remote on/off control capability for system integration. Efficiency rating of 74% ensures low power loss. Low noise and ripple of 100mV Pk-Pk supports sensitive electronics.
MTBF of over 1.7 million hours ensures long service life. Fully encapsulated UL 94V-0 compliant package material for safety.
This DC/DC converter is ideal for industrial, laboratory, manufacturing, and power management systems requiring reliable, compact, and efficient power conversion solutions. Explore more power supply components and DC/DC Converters with Murata Power Solutions products at EnvMart.
