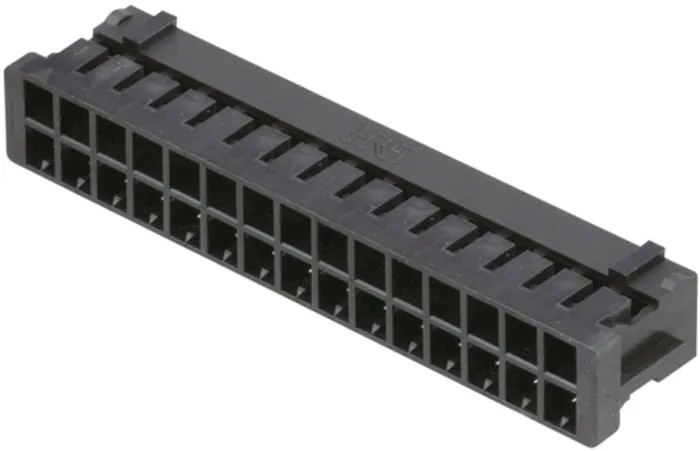

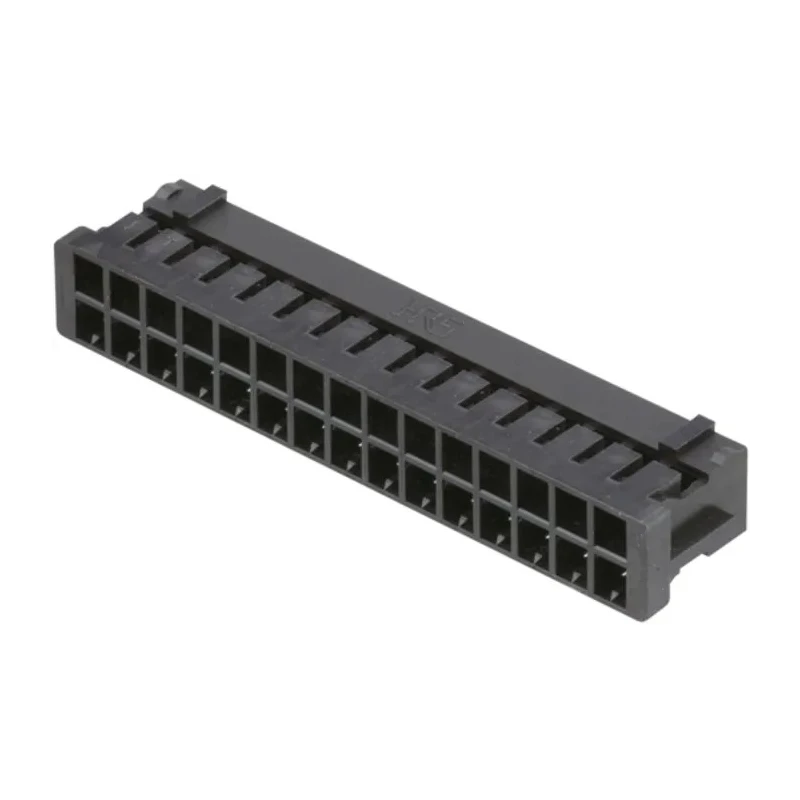

Hirose 2 mm Pitch 30 Way 2 Row Straight Female Connector Housing DF11

Hirose DF11-30DS-2C is a female connector housing designed for 2 mm pitch crimp connectors featuring 30 contacts in a double row arrangement. This cable-mount connector housing provides a compact and efficient design with a total width of 5 mm and length of 32 mm, allowing efficient usage of space in electronic assemblies. Its polyamide material offers robust insulation and physical durability.

The connector housing includes guide ribs to prevent incorrect insertion and twisting, combined with a locking mechanism ensuring secure connection to the mating DF11 series PCB header connectors. These design features provide stability and reliability in electronic assemblies subject to vibration or repeated connection cycles.

This DF11 series Connector Housing is widely used in diverse industrial and commercial electronics applications, including portable devices requiring multiple signal lines with minimal footprint, digital camera systems, LCD and other display technologies, digital video recorders, automotive navigation units, access control systems, and precision measurement equipment.

Its space-saving double row design is especially useful in modern electronics where PCB space is premium. Manufactured in Japan, the product upholds high standards of quality and reliability. Users should note that contacts for crimping need to be purchased separately to complete the wiring assembly.

Compact and space-saving design with a 5 mm housing width. Double-row contact design allows dense signal connections. Polyamide housing material ensures durability and insulation. Includes locking mechanism for secure mating with DF11 series connectors.

Guide ribs prevent incorrect insertion and twisting when mated. Length measures 32 mm, suitable for tight installation spaces. Connector designed for portable and embedded electronic applications. Manufactured in Japan ensuring high product quality.

Compatible with DF11 series PCB header connectors. Ideal for use in digital cameras, LCD displays, and measurement devices. Explore more Hirose connectors and electronic components with EnvMart to support your industrial and commercial electronics projects.
