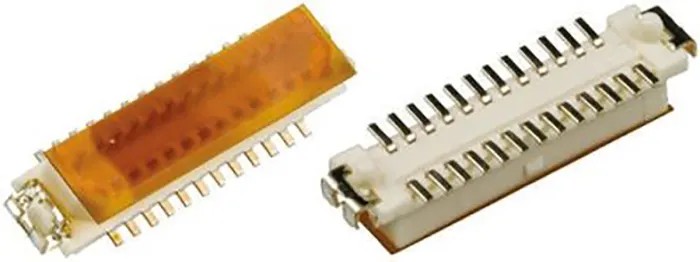

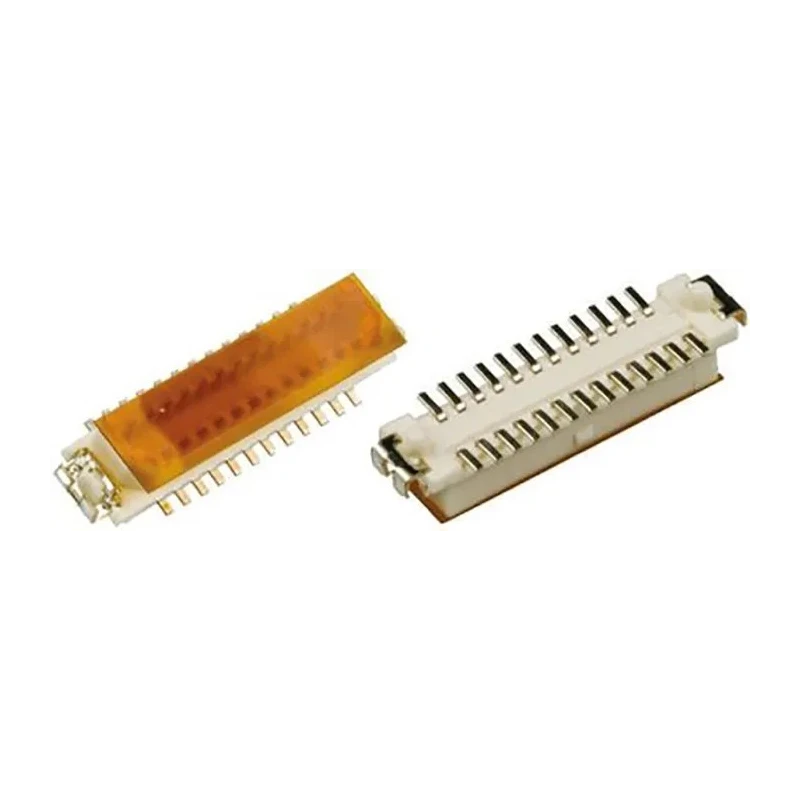

Hirose DF9 Series Straight Surface PCB Socket, 41-Contact, 2 Row, 1 mm Pitch, 150V, 500mA, Solder Termination DF9-41S-1V(32)

Hirose DF9-41S-1V(32) is a Straight Surface PCB Socket connector featuring 41 female contacts arranged in 2 rows with a 1 mm pitch, designed for board-to-board applications requiring secure and precise connections. Manufactured with durable polyamide housing and copper contacts with tin plating, this connector ensures reliable electrical performance and mechanical stability.

This connector complies with the VESA FPDI-1 standard, widely recognized for LCD display interfaces, providing a trapezoidal shaped mating interface to avoid misinsertion and an easy lock mechanism that delivers a tactile 'click' confirming the connection is secure. The surface mount design includes metal fittings to firmly attach to PCBs, preventing solder joint damage due to mechanical stress.

Designed to operate in a temperature range from -45°C to 125°C, it supports a current of 500mA and voltage up to 150V, making it suitable for precision electronic assemblies including portable devices, POS terminals, measurement instruments, and other handheld electronics. Mounting bosses aid in maintaining connector stability during soldering or manual placement operations.

Complies with VESA FPDI-1 standard interface for LCD displays. Trapezoidal mating interface prevents misinsertion and damage. Easy lock mechanism for secure and tactile connection confirmation. Polyamide housing with copper, tin-plated female contacts.

Supports 500mA current and 150V voltage for reliable power handling. Surface mount with metal fittings ensures solder joint durability. Wide operating temperature from -45°C to 125°C for versatile environments. Mounting bosses provide secure placement during soldering and handling.

Ideal for use in portable and handheld electronic devices as well as POS and measurement equipment.

This Hirose DF9 Series PCB Socket connector is a high-quality choice for industrial, manufacturing, electronic, and laboratory applications requiring dependable and compact board-to-board connections. Explore more connectors and electronic components in our extensive EnvMart catalog to meet your project requirements.
