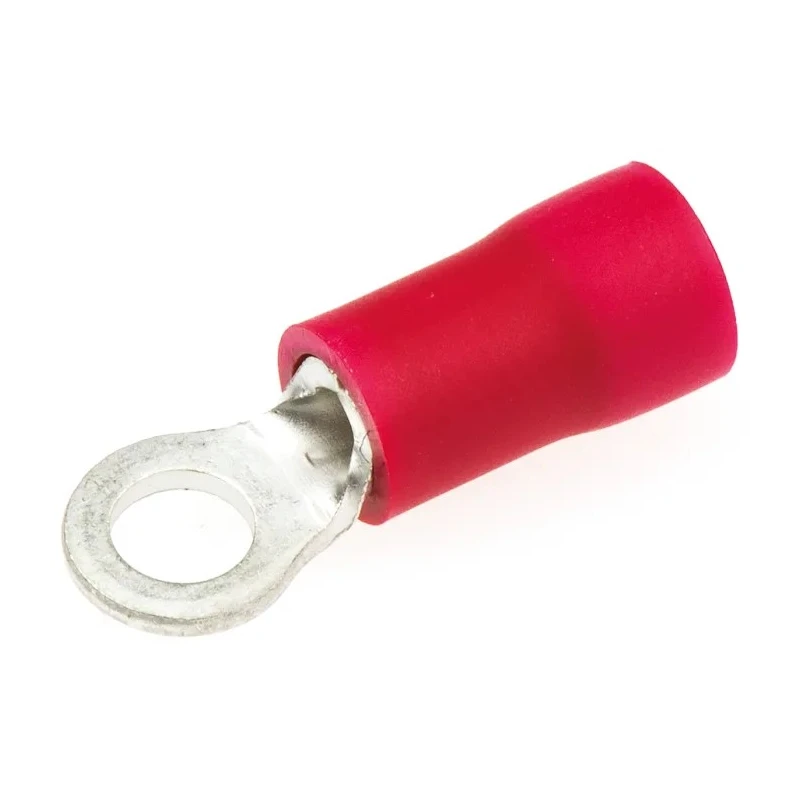

JST FV Insulated Ring Terminal M3 Stud Size 22 AWG 16 AWG Wire Size Red FVWS1.25-3(LF)

Free Delivery in India | Lowest Global Shipping Charges

JST FV Insulated Ring Terminal M3 Stud Size 22 AWG 16 AWG Wire Size Red FVWS1.25-3(LF)



Category Ring Terminal Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Red
THICKNESS	0.8mm
Model	FVWS1.25-3(LF)
Insulation	Insulated
Overall Length	15.7mm
Series	FV
Insulation Material	Vinyl
Standards/Approvals	ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	5.5mm
Inner Ring Diameter	3.2mm
Stud Size	M3
Standards/Approvals ANSI/ESD S20.20	2021 Electrostatic Control Standard, RoHS
RS PRO Insulated Ring Terminal, M3 Stud Size 22 AWG 16 AWG Wire Size, RedBrand	RS PRO

Key Features

Constructed from oxygen-free copper ensuring excellent electrical characteristics.
Vinyl insulation provides high flame resistance and strong insulation properties.
Features flared vinyl insulation with a butted seam for reliable crimping.
Suitable for wire sizes ranging from 22 AWG (0.25mm²) to 16 AWG (1.65mm²).
Overall length of 15.7 mm with an outer ring diameter of 5.5 mm and inner ring diameter of 3.2 mm.
Thickness of terminal is 0.8 mm and is rated for high temperature resistance up to 105°C.
Designed for mechanical and electrical connections in industrial and electronic applications.

Product Description

JST FVWS1.25-3(LF) insulated ring terminal is engineered for secure and efficient wire termination applications, accommodating M3 stud sizes and wire sizes between 22 AWG to 16 AWG. This red insulated ring terminal utilizes oxygen-free copper for excellent electrical conductivity and is covered with robust vinyl insulation to provide high resistance to flame and excellent electrical insulation.

The terminal’s flared vinyl insulation with a butted seam ensures reliable and consistent crimping, enhancing connection stability. Its physical dimensions include an overall length of 15.7 mm, outer ring diameter of 5.5 mm, inner ring diameter of 3.2 mm, and a thickness of 0.8 mm, making it suitable for precise fitting and secure attachment.

Rated for high temperature environments up to 105°C, this ring terminal complies with ANSI/ESD S20.20:2021 Electrostatic Control Standard, and meets RoHS environmental directives, ensuring safe and compliant usage in electronic assemblies.

This ring terminal is applicable across various industrial, electronic component manufacturing, electrical assembly, automotive, and power connector applications where reliable insulated terminal connections are required.

Constructed from oxygen-free copper for superior electrical performance. Vinyl insulation for flame resistance and electrical insulation. Flared insulation design with a butted seam for enhanced crimping. Suitable for wire sizes from 22 AWG to 16 AWG.

Compliant with ANSI/ESD S20.20:2021 and RoHS standards. Handles temperatures up to 105 degrees Celsius. Compact dimensions for secure mechanical and electrical fitting. Red colour for easy identification in wiring assemblies.

This product is part of EnvMart's electronics components category and is ideal for professionals in industrial automation, manufacturing, and electrical maintenance requiring dependable crimp Ring Terminals.
