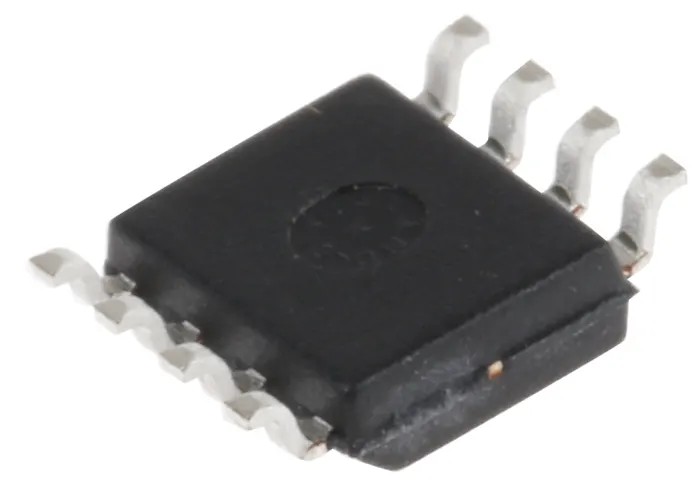

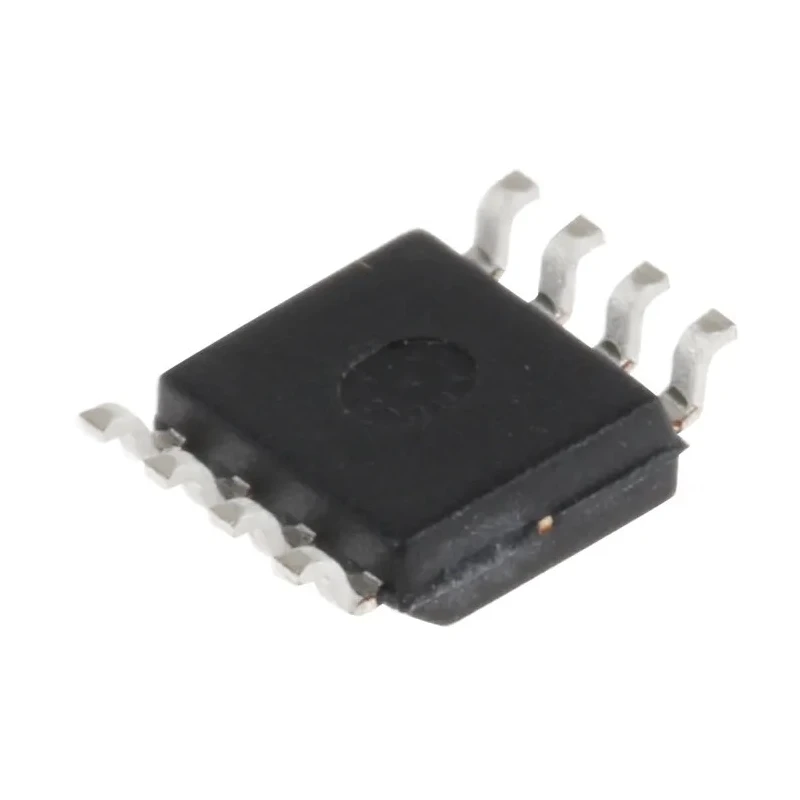

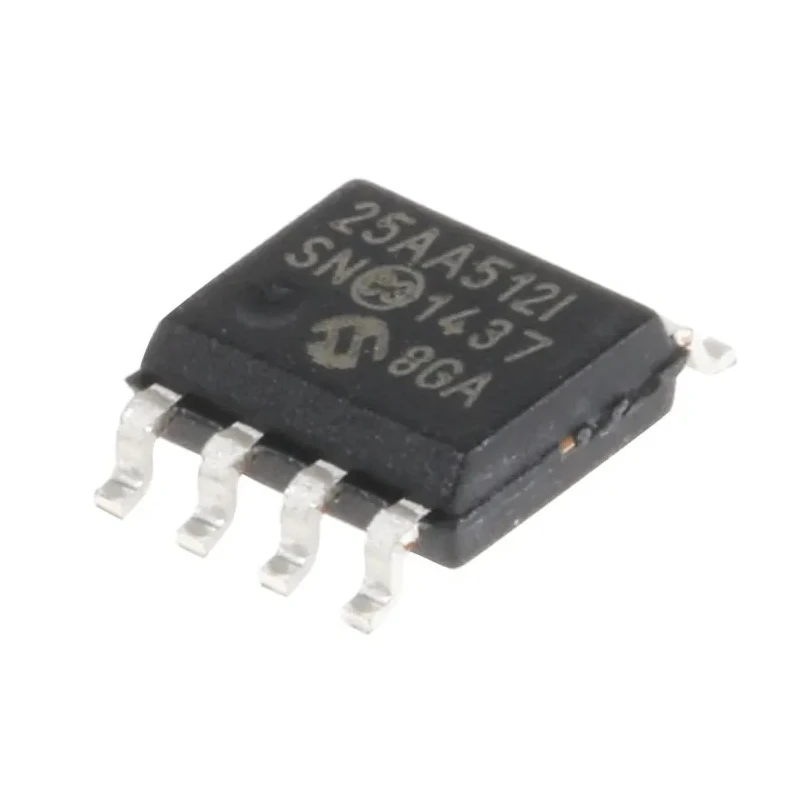

Microchip 512 kB Serial EEPROM 8-Pin SOIC Serial-SPI 25AA512-I/SN

Microchip 25AA512-I/SN is a 512 kB Serial EEPROM designed with an 8-Pin SOIC surface-mount package, operating with supply voltage from 1.8V up to 5.5V and delivering fast 250 ns maximum random access time. The device supports Serial SPI communication with a maximum clock frequency of 20 MHz, suitable for embedded system memory storage applications.

This EEPROM features byte and page-level write operations with a maximum 5 ms programming time, eliminating the need for page or sector erasure typically required in Flash memory. It supports sector write protection configurable per 16 KB sectors, offering flexible data safeguard options.

Additional features include self-timed erase and write cycles with typical page erase times of 5 ms and sector erase times of 10 ms, power-on and power-off data protection circuitry, write enable latch, and write-protect pin functions to ensure data integrity.

With an endurance rating of 1 million erase/write cycles and data retention exceeding 200 years, this device is well-suited for long-term data storage in industrial, automotive, telecommunications, and consumer electronics applications. It complies with the automotive standard AEC-Q100 ensuring robustness in harsh environments.

The 25AA512-I/SN draws 10 mA maximum supply current during read operations at 5.5V and 20 MHz clock rate, and has a low deep power-down standby current of 1 µA at 2.5V, making it energy efficient for battery-powered devices.

The compact footprint of 4.9 mm length and 6 mm width allows efficient PCB real estate utilization. Its ESD protection rating greater than 4000 volts guards against electrostatic discharge damage, contributing to device reliability in manufacturing and field environments.

Typical applications include memory expansion in industrial automation, automotive control modules, consumer electronics, and telecommunications equipment where reliable, high endurance data storage is critical.

Operates over industrial temperature range (-40°C to 85°C). Provides robust data protection and write enable features. Compatible with Serial SPI interface communications for easy integration. Supports up to 20 MHz clock speed for fast data access.
