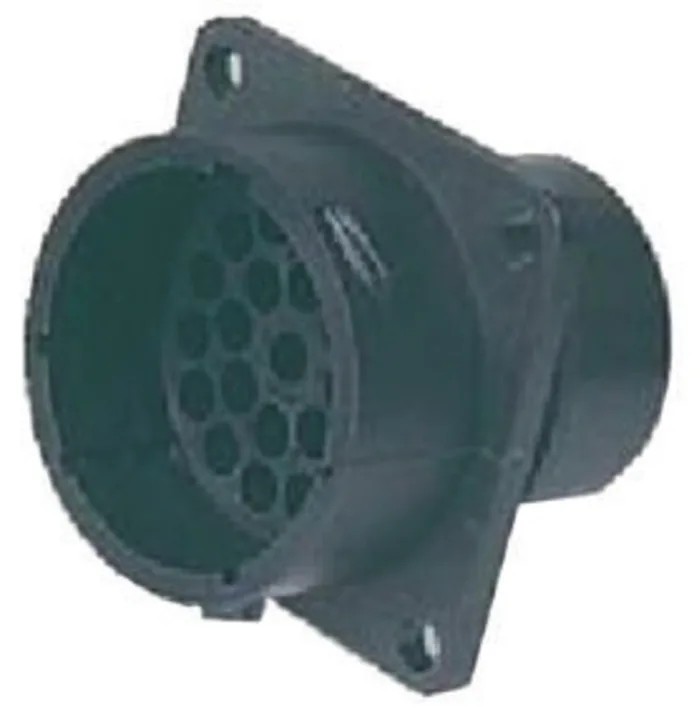

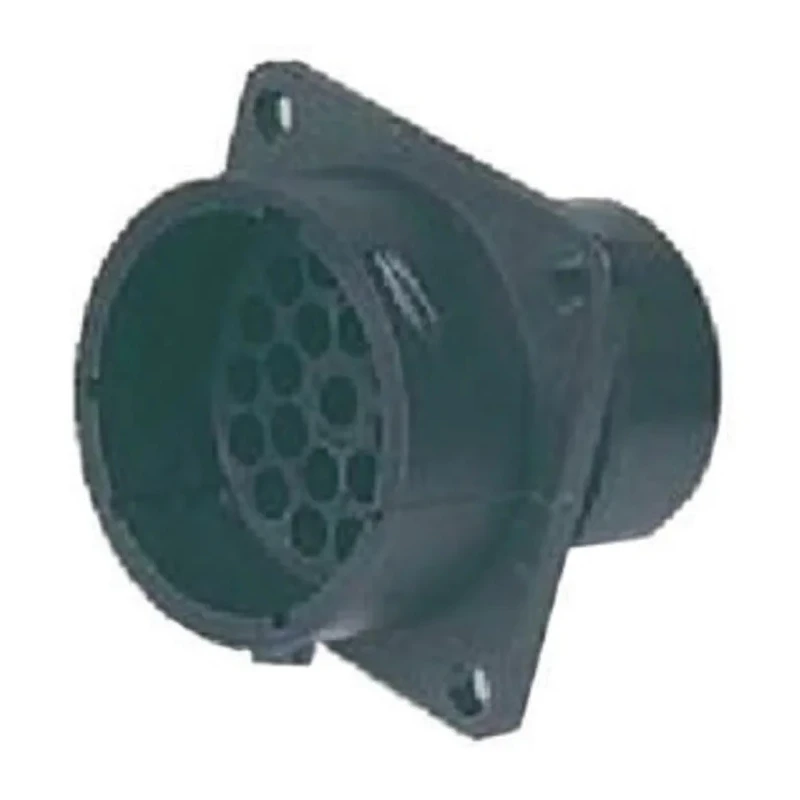

Souriau Sunbank by Eaton MIL Spec Circular Connector Female 19 Contacts Wall Mount IP65 Rated UTP01619S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Model | UTP01619S |
| IP Rating | IP65 |
| Mount Type | Wall Mount |
| Housing Material | Plastic |
| Series | UTP |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | 16 |
| Mating Type | Bayonet |
| Flammability Rating | UL94-V0 |
Key Features
- Shell size 16 for compact connector integration.
- High ingress protection rating of IP65 ensures dust-tight and water-resistant performance.
- Operates reliably in temperature range from -55°C to 125°C.
- Features an easy bayonet mating type with strain relief for secure connection.
- Termination type is crimp ensuring strong electrical contact.
- Constructed from durable plastic housing with UL94-V0 flammability rating.
- Connector orientation is straight, suitable for panel mounted installations.
- No specific standards or approvals indicated but designed to MIL spec quality.
Product Description
The Souriau Sunbank by Eaton UTP01619S is a MIL Spec Circular Connector designed for demanding industrial environments. This connector features a robust full plastic construction with a lightweight glass-filled thermoplastic housing that complies with UL94-V0 flammability standards.
With 19 female contacts and a female connector gender, this wall mount connector is ideal for panel installations where reliability and environmental protection are critical. The shell size 16 allows for compact integration without compromising mechanical strength.
Rated IP65 in mated condition, this connector provides excellent protection against dust and low-pressure water jets, making it suitable for harsh industrial, manufacturing, and electronic systems.
The crimp termination ensures secure and reliable electrical contact, while the bayonet mating type with a metal wave spring provides positive locking with an audible click for secure connections in vibration-prone environments.
The connector operates over a wide temperature range from -55°C to 125°C, supporting applications in extreme conditions commonly found in military, aerospace, and transportation sectors.
The UTP series represents an economical, lightweight, and robust solution for multiway circular connections, delivering high performance in an industrial-grade connector with strain relief features to extend service life.
Shell Size: 16. Number of Contacts: 19. Contact Gender: Female. Connector Gender: Female. Mount Type: Wall Mount. IP Rating: IP65. Mating Type: Bayonet. Minimum Operating Temperature: -55°C. Maximum Operating Temperature: 125°C.
Termination Type: Crimp. Housing Material: Plastic. Flammability Rating: UL94-V0. Strain Relief: Yes.
This connector suits applications including electrical power distribution, aerospace harnesses, military communication equipment, and industrial automation where high connection integrity and environmental resistance are essential.
Explore the extensive range of Mil Spec Circular Connectors available at EnvMart for dependable and specialized electronic connection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has an IP65 rating, providing protection against dust and low-pressure water jets when mated.
It operates reliably within a temperature range from -55°C to 125°C.
This model features 19 female contacts.
The UTP01619S uses crimp termination, ensuring strong electrical contact.
The connector is constructed from plastic with a UL94-V0 flammability rating.
It features a bayonet mating type, which provides positive locking with an audible click for secure connections.
The shell size of this connector is 16, allowing for compact integration.
Yes, it is designed for wall mount installations.
This connector is suitable for applications in electrical power distribution, aerospace harnesses, military communication equipment, and industrial automation.
Yes, it includes strain relief features to extend service life.
The orientation of this connector is straight, making it suitable for panel mounted installations.
The connector is manufactured in India.
