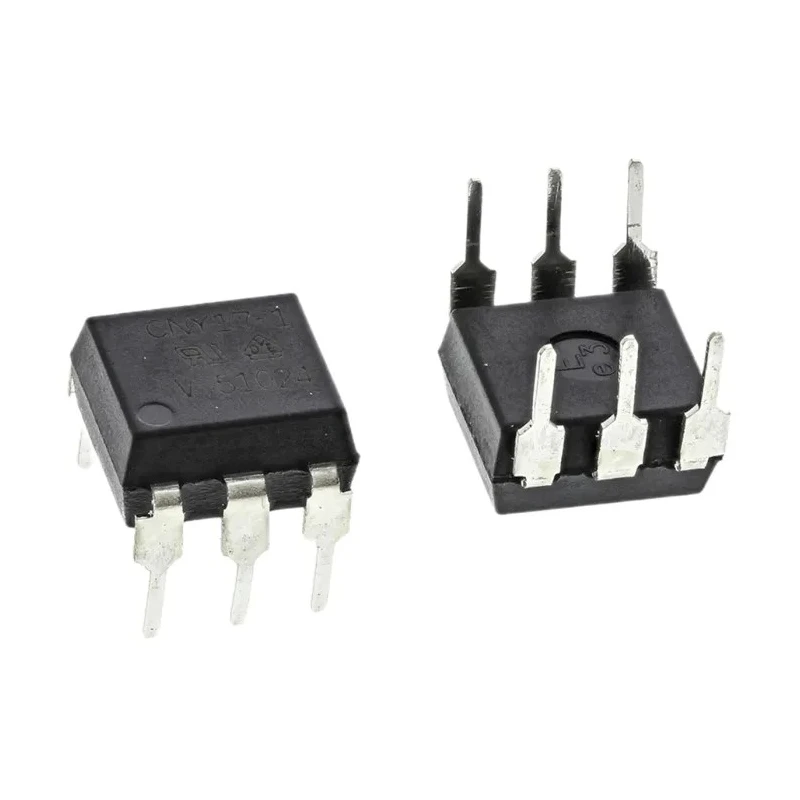

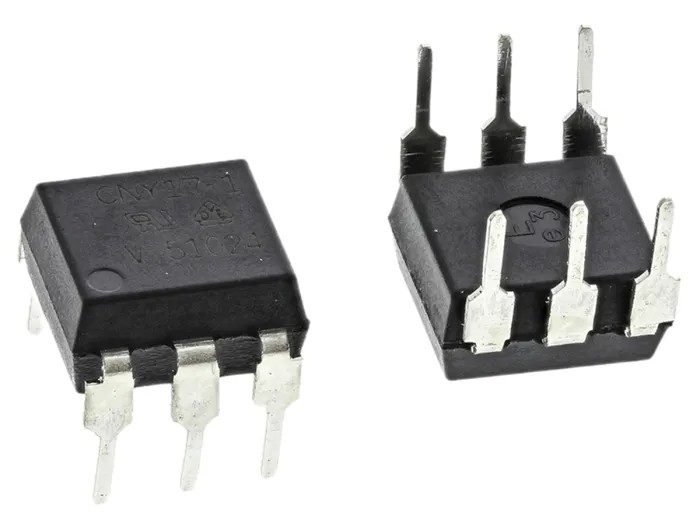

Vishay DC Input Transistor Optocoupler Through Hole 6-Pin PDIP CNY17-1

Vishay CNY17-1 is a DC input optocoupler featuring a transistor output designed for through-hole mounting. Packaged in a 6-pin PDIP, it is engineered for precise isolation of signals between input and output circuits, commonly used in electronic applications requiring electrical isolation.

The device supports a maximum forward voltage of 1.65V on the input LED with a maximum input current rating of 60mA. It delivers excellent switching performance with a typical rise time of 2 microseconds and a fall time of 11 microseconds, making it suitable for various signal processing tasks.

Operating temperature ranges from -55°C to 100°C allow for robust performance in harsh environments. The current transfer ratio ranges from 0.4% minimum to 80% maximum, enabling efficient signal transfer while maintaining electrical isolation.

Compliant with UL, IEC, EN, and CSA standards, the CNY17-1 assures quality and safety in its applications. This Optocoupler is ideal for industrial, electronic control systems, telecommunications, and power supply isolation tasks.

Maximum forward voltage of 1.65V ensures LED protection and reliability. Maximum input current of 60mA supports varied input power requirements. Temperature tolerance from -55°C to 100°C suits industrial environments. Current transfer ratio range enables versatile signal isolation.

Standard 6-pin PDIP package simplifies PCB through-hole mounting. Conforms to multiple international safety and quality standards. Explore the range of Vishay semiconductors and optoelectronics at EnvMart for reliable electronic component solutions.
