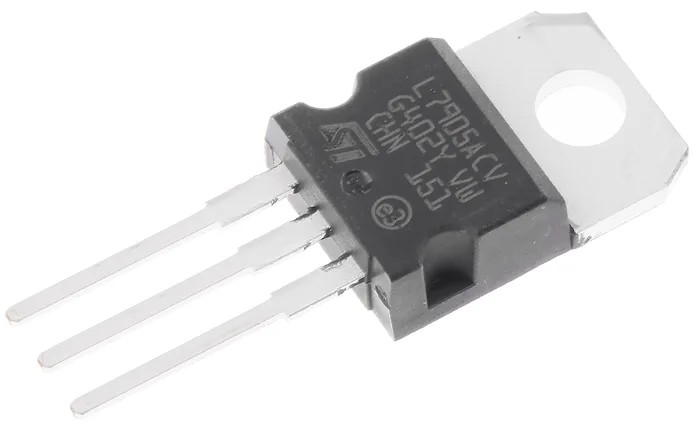

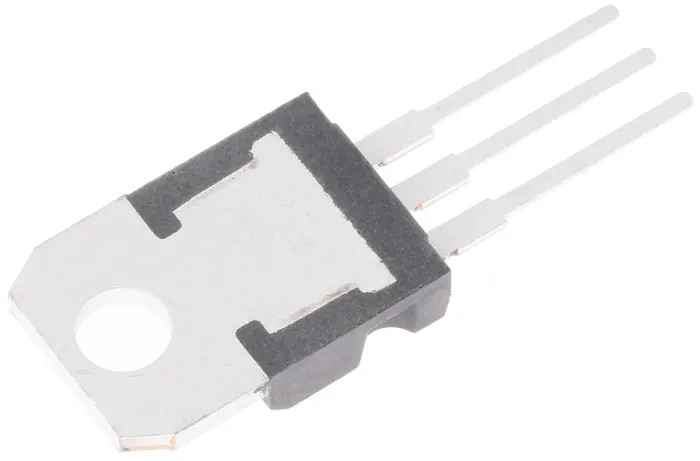

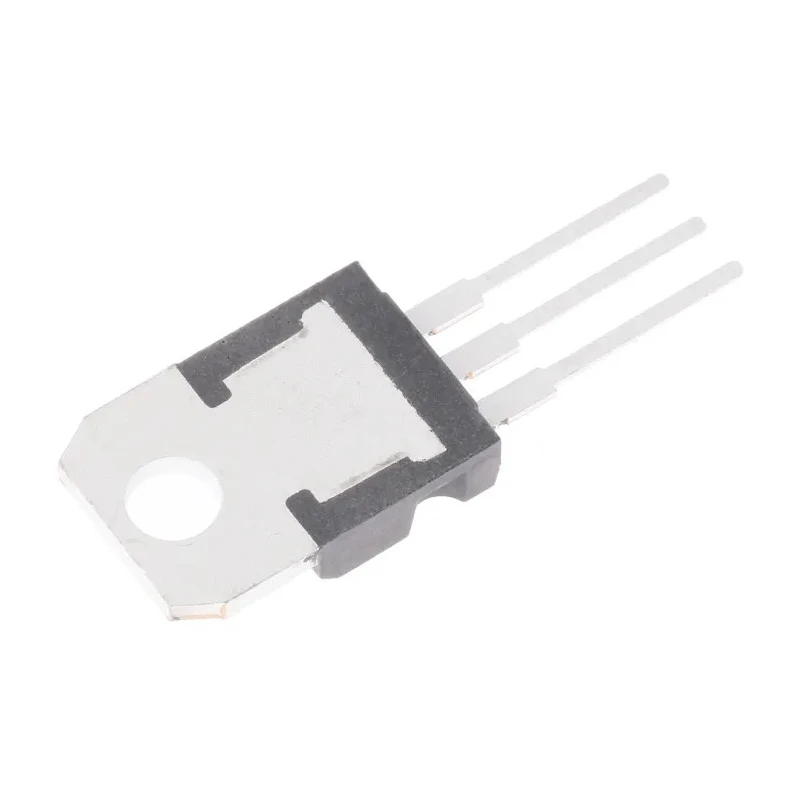

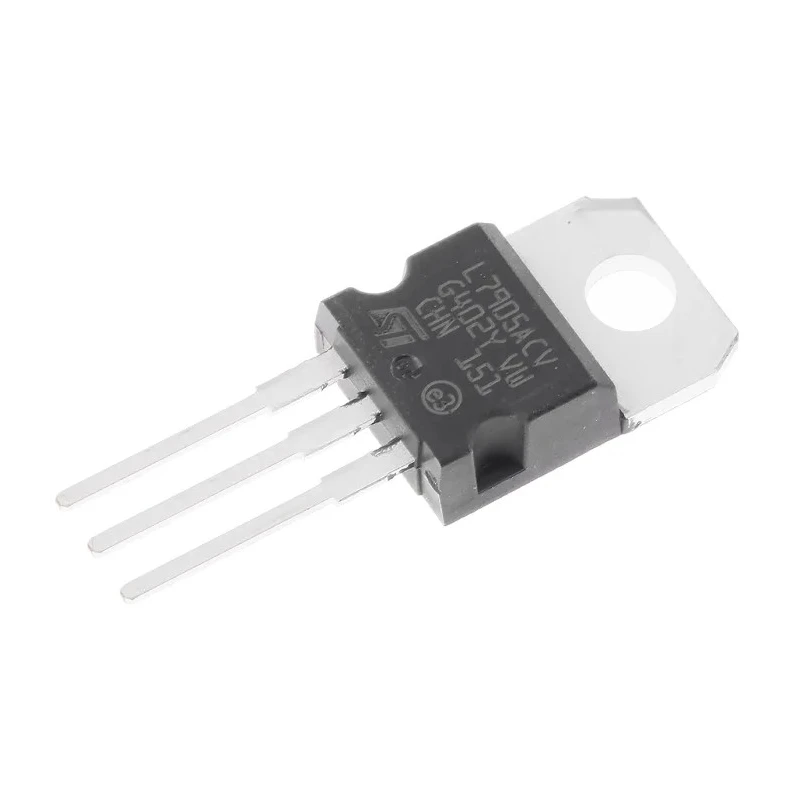

STMicroelectronics Negative Linear Voltage Regulator 3-Pin TO-220 Package -35V Maximum Input Voltage L7905ACV

STMicroelectronics L7905ACV is a negative linear voltage regulator in a compact 3-pin TO-220 package that offers stable and reliable voltage regulation for electronic power management. It supports a maximum input voltage of -35V and features integrated short circuit and thermal overload protection, ensuring safety and durability in various industrial and commercial electronic applications.

This voltage regulator is designed for through-hole mounting with a low quiescent current of 3mA, making it energy efficient for continuous operation. It operates effectively up to a maximum temperature of 125°C, suitable for demanding environments.

The precise physical dimensions - length of 10.4mm, width of 4.6mm, and height of 9.15mm - allow compact design integration. The device’s three pins simplify installation and connection in switching and power regulation circuits. It belongs to the L79xx series renowned for stable negative voltage regulation performance.

Typical use cases include power regulation in industrial electronics, semiconductor devices, and embedded systems requiring negative voltage supplies. It is commonly employed in laboratory instruments, HVAC controls, manufacturing systems, and other electronic component assemblies.

Provides robust negative voltage regulation with reliable performance. Equipped with short circuit and thermal overload protection for safety. Compact TO-220 package facilitates through-hole mounting in electronic circuits.

Operates efficiently with a quiescent current of 3mA reducing power consumption. Suitable for applications requiring a maximum operating temperature up to 125°C. Features a pin count of 3 for simplified connectivity. Length, width, and height dimensions are 10.4mm, 4.6mm, and 9.15mm respectively.

Ideal for use in power management and voltage regulation within electronic assemblies. Discover more Voltage Regulators and power management ICs from STMicroelectronics and other trusted brands at EnvMart, your partner in quality electronic components.
