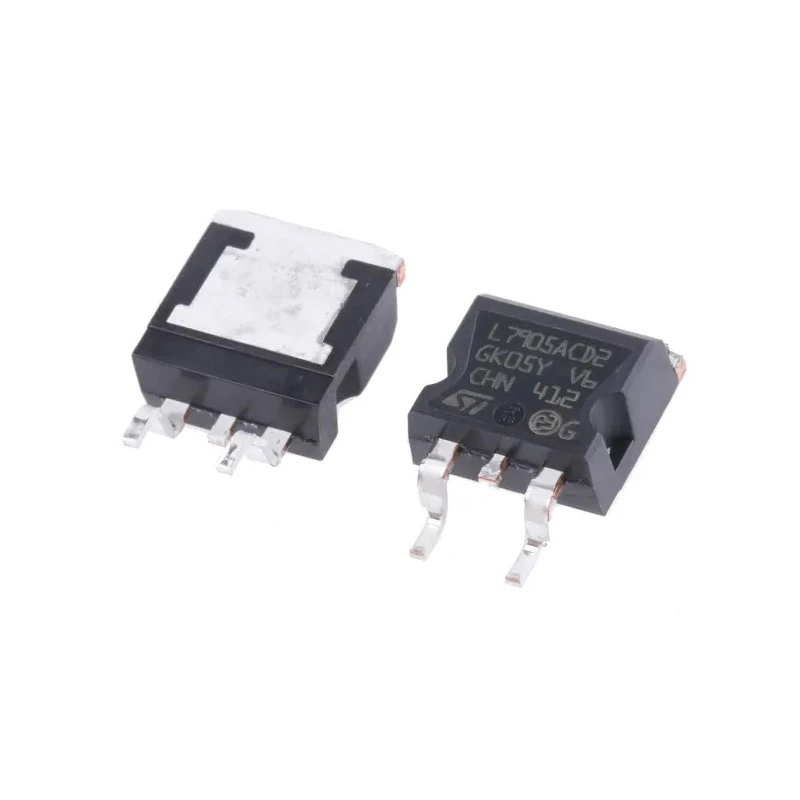

STMicroelectronics Negative Linear Voltage Regulator Surface Mount -35V 3-Pin L7905ACD2T-TR

STMicroelectronics L7905ACD2T-TR is a negative linear voltage regulator designed for surface mounting. It features a 3-pin configuration optimized for stable negative voltage output at a maximum input voltage of -35V. The device ensures reliable operation with built-in short circuit and thermal overload protection, meeting the needs of diverse electronic circuits requiring precise power management.

This regulator draws a low quiescent current of 3mA which contributes to enhanced efficiency and reduced power loss in sensitive applications. The compact package measuring 10.4mm in length, 9.35mm in width, and 4.6mm in height fits well in space-constrained PCB designs.

Operating safely up to 125°C, the L7905ACD2T-TR can be deployed in industrial, consumer electronics, and other commercial electronic devices needing a stable negative voltage supply. Its surface mount design facilitates automated PCB assembly, improving production efficiency.

This product is part of the L79xx series renowned for stable linear voltage regulation with negative polarity. It does not include automotive certifications but maintains high operational standards for various power management IC applications.

Maximum input voltage of -35V supports a wide voltage range. 3mA quiescent current ensures low power consumption. Dimensions of 10.4mm x 9.35mm x 4.6mm suit compact designs. Includes short circuit and thermal overload protection for safety.

125°C maximum operating temperature for robust performance. Surface mount 3-pin package compatible with automated assembly lines.

This voltage regulator is ideal for applications in industrial control systems, consumer electronic devices, and other environments where precise negative voltage regulation is critical. Explore the Electronics & Electricals category for more power management IC solutions and quality Voltage Regulators at EnvMart.
