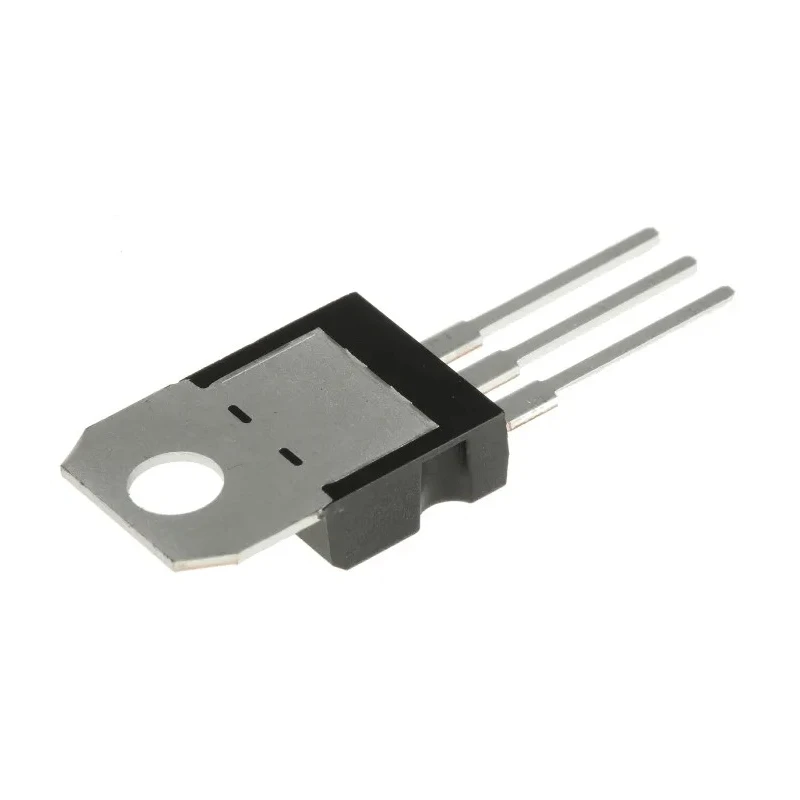

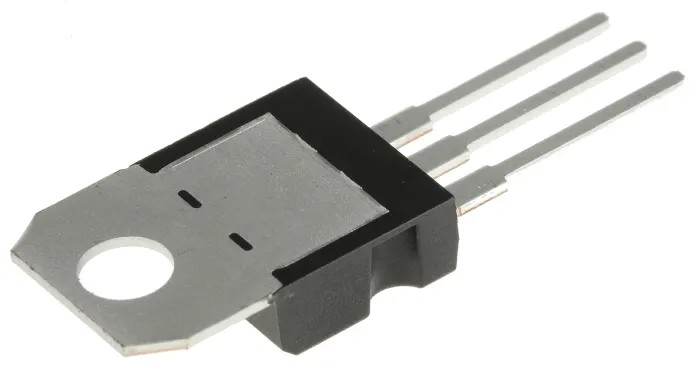

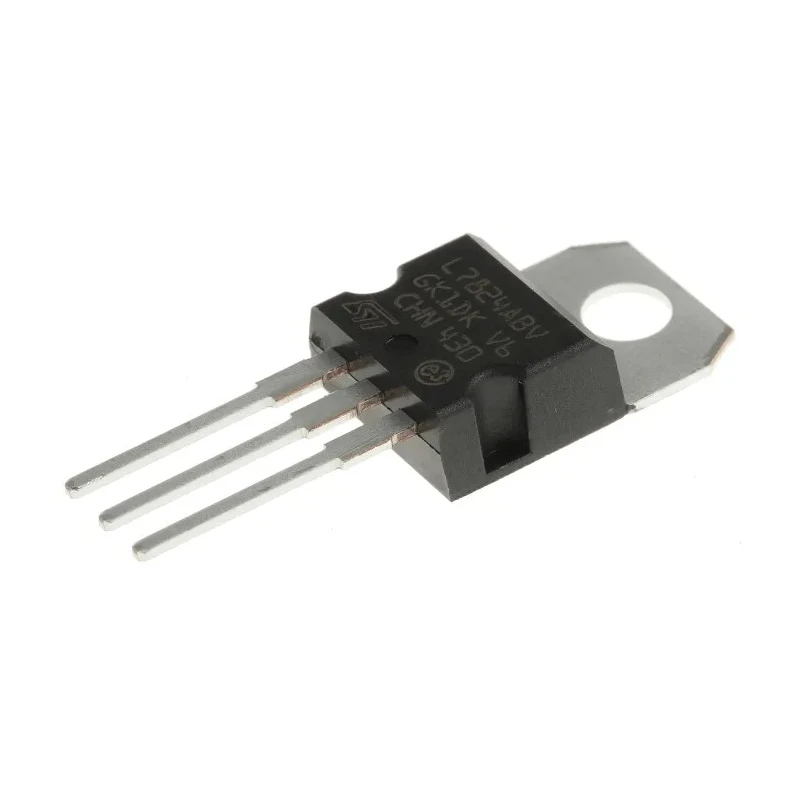

STMicroelectronics Linear Voltage Regulator TO-220 3-Pin 40V Input 1.5A Output L7824ABV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 40V TO-220 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | L7824ABV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | L78xx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 4.6mA |
| Pin Count | 3 |
Key Features
- Provides stable fixed output voltage for electronic applications.
- Supports maximum output current of 1.5A ensuring robust power delivery.
- Includes thermal overload and safe area protection for device reliability.
- Features low quiescent current of 4.6 mA for efficient operation.
- Suitable for through-hole mounting with TO-220 package format.
- Operates at a maximum temperature of 125°C ensuring wide thermal tolerance.
- Compatible with various power management applications in electronics industry.
- Positive polarity regulator assuring consistent voltage regulation.
Product Description
STMicroelectronics L7824ABV is a fixed voltage linear regulator in a TO-220 3-pin package. It operates with a maximum input voltage of 40V and delivers a stable regulated output voltage with a maximum output current of up to 1.5A. The device is designed with internal thermal shutdown and current limiting which provide safe area protection enhancing reliability and lifespan of electronic equipment.
This regulator features a low quiescent current of 4.6 mA, making it energy efficient while maintaining excellent voltage regulation. Its through-hole mounting type makes it suitable for traditional PCB assembly and prototyping.
The device measures approximately 10.4 mm in length, 9.15 mm in height, and 4.6 mm in width, packaged in the well-known TO-220 form factor. It supports wide thermal operating conditions up to 125°C, making it ideal for various power management roles in industrial, commercial, and consumer electronics.
Applications of the L7824ABV include regulated power supply circuits, on-card regulation to solve single-point regulation problems, and use in electronic circuits requiring fixed positive voltage supply. The robust design supports operation in demanding conditions ensuring stable and reliable regulation.
Provides stable fixed output voltage for electronic applications. Supports maximum output current of 1.5A ensuring robust power delivery. Includes thermal overload and safe area protection for device reliability. Features low quiescent current of 4.6 mA for efficient operation.
Suitable for through-hole mounting with TO-220 package format. Operates at a maximum temperature of 125°C ensuring wide thermal tolerance. Compatible with various power management applications in electronics industry. Positive polarity regulator assuring consistent voltage regulation.
Explore more power management ICs and Voltage Regulators from STMicroelectronics on EnvMart for industrial and electronic system design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L7824ABV supports a maximum output current of 1.5A, ensuring robust power delivery for various applications.
This model can operate with a maximum input voltage of 40V, making it suitable for a range of power management applications.
The L7824ABV features a low quiescent current of 4.6 mA, contributing to its energy-efficient operation.
The L7824ABV is packaged in a TO-220 format, which is suitable for through-hole mounting.
This model measures approximately 10.4 mm in length, 9.15 mm in height, and 4.6 mm in width.
The L7824ABV operates at a maximum temperature of 125°C, allowing for wide thermal tolerance in various environments.
This voltage regulator is a positive polarity regulator, ensuring consistent voltage regulation for electronic applications.
It is suitable for regulated power supply circuits, on-card regulation, and electronic circuits requiring a fixed positive voltage supply.
Yes, it includes thermal overload and safe area protection, enhancing reliability and lifespan of electronic equipment.
This voltage regulator has a total of 3 pins, which is typical for its TO-220 package format.
The L7824ABV is part of the L78xx series of voltage regulators, known for their fixed output voltage capabilities.
The L7824ABV is manufactured in India.
