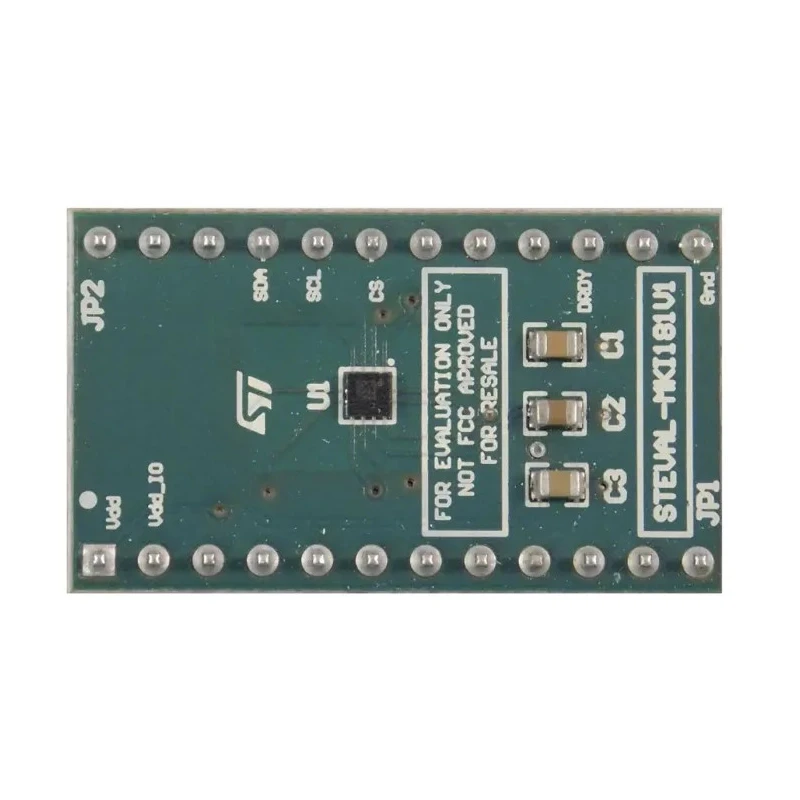

STMicroelectronics LIS2MDL DIL24 Socket MEMS Based Piezoresistive Pressure Sensor Adapter Board STEVAL-MKI181V1

STMicroelectronics STEVAL-MKI181V1 is a sensor development tool designed as an adapter board for the LIS2MDL MEMS based piezoresistive pressure sensor family. It provides a robust and convenient platform to facilitate evaluation and prototyping directly within user applications.

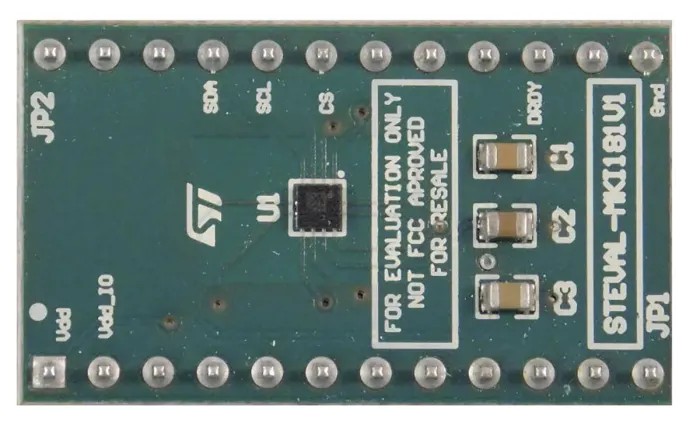

This adapter board plugs into a standard DIL24 socket and offers the complete LIS2MDL pinout. It includes required decoupling capacitors on the VDD power line to ensure stable operation and signal integrity.

Fully compatible with STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards, the STEVAL-MKI181V1 allows seamless sensor interfacing and communication with a high-performance 32-bit microcontroller. This microcontroller acts as a bridge between the sensor and a PC, enabling use of downloadable graphical user interface software (Unico GUI) and customized application development.

The adapter board is ideal for rapid system prototyping and comprehensive device evaluation in industrial, laboratory, and embedded systems development environments. Its standardized socket form factor simplifies integration and testing workflows.

The board fits into a standard DIL24 socket for easy prototyping. Complete LIS2MDL sensor pinout is available on the board. Compatible with STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards for data acquisition and interface.

Equipped with decoupling capacitors ensuring stable power supply. Supports rapid development and testing of MEMS piezoresistive pressure sensing applications. RoHS compliant design suitable for industrial and educational sensor development.

This product belongs to Sensor Development Tools for electronics professionals working in areas such as embedded system prototyping, industrial instrumentation, and automated pressure sensing.
