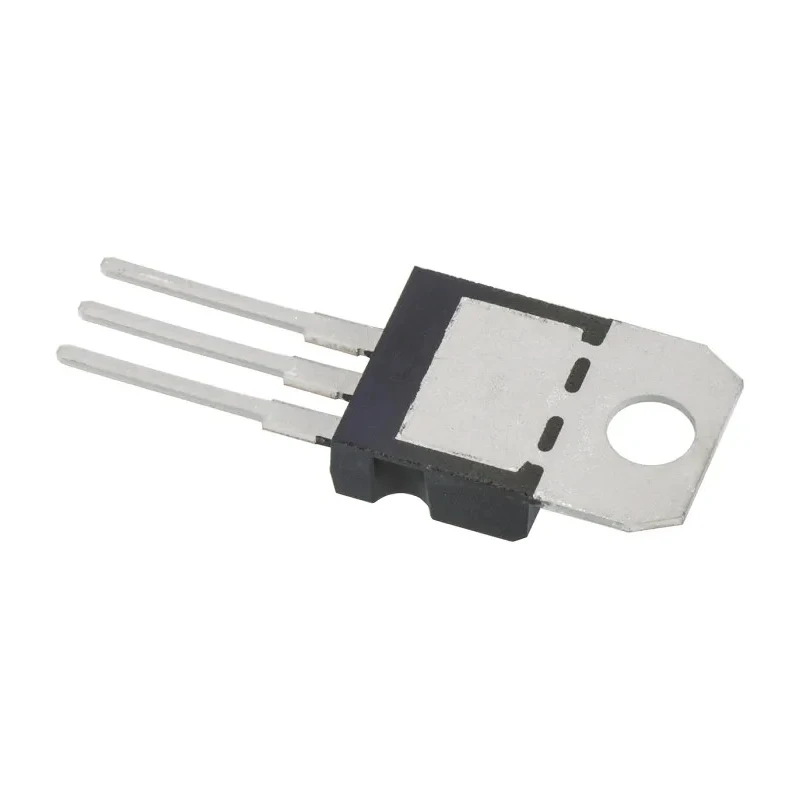

STMicroelectronics 5-Channel Linear Voltage Regulator, 2 A Output Current, 7.5 V, TO-220 3-Pin L78S75CV
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | L78S75CV |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | L78Sxx |
| Output Current | 2A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Load Regulation | 140 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 7.5V |
| Quiescent Current | 8mA |
| Line Regulation | 120 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.5V |
| Pin Count | 3 |
Key Features
- This linear voltage regulator supports five output channels ideal for multiple voltage regulation requirements.
- The device features a TO-220 through-hole package with three pins for easy mounting and connectivity.
- It includes built-in thermal shutdown and short circuit protection ensuring device safety under varying conditions.
- Designed for positive polarity operation with a quiescent current of 8 mA for energy efficiency.
- Operates across a wide input voltage range from 10.5 V to 35 V, with a maximum operating temperature of 150°C.
- Performance specifications include 120 mV line regulation and 140 mV load regulation for stable output.
- Ideal for industrial, electronic components, power management, and embedded system applications requiring precise voltage regulation.
- This regulator complies with RoHS standards, confirming its environmental compliance.
Product Description
STMicroelectronics L78S75CV is a 5-Channel Linear Voltage Regulator designed for fixed positive voltage regulation with up to 2 A output current and a fixed output voltage of 7.5 V. It comes in a TO-220 3-pin package ideal for through-hole mounting applications.
This regulator integrates essential protection features such as thermal shutdown, internal current limiting, and short circuit protection to ensure device reliability in demanding industrial and consumer electronic environments.
The device supports a broad input voltage range of 10.5 V to 35 V and operates efficiently with a low quiescent current of 8 mA. It delivers exceptional regulation performance with 120 mV line regulation and 140 mV load regulation, maintaining stable outputs under varying load and input conditions.
The compact dimensions of 10.4 mm length, 9.15 mm height, and 4.6 mm width in the TO-220 package make it suitable for space-constrained PCB designs.
This Voltage Regulator is suitable for use in power management IC applications, embedded systems, industrial automation, and other electronics that require precise fixed voltage supply.
This linear regulator supports five output channels for multi-output voltage regulation. Features thermal, short circuit, and safe operating area protections for robust performance. Provides fixed 7.5 V output voltage at up to 2 amp output current.
Complies with RoHS standards ensuring reduced hazardous material use. Mounts easily with TO-220 through-hole three-pin configuration. Wide operating temperature range from 0°C to 150°C suits harsh environments. Positive polarity device with low quiescent current improves power efficiency.
Ideal for industrial and electronic component applications requiring stable linear voltage regulation. Explore more power management ICs and semiconductor components at EnvMart to meet your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver an output current of up to 2 A.
It provides a fixed output voltage of 7.5 V.
The device operates within a wide input voltage range of 10.5 V to 35 V.
The dimensions are 10.4 mm in length, 9.15 mm in height, and 4.6 mm in width.
It includes thermal shutdown, internal current limiting, and short circuit protection.
The quiescent current for this regulator is 8 mA.
The maximum operating temperature is 150°C.
This linear voltage regulator supports five output channels.
It has a line regulation of 120 mV.
The load regulation is specified at 140 mV.
Yes, it complies with RoHS standards, confirming its environmental compliance.
It is designed for through-hole mounting applications.
