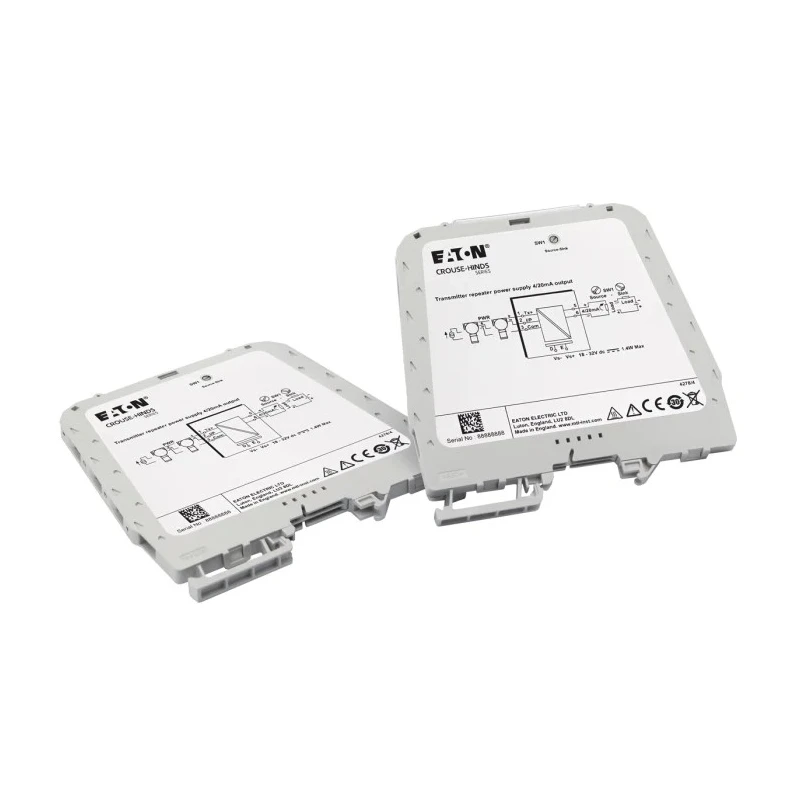

Eaton MTL Series Single Channel Signal Conditioner Current/Voltage Input and Output, 18V dc, 32 V dc Supply MTL1249
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | Input, Current/Voltage Output, 18V dc, 32 V dc Supply RS Stock No |
| Brand | Eaton |
| Model | MTL1249 |
| Mount Type | DIN Rail |
| Series | MTL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Output Range | 0 → 10 V, 0 → 20 mA, 0 → 5 V, 1 → 5 V, 2 → 10 V, 4 → 20 mA |
| Input Range | 0 → 1 V, 0 → 10 V, 0 → 100 mV, 0 → 2 mA, 0 → 5 V, 1 → 5 V, 4 → 20 mA |
| Supply Voltage | 18, 32V dc |
| Input Signal Type | Current/Voltage |
| Standards/Approvals | RoHS |
| Signal Conditioner Type | Single Channel Signal Conditioner |
Key Features
- Accepts multiple input ranges including voltage and current signals.
- Outputs selectable voltage or current signal ranges for versatile control.
- Powered via DIN Rail bus for simplified installation and wiring.
- Operates reliably in temperatures from -20°C to 60°C suitable for industrial environments.
- Features screw terminal connections ensuring secure and stable wiring.
- Provides high transfer accuracy of 0.2% for precise signal conditioning.
- Offers isolation between power, field, and system circuits enhancing electrical safety.
- Compact DIN Rail mounting allows efficient installation in control panels.
Product Description
Eaton MTL1249 is a single channel signal conditioner suitable for converting analogue current and voltage input signals into precise output signals in industrial process control, instrumentation, and testing applications. It supports multiple input ranges such as 0 to 1 V, 0 to 10 V, 0 to 100 mV, 0 to 2 mA, 0 to 5 V, 1 to 5 V, and 4 to 20 mA, with selectable output ranges including 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 2 to 10 V, and 4 to 20 mA. The unit is powered by a DC supply voltage from 18 V to 32 V, supplied via the DIN Rail power bus, which reduces wiring complexity.
Designed for robust industrial environments, it operates over a wide temperature range from -20°C to 60°C and features screw terminal connections for secure wiring. Its high transfer accuracy of 0.2% ensures precise signal conditioning for control systems and instrumentation. Electrical isolation is provided between power, field, and system circuits to ensure user and device safety.
The compact DIN Rail mountable design allows for easy integration into electrical cabinets and control panels. Eaton MTL1249 is RoHS compliant and constructed with quality standards originating from the United Kingdom.
Supports current and voltage input signal types. Multiple selectable input and output signal ranges. Powered via embedded DIN Rail power bus (18-32V dc supply). Screw type terminals for reliable connections. Wide operating temperature range: -20°C to 60°C.
High transfer accuracy of 0.2% for signal precision. Isolation between circuits enhances safety. Single channel configuration for efficient signal conditioning. RoHS compliant ensuring environmental standards compliance.
Compact DIN Rail mounting suitable for industrial panels.
This signal conditioner is ideal for industrial automation, electrical and electronic control systems, HVAC instrumentation, manufacturing process control, and laboratory equipment requiring reliable analogue signal conditioning. Eaton's MTL series products offer trusted performance and quality in signal conditioning solutions.
Explore more Signal Conditioners and related industrial control products on EnvMart to enhance your system efficiency and safety standards.
