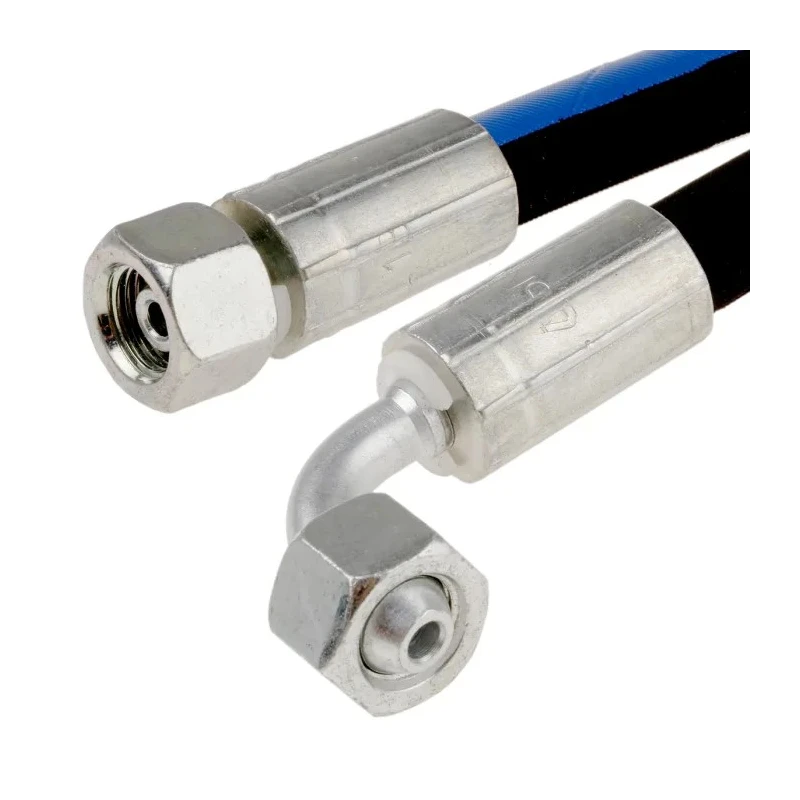

RS PRO 562mm Synthetic Rubber Hydraulic Hose Assembly, 400 bar Max Pressure 110-2206

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 562mm Synthetic Rubber Hydraulic Hose Assembly, 400 bar Max Pressure 110-2206

Name: RS PRO 562mm Synthetic Rubber Hydraulic Hose Assembly, 400 bar Max Pressure 110-2206
Brand: RS PRO
SKU: 184099
Price: 34.68 USD
Availability: InStock



Category Hydraulic Hose Assembly Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Maximum Operating Pressure	400 bar
Model	110-2206
Cover Material	Synthetic Rubber
Overall Length	562mm
Maximum Operating Temperature	100°C
Inside Diameter	6.35mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Connection Size A	1/4 in
Connection Standard A	G
Connection Gender A	Female
Connection Type A	Threaded
Inner Hose Material	Synthetic Rubber
Reinforcing Material	Steel
Parker 607mm Synthetic Rubber Hydraulic Hose Assembly, 400 bar Max PressureBrand	Parker

Key Features

The hose features a synthetic rubber inner tube and outer cover for durability.
Steel wire reinforcement provides high tensile strength for medium-pressure service.
Both ends have threaded female connections of 1/4 inch size, conforming to connection standard G.
Suitable for operating temperatures ranging from -40°C to 100°C.
RoHS certified and manufactured in Italy, ensuring quality and compliance.
Applications include hydraulic fluids such as petroleum-based oils, lubricants, water-glycol, and air and water lines.
Contains zinc plated mild steel fittings with crimped ends for secure connections.
Not suitable for use with high-pressure hydraulic cylinders or pumps exceeding 400 bar.

Product Description

RS PRO 110-2206 Hydraulic Hose Assembly is a 562mm synthetic rubber hose designed for medium pressure hydraulic applications with a maximum operating pressure of 400 bar. Constructed with a synthetic rubber inner tube and outer cover, it provides excellent flexibility and durability in demanding industrial environments.

The hose is reinforced with high tensile steel wire to ensure structural integrity under pressure, making it well suited for hydraulic fluids including petroleum-based hydraulic fluids, mineral oils, lubricating oils, water-glycol mixtures, and water-oil emulsions. Both ends feature threaded female connections of 1/4 inch size adhering to connection standard G, facilitating reliable and leak-proof connections.

Operating temperature range from -40°C to 100°C allows use in diverse climates and applications. The zinc plated mild steel fittings with crimped ends improve resistance against corrosion and wear, enhancing the hose assembly's longevity.

This hose assembly is RoHS certified and manufactured in Italy, reflecting high standards of quality and environmental compliance. It is ideal for industrial, hydraulic, pneumatic, construction, and manufacturing use cases but is not suitable for use with high-pressure hydraulic cylinders or pumps with working pressures up to 700 bar.

The hose's synthetic rubber materials and steel reinforcement provide strength and flexibility. Threaded female connections ensure compatibility with standard fittings. Suitable for a wide range of hydraulic fluids and temperature conditions.

High-quality zinc plated mild steel fittings resist corrosion. Designed for medium-pressure hydraulic service up to 400 bar. RoHS compliant for environmental safety. Manufactured in Italy, ensuring consistent quality control.
