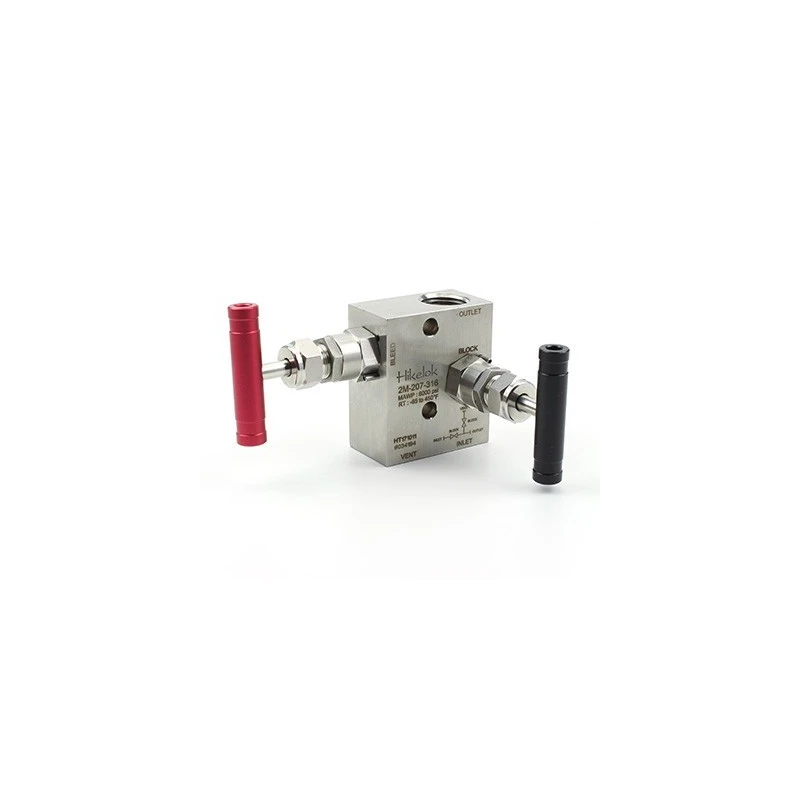

2 Valve Manifolds-Instrumentation Manifolds Orifice Size 0.157 in.(4.0 mm), 2M-207
Specifications
| Applications | Industrial |
|---|---|
| Working Temperature | PTFE packing from -65 Degree F to 450 Degree F (-54 Degree C to 232 Degree C) Graphite packing from -65 Degree F to 1200 Degree F(-54 Degree C to 649 Degree C) |
| Maximum Pressure | Stainless steel up to 6000 psig (413 bar) Alloy C-276 up to 6000 psig (413 bar) Alloy 400 up to 5000 psig (345 bar) |
| Orifice Size | 0.157 in. (4.0 mm) CV 0.35 |
Key Features
- Testing for every valve with nitrogen at the maximum working pressure
- Upper stem and lower stem design, Stem threads above packing protected from system media
Product Description
2 Valve Manifolds-Instrumentation Manifolds Orifice Size 0.157 in.(4.0 mm), 2M-207 are designed for static pressure and liquid level applications. Its function is to connect pressure gauge with the pressure point. It is generally used in field control instruments to provide multi-channel for instruments, reduce installation work and improve system reliability
- Safety back seating seals in fully open position
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The orifice size of this model is 0.157 in. (4.0 mm) with a CV of 0.35.
PTFE packing can operate from -65°F to 450°F (-54°C to 232°C), while graphite packing can function from -65°F to 1200°F (-54°C to 649°C).
It is designed for industrial applications, specifically for static pressure and liquid level measurements.
This model connects pressure gauges with the pressure point, providing a multi-channel interface for instruments.
It includes safety back seating seals that protect the stem threads from system media when in the fully open position.
It reduces installation work and improves system reliability by providing a centralized connection point for multiple instruments.
The installation requirements are not specified, but it is designed to connect easily with pressure gauges and control instruments.
The manifold is available in stainless steel and various alloys, including Alloy C-276 and Alloy 400.
The upper and lower stem design protects the stem threads above the packing from exposure to system media.
Yes, this model is customizable, and specific requirements or configurations should be confirmed through an enquiry.
The CV rating of the orifice is 0.35, which indicates its flow capacity.
