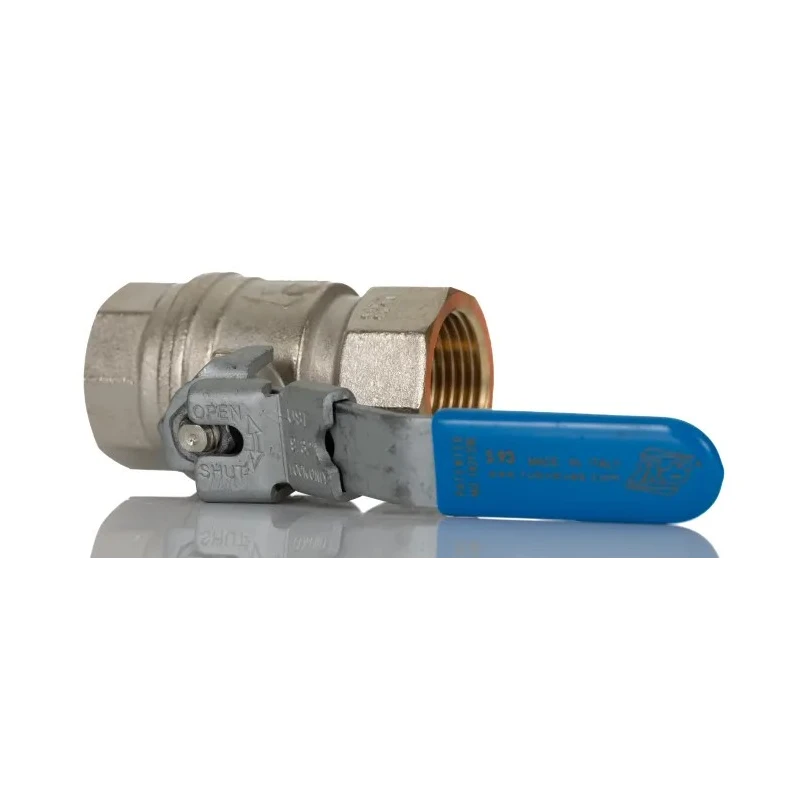

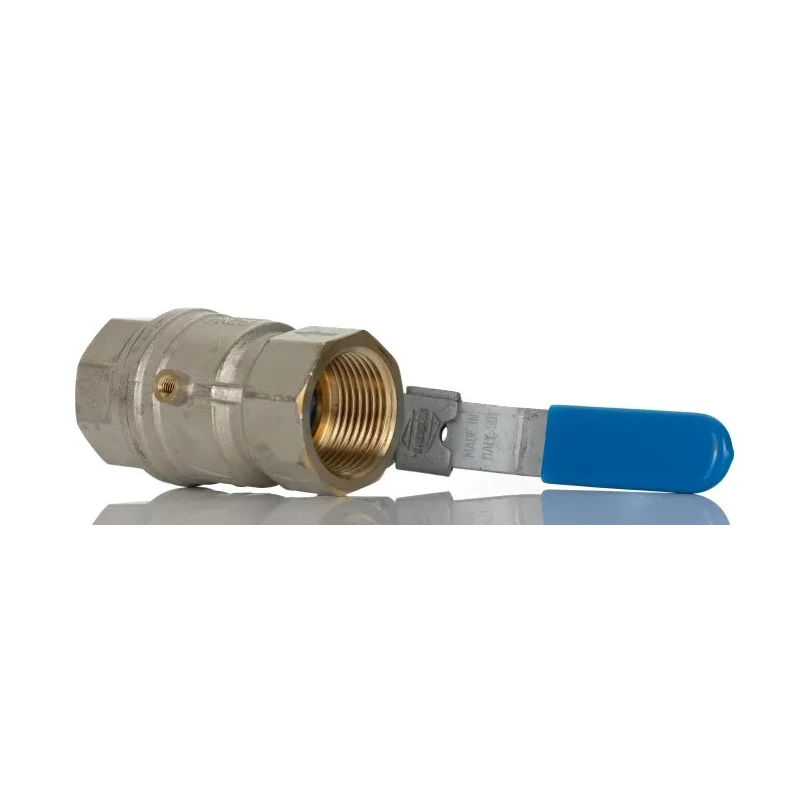

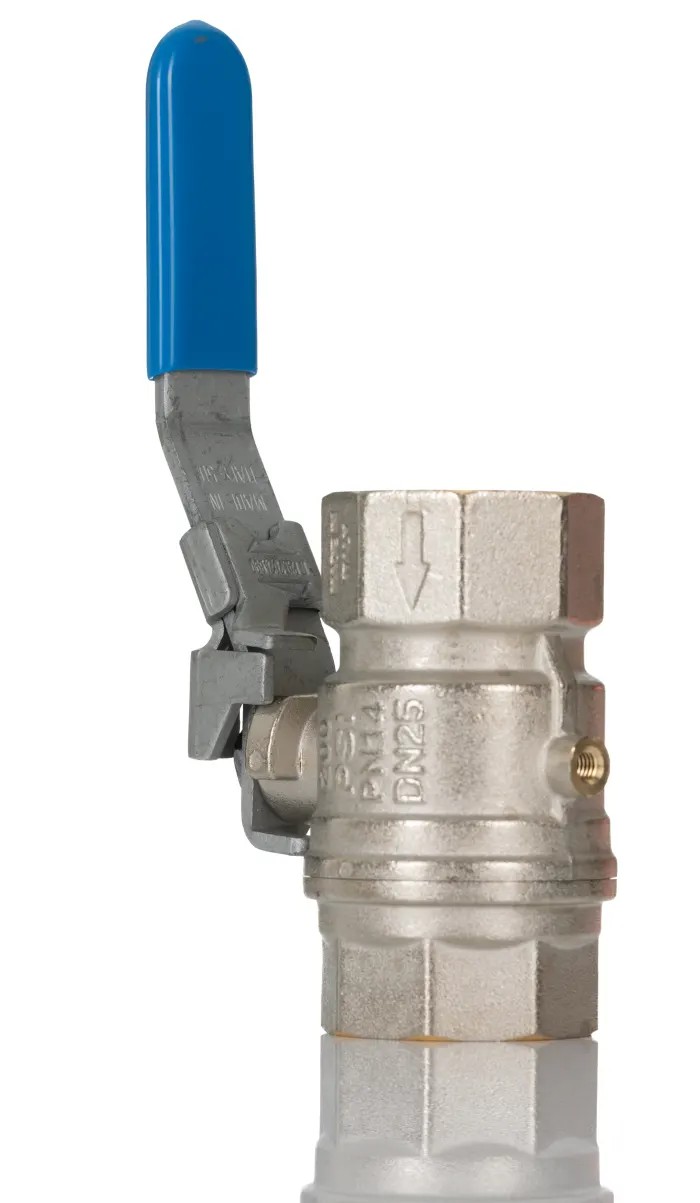

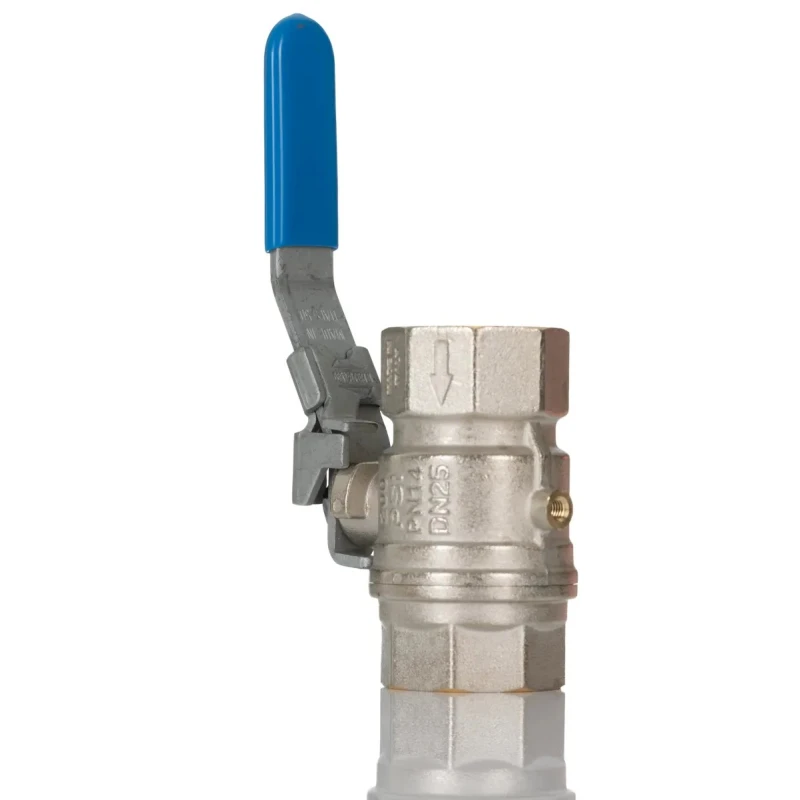

RS PRO Brass Threaded Full Port Ball Valve 1 in BSP 14 bar Max Operating Pressure 100°C 812-5188

RS PRO 812-5188 is a high-quality Brass Threaded Full Port Ball Valve featuring a 1 inch BSP inlet port size and maximum operating pressure of 14 bar. It is designed for reliable industrial fluid control applications requiring precise and secure valve operation.

The valve body is made of hot forged, sandblasted nickel plated brass offering robust resistance to wear and corrosion. A chrome-plated brass ball ensures longevity and smooth operation. The sealing is managed by self-lubricating molybdenum PTFE seals which require no maintenance while providing a tight seal.

The valve incorporates a lockable steel handle with PVC dipping to provide thermal and electrical insulation, improving operator safety. This 1/4 turn valve offers ease of use and prevents accidental activation by locking securely in the closed position. Its dual sealing system permits use in either flow direction, simplifying installation and maintenance.

This ball valve operates effectively across a temperature range from -10°C to 100°C and complies with standards EN 10226-1, ISO 228, DIN 3357, EN 12165, and RoHS. It is engineered for industrial, manufacturing, fluid power, mechanical, and pipeline uses.

With a durable construction and efficient sealing, the RS PRO 812-5188 Brass Ball Valve is suitable for diverse applications requiring robust and dependable fluid control. Constructed with hot forged sandblasted nickel plated brass body for durability.

Chrome plated brass ball provides enhanced corrosion protection and extended service life. Self-lubricating molybdenum PTFE seals deliver tight sealing without maintenance. Steel handle with PVC dip coating for thermal and electrical insulation.

Lockable 1/4 turn operation prevents accidental valve movement. Dual sealing system allows installation in either flow direction for convenience. Suitable for industrial fluid control and pipeline applications. Explore more Industrial Valves and fittings at EnvMart for reliable mechanical and fluid power solutions.
