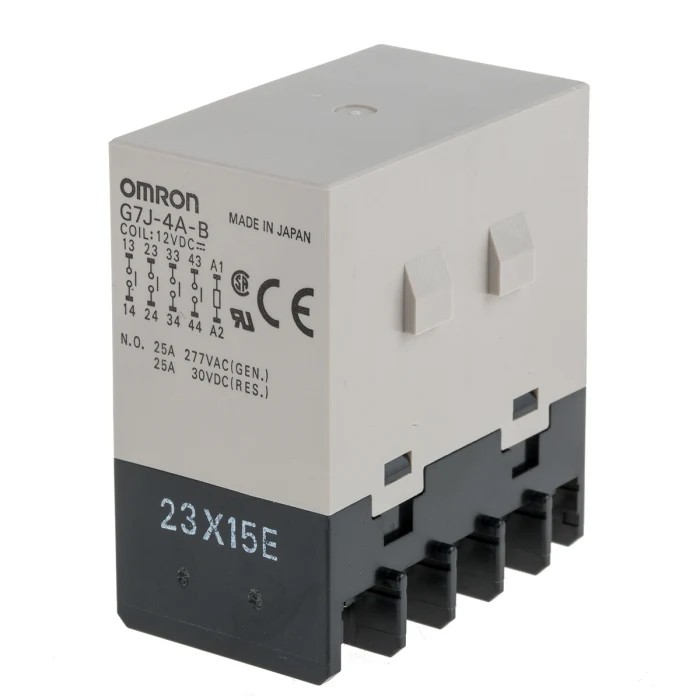

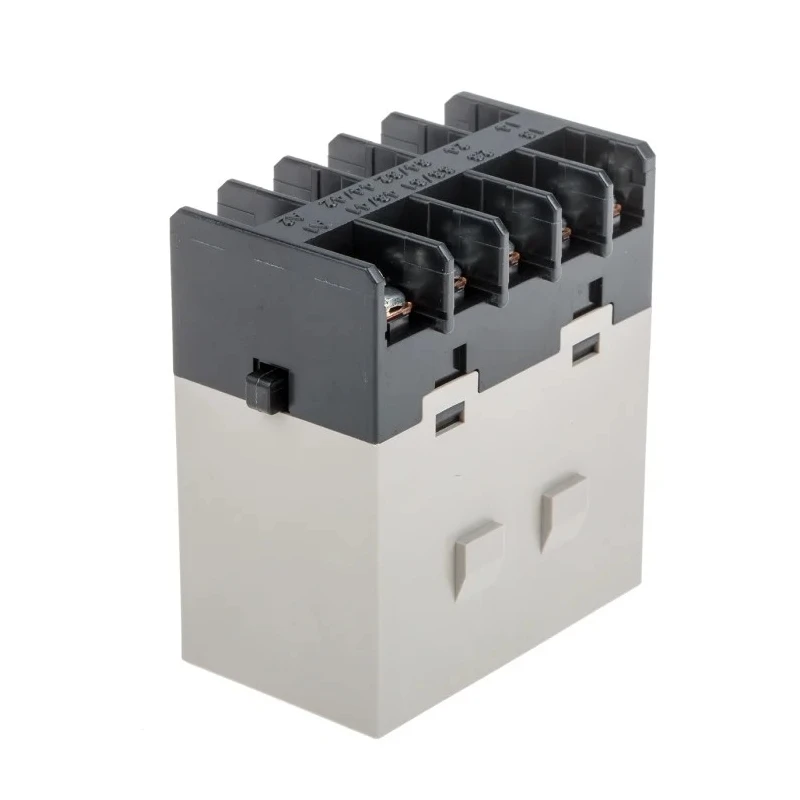

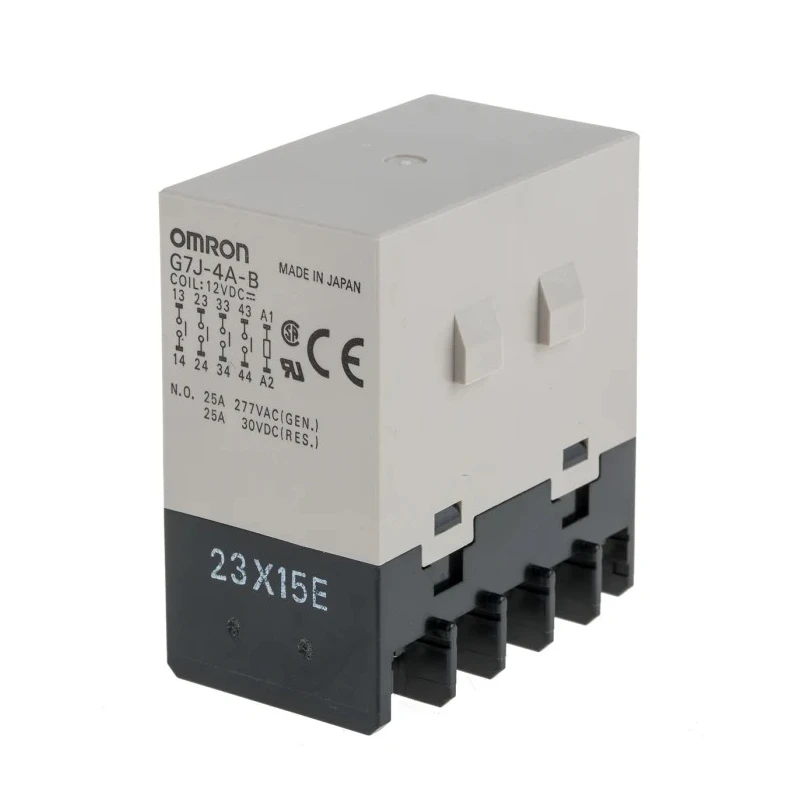

Omron Panel Power Relay 12V DC Coil 25A Switching Current 4PST-NO G7J-4A-B DC12

Omron G7J-4A-B DC12 panel power relay is a compact and reliable electromechanical switching device designed for industrial and automation control panel applications. It features a 12V DC coil voltage and a robust 25A switching current capacity to handle high current AC and DC loads efficiently.

The relay incorporates a 4PST-NO contact configuration enabling simultaneous switching of four normally open circuits, which is ideal for controlling multiple outputs within industrial automation environments. Its screw terminal type mount ensures secure and vibration-resistant electrical connections, enhancing operational reliability.

Constructed with silver alloy contacts, the relay exhibits a low contact resistance of only 100mΩ, minimizing conduction losses and improving performance. It supports switching voltages up to 250V AC and 125V DC, making it versatile for various power control systems.

Designed for panel mounting, the compact dimensions (64mm height, 51.5mm length, 34.5mm width) allow dense installations in control racks and panels. It operates in ambient temperatures ranging from -25°C to 60°C, suitable for diverse industrial environments.

The coil resistance of 72Ω and coil power rating of 2W ensure predictable coil drive characteristics. This product holds UL and CSA certifications, assuring compliance with stringent North American safety standards.

Typical applications include motor starter interlocking, contact grouping, distribution switch control in power racks, and DC load switching in battery-backed systems. It is also suitable for replacement of similar 12V control relays during maintenance tasks.

Supports a coil voltage of 12V DC for efficient control operations. Offers a switching current capacity of 25A suitable for high current loads. Features a 4PST-NO contact setup enabling simultaneous control of four circuits.

Designed for panel mounting with secure screw terminals ensuring vibration resistance. Complies with UL and CSA standards for North American equipment safety. Silver alloy contacts provide low conduction resistance of 100mΩ.

Operates reliably within an ambient temperature range of -25°C to 60°C. Compact dimensions of 64mm height, 51.5mm length, and 34.5mm width facilitate dense panel layouts. Coil power consumption is 2W with a coil resistance of 72Ω assuring predictable drive requirements.

Suitable for switching both AC (250V) and DC (125V) voltages in mixed-voltage environments. Explore the extensive range of Power Relays at EnvMart for reliable industrial automation and electrical control solutions.
