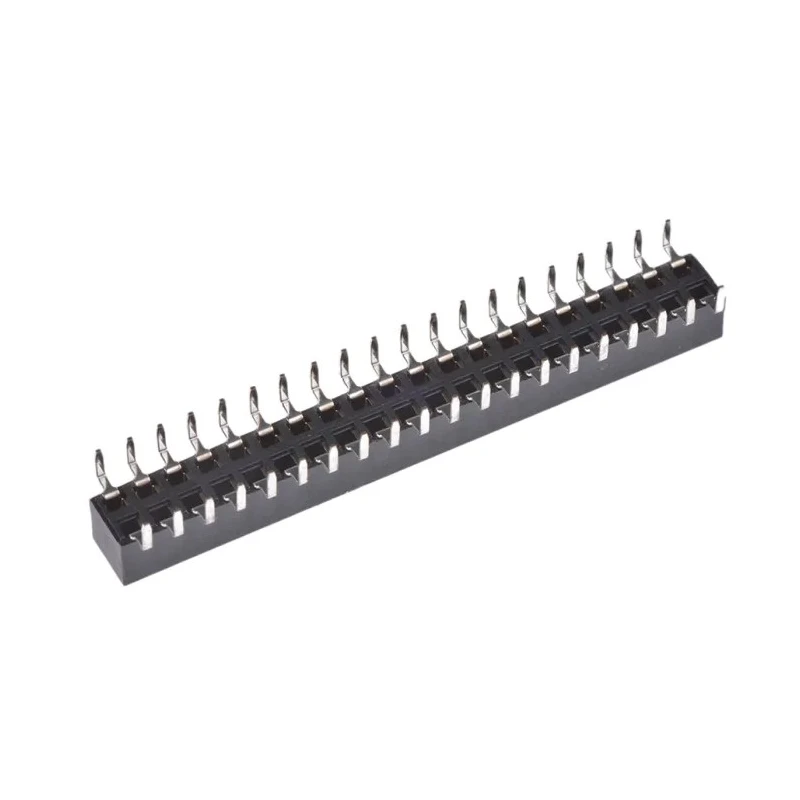

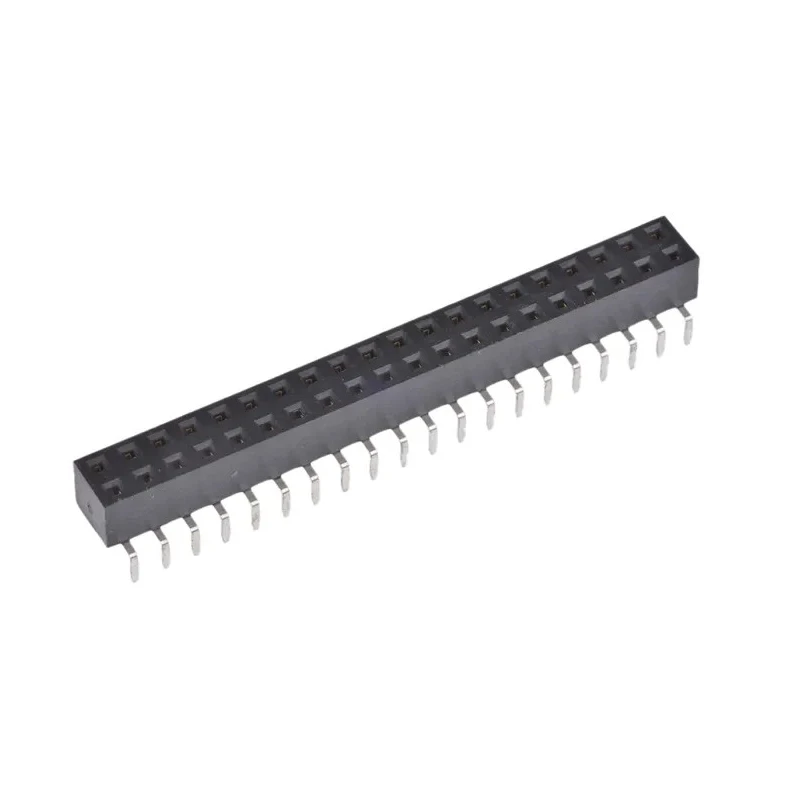

HARWIN 40-Contact 2 Row 2.54 mm Pitch Straight Through Hole PCB Socket M20-7852042

HARWIN M20-7852042 is a high-quality straight through hole PCB socket designed for board-to-board electronic component connections, featuring 40 contacts in a compact 2-row configuration with a 2.54 mm pitch. The socket's housing is made from durable, UL94V-0 rated nylon thermoplastic that withstands high temperature soldering and operational environments from -40°C up to 105°C.

This through hole socket employs dual beam bronze contacts with tin over nickel plating to provide excellent electrical performance, reliability, and resistance to wear over up to 300 mating cycles. The socket is rated for 12 amps per contact, supporting high current applications commonly required in industrial, communications, embedded computing, and consumer electronics systems.

The M20 series socket is engineered to maximize PCB density and height restrictions, making it ideal for motherboards and large electronic systems. Its solder termination and straight orientation facilitate stable board assembly and robust mechanical connection.

Compliant with RoHS standards, this PCB socket is manufactured in Taiwan, Province Of China, and is widely used across industries such as manufacturing, industrial monitoring, personal computing, and control systems.

Compact design optimized for dense PCB layouts. High temperature resistant nylon housing suitable for reflow soldering. Dual beam bronze contacts ensure durable, reliable electrical connections. Supports currents up to 12A per contact for demanding applications.

Through hole mounting with straight orientation for secure installation. Wide operating temperature range from -40°C to 105°C. Designed for board-to-board connector systems. RoHS compliant ensuring environmentally safer manufacturing.
