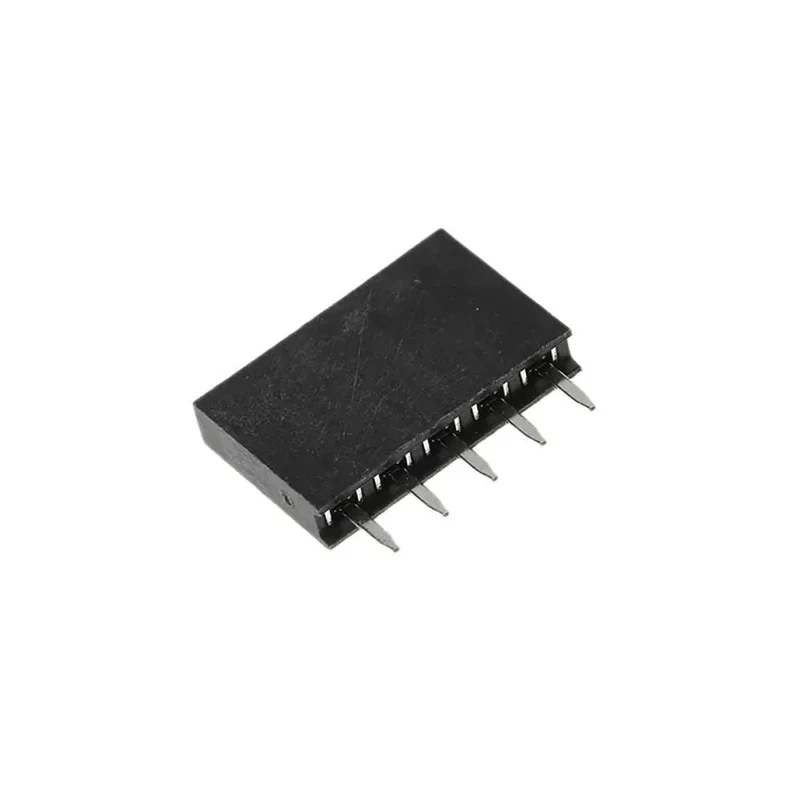

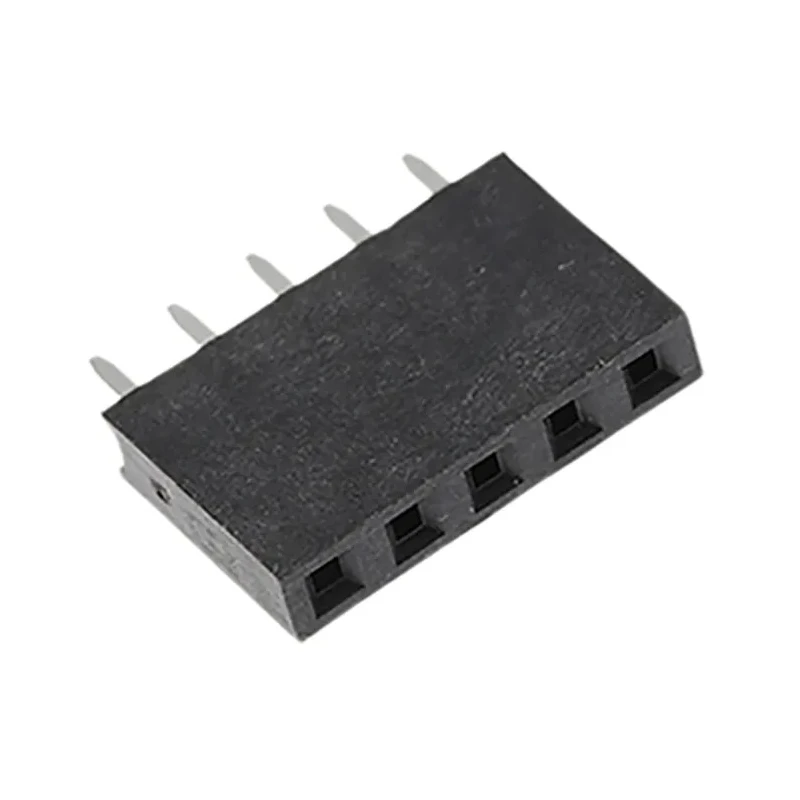

HARWIN M20 Series Straight Through Hole PCB Socket 5-Contact 1 Row 2.54 mm Pitch Solder M20-7820546

HARWIN M20-7820546 is a high-quality M20 Series Straight Through Hole PCB Socket engineered for board-to-board electronic connections. This socket features 5 female contacts arranged in a single row with a 2.54 mm pitch, facilitating compact and reliable interconnection on printed circuit boards. It is constructed with robust nylon housing rated UL94V-0, enabling resistance to high temperature soldering and long-term durability.

The socket incorporates bronze contacts with tin over nickel plating and dual beam design to ensure superior electrical performance and connection stability even after up to 300 mating cycles. The 12-ampere current rating per contact accommodates a variety of low to medium power applications. Its through-hole mounting and straight orientation provide firm mechanical retention on PCBs.

Operating temperature ranges from -55°C minimum to 105°C maximum, making it suitable for use in varied industrial, commercial, and consumer electronic environments where thermal resilience is required. The product is RoHS compliant, supporting environmentally responsible design and manufacturing processes.

This M20 PCB socket series is ideal for embedded PCs, motherboard connections, industrial monitoring systems, communications devices, and personal computing equipment. It meets modern demands for increased PCB density while maintaining compact form factor and reliability.

Compact M20 series design with 2.54 mm pitch supporting 5 contacts per row. Constructed with high temperature nylon housing rated UL94V-0 for durability. Dual beam female bronze contacts plated with tin over nickel for reliable electrical connectivity.

Supports 12A current rating per contact, suitable for various PCB applications. Through hole mounting with straight orientation for stable mechanical fixation. Minimum and maximum operating temperatures of -55°C to 105°C ensure performance in harsh environments.

Meets RoHS compliance standards for environmental safety. Widely used in embedded PCs, motherboards, and consumer electronic devices.

This socket is an excellent choice for high-reliability electronics assembly requiring durable connections with consistent electrical performance. Browse EnvMart’s broad portfolio of board-to-board connectors and sockets to find compatible components and accessories suitable for diverse industrial and commercial uses.

Explore more products in our PCB Sockets category.
