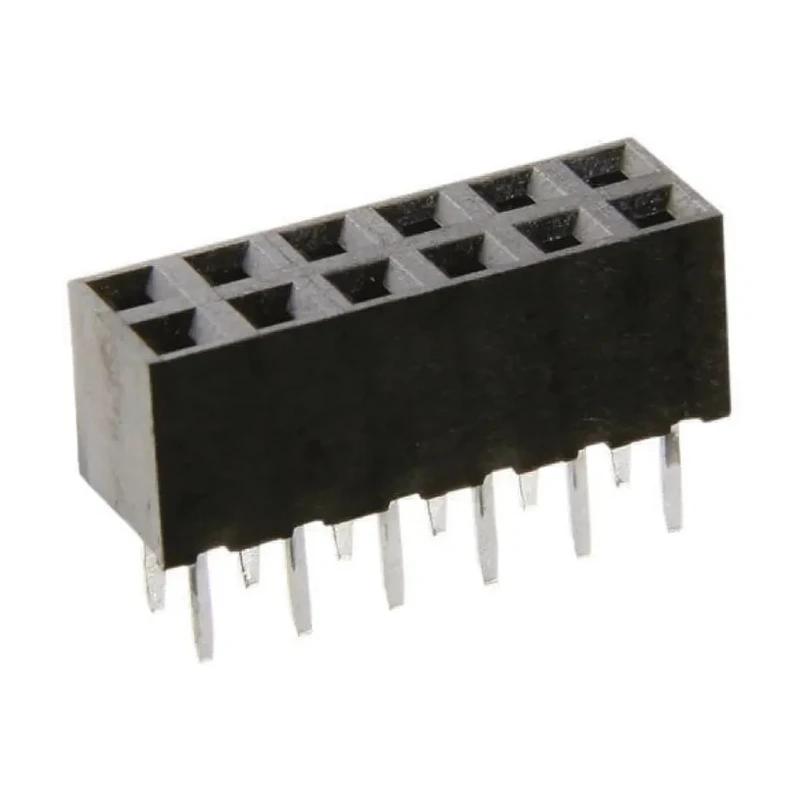

HARWIN M22 Series Straight Through Hole PCB Socket, 6-Contact, 2 Row, 2 mm Pitch, 500V, 12A, Liquid Crystal M22-7140342
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-7140342 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features a compact 2-row layout to optimize PCB density.
- Constructed with high temperature resistant liquid crystal polymer housing.
- Supports solder termination and through-hole mounting for durable installation.
- Gold-plated bronze contacts ensure excellent electrical conductivity and resistance to corrosion.
- Rated for 12A current and up to 500V voltage operation.
- Operates reliably between -25°C to 105°C temperature range.
- Designed for up to 300 mating cycles, enhancing long-term durability.
- Suitable for use in consumer electronics, industrial monitoring, communication devices, and embedded computing systems.
Product Description
HARWIN M22-7140342 is a high-quality Straight Through Hole PCB Socket from the M22 series, designed with 6 contacts arranged in 2 rows with a fine 2 mm pitch. This connector offers a reliable solution for board-to-board applications requiring compact design and high durability.
The socket housing is made from UL94V-0 rated liquid crystal polymer, which withstands high temperatures and reflow soldering processes. Its construction ensures compliance with industry standards for performance and safety. The bronze contacts are gold plated, providing enhanced conductivity and corrosion resistance, suitable for critical electronic connections.
This M22 series PCB Socket supports a current rating of 12A per contact and a voltage rating of 500V, allowing safe use in various electronic devices. Its operating temperature range from -25°C to 105°C ensures performance in harsh environments. The connector system is designed for through-hole mounting with solder termination, enhancing mechanical and electrical stability.
The connector’s straight orientation and compact 2-row form factor aid in optimizing PCB layout and reducing height restrictions in assembly. It is engineered for up to 300 mating operations, making it ideal for applications requiring frequent assembly and disassembly.
This product is suitable for industrial, laboratory, communications, computing, and control system applications where reliable PCB connections are essential. Its robust design supports use in consumer electronics and embedded PC motherboards.
Compact 2 mm pitch with 6 contacts. Liquid crystal polymer housing for high-temperature resistance. Gold plated bronze contacts for reliable electrical connections. Through-hole mounting with solder termination. Current rating of 12A and voltage rating of 500V.
Operating temperature from -25°C to 105°C. Supports up to 300 mating cycles. Ideal for industrial and consumer electronic applications. Explore the extensive HARWIN range for PCB connectors at EnvMart to find compatible components for your designs and projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN M22-7140342 PCB socket has a current rating of 12A and a voltage rating of 500V.
This model operates reliably within a temperature range of -25°C to 105°C.
It features 6 contacts arranged in 2 rows with a 2 mm pitch.
The housing is made from liquid crystal polymer, while the contacts are gold-plated bronze.
This model supports through-hole mounting with solder termination.
It is designed for up to 300 mating cycles, enhancing its durability for frequent use.
The orientation of this PCB socket is straight, which aids in optimizing PCB layout.
It is suitable for consumer electronics, industrial monitoring, communication devices, and embedded computing systems.
The pitch size of the contacts in this socket is 2 mm.
The sub-type classification of this connector is a socket strip.
The HARWIN M22-7140342 is manufactured in Taiwan.
This PCB socket utilizes a board-to-board connector system.
