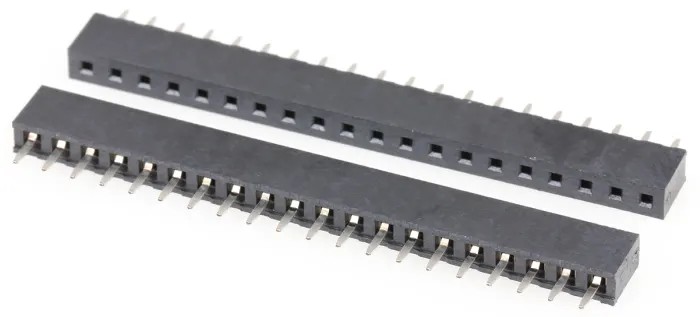

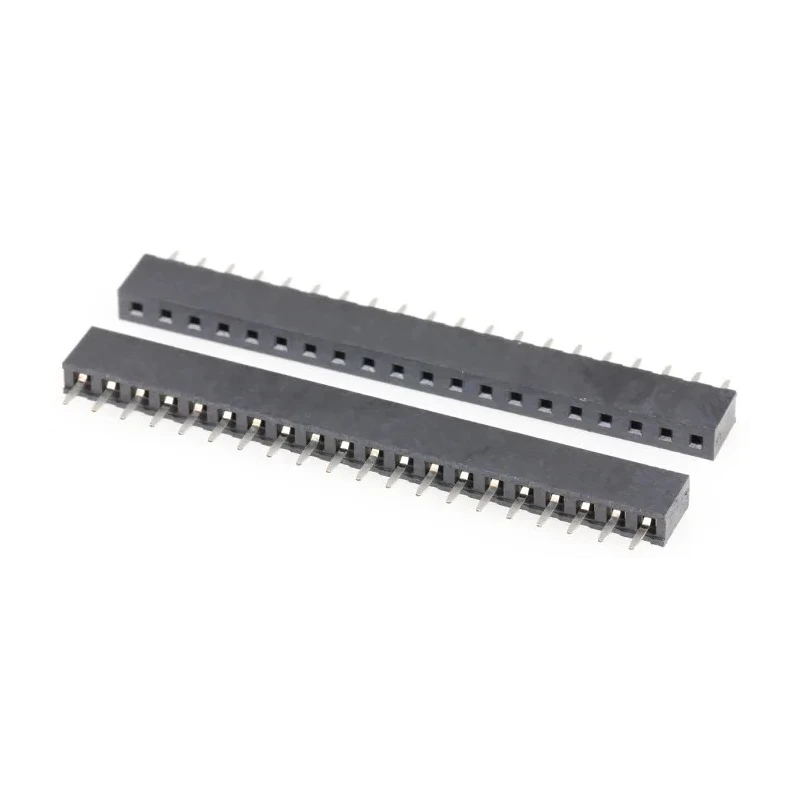

HARWIN M22 Series Straight Through Hole PCB Socket, 20-Contact, 1 Row, 2 mm Pitch 12A Current Rating M22-7132042

HARWIN M22-7132042 is a high-performance PCB socket designed as a single row straight through hole connector featuring 20 female contacts with a 2 mm pitch. Built to meet demanding board-to-board interconnect standards, it provides optimal electrical and mechanical reliability with a 12A current rating and a voltage handling capacity of 500V. The housing is manufactured from UL94V-0 rated Liquid Crystal Polymer that resists high temperatures and withstands reflow soldering processes.

The bronze contacts are gold plated and utilize a dual beam contact system to ensure robust electrical connections and increased mating durability, capable of over 300 mating cycles. Its compact form factor supports increased PCB density and conforms to strict height restrictions, making it ideal for embedded PCs, motherboards, consumer electronics, communications equipment, drives, and industrial control systems.

The socket is through hole mounted with solder termination, providing firm installation stability and compatibility with standard PCB manufacturing processes. It operates reliably over a temperature range from -25°C to 105°C, suitable for diverse industrial and electronic environments.

HARWIN M22 Series PCB Sockets enhance connector reliability and longevity in critical electronic applications, offering a balance of compact size, electrical performance, and rugged material construction.

Features 20 female contacts for reliable connectivity. Designed with a compact 2 mm pitch for increased PCB density. Constructed with high temperature resistant Liquid Crystal Polymer housing. Termination type is solder, supporting through hole mounting.

Rated for 12A current and 500V voltage for robust electrical performance. Gold plated bronze contacts ensure high conductivity and durability. Operates reliably from -25°C to 105°C for wide temperature applications. Suitable for embedded PCs, motherboards, communications, and industrial controls.

Supports up to 300 mating operations guaranteeing long-term reliability. Compact design meets height restrictions in electronic assemblies. Explore the full range of PCB connectors and sockets on EnvMart for professional electronics manufacturing and design solutions.
