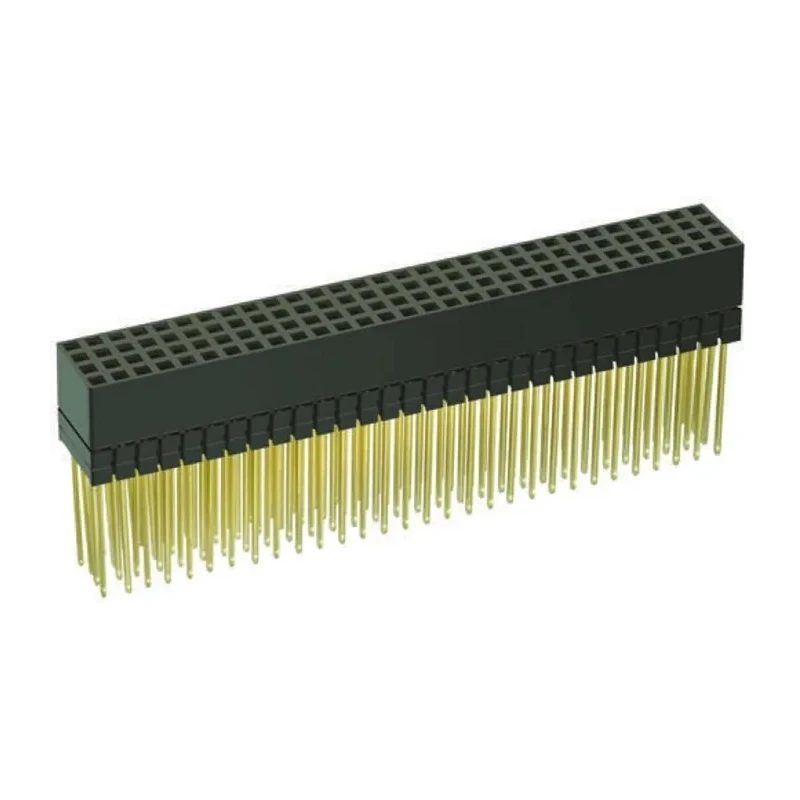

HARWIN M22 Series Straight Through Hole PCB Socket, 120-Contact, 4 Row, 2 mm Pitch, 12A Current, Nylon Housing M22-6003005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M22-6003005 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- 120 contacts arranged in 4 rows for high density connections.
- 2 mm pitch ensures reliable board-to-board connector spacing.
- Supports current rating of 12 Amperes for robust electrical performance.
- Constructed with durable nylon housing suitable for through hole mount.
- Contacts are bronze material with gold plating for improved conductivity.
- Operates safely between -55°C and 125°C temperature range.
- Designed with female contact gender for socket connectivity.
- Connector system supports board-to-board interfacing applications.
Product Description
HARWIN M22-6003005 is a precision engineered PCB socket designed for use in embedded PC applications following the PC/104 Plus standard. This socket features 120 female contacts arranged in 4 rows with a 2 mm pitch, providing dense and reliable board-to-board connections. The socket supports through hole mounting and solder termination, ensuring secure placement on printed circuit boards. It is constructed with a robust nylon housing that offers good electrical insulation and mechanical stability.
The contacts are made of bronze and are gold plated to enhance electrical conductivity and resist corrosion, suitable for demanding environments. This component handles electrical currents up to 12 Amperes and withstands voltages up to 1 kV, making it suitable for moderately high power applications. It operates reliably over a wide temperature range from -55°C to 125°C, ensuring durability in various industrial and laboratory conditions.
The straight orientation of the socket facilitates easy integration in board stacking arrangements and promotes efficient signal transmission. This connector system complies with no special certifications but meets mechanical and electrical industry standards for embedded PC connectivity. Ideal for industrial, manufacturing, computing, and embedded electronic applications, this HARWIN series socket provides a robust interface for modular board designs.
120 contacts arranged in 4 rows for high density connections. 2 mm pitch ensures reliable board-to-board connector spacing. Supports current rating of 12 Amperes for robust electrical performance. Constructed with durable nylon housing suitable for through hole mount.
Contacts are bronze material with gold plating for improved conductivity. Operates safely between -55°C and 125°C temperature range. Designed with female contact gender for socket connectivity. Connector system supports board-to-board interfacing applications.
Voltage rating up to 1 kV for isolation and safety. Series M22 ensures compatibility with PC/104 Plus embedded PC standards. Explore more HARWIN connectors and PCB Sockets at EnvMart for your embedded systems and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12 Amperes, providing robust electrical performance for various applications.
The HARWIN M22-6003005 has a voltage rating of up to 1 kV, ensuring isolation and safety in its applications.
It features 120 contacts arranged in 4 rows with a 2 mm pitch, allowing for high-density connections.
The housing is made of durable nylon, while the contacts are bronze with gold plating to enhance conductivity.
This socket operates safely between -55°C and 125°C, making it suitable for various industrial environments.
The HARWIN M22-6003005 utilizes solder termination for secure placement on printed circuit boards.
This model has a straight orientation, which facilitates easy integration in board stacking arrangements.
It supports through hole mounting, ensuring secure placement on PCBs during assembly.
The HARWIN M22-6003005 is designed with female contact gender for socket connectivity.
It is designed for board-to-board interfacing applications, particularly in embedded PC systems following the PC/104 Plus standard.
While it does not have special certifications, it meets mechanical and electrical industry standards for embedded PC connectivity.
The country of origin for this model is India.
