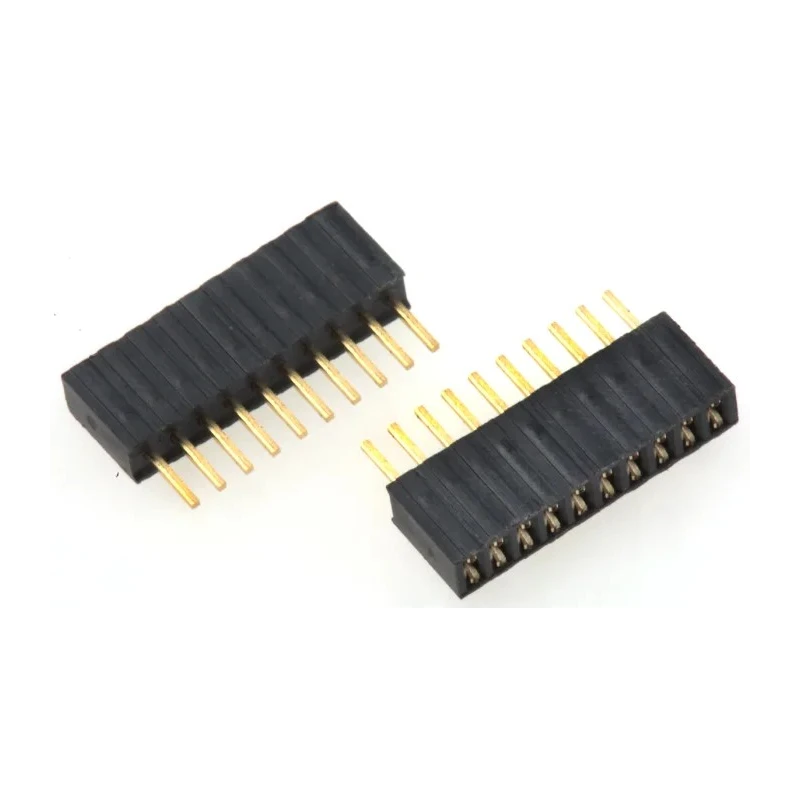

HARWIN M52 Series Straight Through Hole PCB Socket 10-Contact 1 Row 1.27 mm Pitch Solder M52-5001045
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M52-5001045 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M52 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with durable nylon housing ensuring insulation and robustness.
- Supports current rating of 12A for moderate power applications.
- Features a female bronze contact with gold plating for superior conductivity and corrosion resistance.
- Designed as a single row socket strip with 10 contacts facilitating compact PCB integration.
- Rated for operating temperatures from -40°C up to 105°C for versatile environmental use.
- Mount type is through-hole, providing secure mechanical attachment on PCBs.
- Orientation is straight for straightforward soldering and alignment.
- Suitable for 500V electrical voltage applications in industrial and electronic equipment.
Product Description
The HARWIN M52-5001045 PCB Socket is a premium quality straight through-hole connector designed for reliable board-to-board electrical connections. Featuring 10 female contacts arranged in a single row with a 1.27 mm pitch, this socket is optimized for compact electronics requiring dependable performance.
Constructed from robust nylon, the housing ensures electrical insulation and long-term mechanical stability. The bronze contacts are plated with gold to maximize conductivity and resist corrosion, suitable for moderate current levels up to 12A and voltages reaching 500V.
The through-hole mounting style secures the socket firmly onto printed circuit boards, while the straight orientation facilitates easy PCB layout and soldering. It is designed to operate reliably across a broad temperature range from -40°C to 105°C, making it suitable for various industrial, electronic manufacturing, and commercial applications.
This Harwin M52 series socket is part of a broad family of compatible connectors intended for versatile board interconnections. Its construction supports long-term durability and consistent electrical performance under demanding operating conditions.
Durable nylon housing for insulation and mechanical strength. Gold-plated bronze contacts for excellent conductivity. Through-hole mount provides secure PCB attachment. Supports 12A current and 500V voltage rating. Operating temperature range from -40°C to 105°C.
Single row 10-contact configuration at 1.27 mm pitch. Straight orientation for easy installation. Ideal for industrial, manufacturing, and electronic applications. Manufactured in Taiwan Province of China.
This socket is ideal for engineers and technicians designing reliable and high-quality PCB assemblies. Browse the EnvMart catalog for additional Harwin M52 series connectors and related PCB components for comprehensive electronic design solutions.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A, making it suitable for moderate power applications.
The maximum voltage rating for this socket is 500V, allowing it to be used in various electrical applications.
It features a nylon housing for insulation and bronze contacts that are gold-plated for enhanced conductivity and corrosion resistance.
This socket operates reliably within a temperature range of -40°C to 105°C, suitable for diverse environmental conditions.
The HARWIN M52-5001045 features 10 female contacts arranged in a single row, facilitating compact PCB integration.
The pitch size of the contacts in this socket is 1.27 mm, which is standard for many PCB applications.
It uses a through-hole mounting type, providing secure mechanical attachment on printed circuit boards.
This model has a straight orientation, which simplifies soldering and alignment during installation.
The termination type for this PCB socket is solder, which is common for secure electrical connections.
This socket is manufactured in Taiwan, ensuring adherence to quality standards.
It is suitable for various industrial, electronic manufacturing, and commercial applications due to its robust design and specifications.
The HARWIN M52-5001045 is part of a board-to-board connector system, designed for reliable electrical connections between PCBs.
