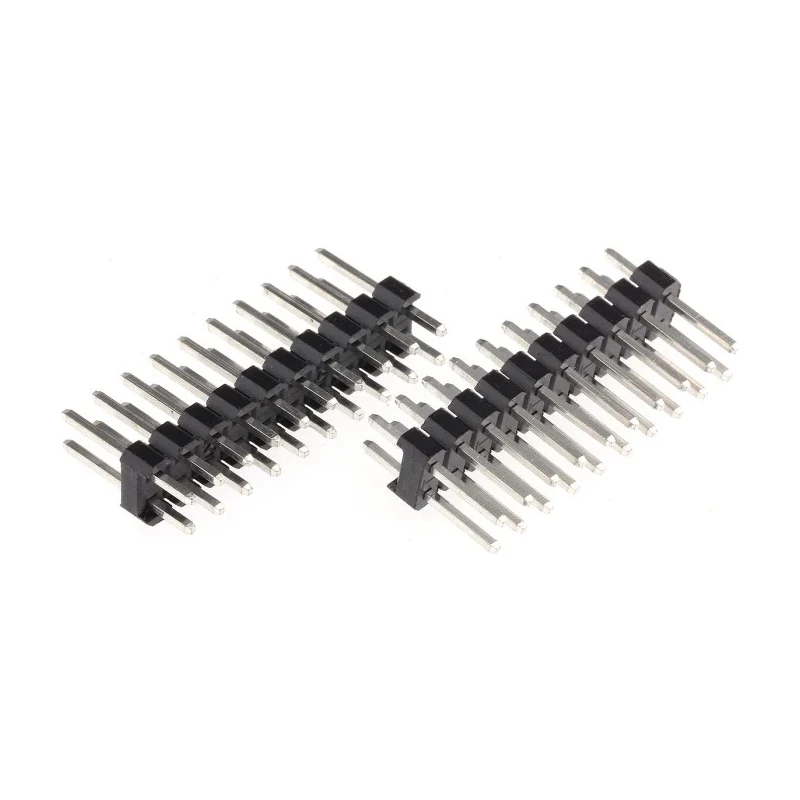

HARWIN M20 Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-9981046

HARWIN M20-9981046 is a high-quality straight through hole pin header designed for PCB applications requiring 20 male contacts arranged in 2 rows with a pitch of 2.54 mm. The connector housing is manufactured from durable nylon thermoplastic, ensuring it withstands the reflow soldering process and high operating temperatures up to 105°C.

This pin header features brass contacts plated with tin, enhancing conductivity and corrosion resistance while supporting a continuous current rating of 3 A. The pin header has a 3 mm tail pin length and mates with M20 series sockets and housings, which come in multiple configurations for design flexibility.

The unshrouded straight orientation facilitates easy connection to wire-to-board and board-to-board systems within a variety of electronic equipment. Its specifications include a minimum operating temperature of -40°C, making it suitable for industrial and commercial environments requiring robust performance.

The thermoplastic housing design includes castellations that can be cut to reduce the pin header size as necessary, provided caution with the tail pins is exercised. These connectors find common applications in consumer electronics, communications devices, drives and controls, industrial monitoring, and embedded PC systems.

This product is new, made to high standards but has no specific certifications listed. It enhances connectivity in complex electronic assemblies, ensuring reliable signal and power transmission in diverse manufacturing and industrial settings.

Features 20 male contacts arranged in 2 rows for high-density connectivity. Constructed with brass contacts plated with tin for durability and conductivity. Housing made of nylon thermoplastic enables reflow soldering and high temperature resistance up to 105°C.

Designed with a 2.54 mm pitch and 3 mm tail pin length suitable for through-hole mounting. Offers a straight orientation and unshrouded design for easy mating with corresponding sockets. Supports an operating current of 3 A for efficient signal transmission.

Minimum operating temperature is -40°C making it suitable for harsh industrial environments. Pin header mates with M20 series sockets, providing flexibility in configuration and pin lengths. Ideal for consumer electronics, industrial controls, communications, and embedded PC applications.

Thermoplastic housing castellations allow cutting to size with care for tail pins. For reliable and versatile PCB Pin Header connectors, explore more products and options at EnvMart’s Electronics Components category.
