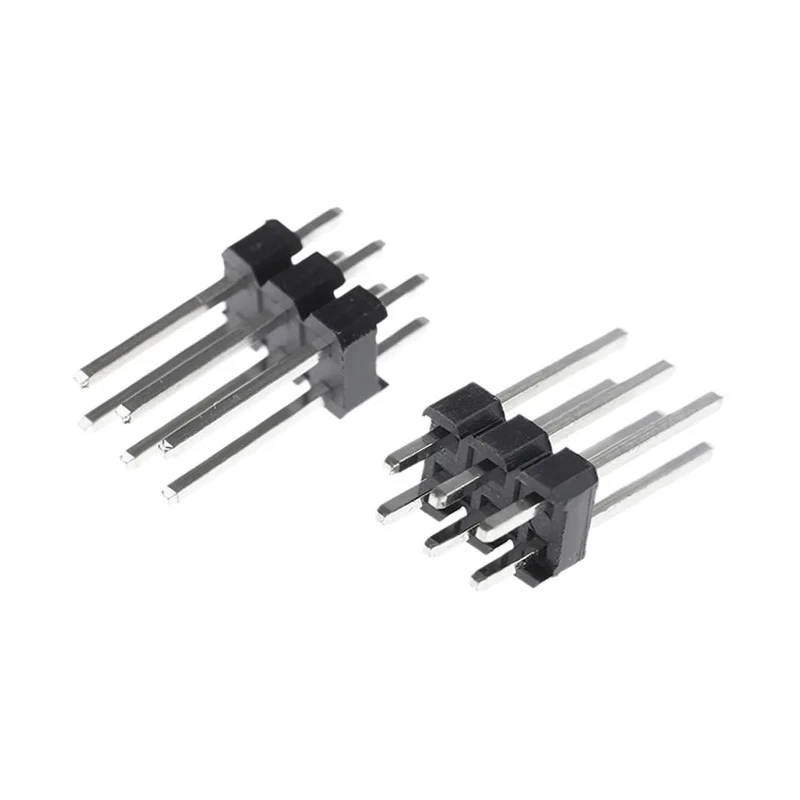

HARWIN M20 Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 2 Row Unshrouded M20-9970346
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9970346 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 2.95mm |
| Mating Pin Length | 8.51mm |
Key Features
- Features a straight orientation and through hole mount type for sturdy board attachment.
- Constructed with brass contacts plated with tin for durability and corrosion resistance.
- Housing made of high temperature nylon capable of withstanding reflow soldering processes.
- Designed to operate reliably between -40°C and 105°C.
- Compatible with M20 series PCB sockets and jumpers for versatile configurations.
- Includes tail pin length of 2.95 mm and mating pin length of 8.51 mm for optimal connectivity.
- Widely used in embedded PCs, motherboards, and various industrial electronics applications.
- Unshrouded design facilitates easy assembly and inspection during PCB manufacturing.
Product Description
HARWIN M20-9970346 is a high-quality straight through hole pin header connector from the M20 series designed with six male contacts arranged in two rows with a 2.54 mm pitch. The connector is unshrouded and features a nylon housing that can withstand high temperatures including standard reflow soldering processes.
This connector utilizes brass contacts with tin plating to deliver reliable electrical connections and excellent corrosion resistance in demanding industrial environments. The straight orientation and through hole mount type ensure durable mechanical stability and secure mounting on printed circuit boards.
Operating temperature ranges from -40°C to 105°C, making it suitable for a wide variety of industrial electronics and embedded computing applications such as motherboards, consumer electronics, communications, drives and controls, and industrial monitoring systems.
The tail pin length is 2.95 mm and the mating pin length is 8.51 mm for reliable insertion into M20 series sockets and jumpers. The unshrouded design provides ease of assembly and inspection during PCB manufacturing and servicing.
Straight orientation with 2.54 mm pitch and 2 rows. Brass contacts plated with tin for durability. Nylon housing supports reflow soldering. Mates with M20 series PCB sockets and jumpers. Suitable for industrial, consumer, and embedded PC applications.
This pin header is manufactured in Taiwan, Province Of China, adhering to strict quality standards with no specific certifications mentioned. Explore the full range of HARWIN connectors and PCB headers in the Electronics & Electricals category for advancing your PCB design and assembly projects.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 2.54 mm.
This model features 6 male contacts arranged in 2 rows.
The maximum operating temperature for this connector is 105°C.
It uses a through hole mount type for secure attachment to printed circuit boards.
The contacts are made of brass and are plated with tin, while the housing is made of nylon.
The tail pin length is 2.95 mm.
The mating pin length is 8.51 mm.
This model has a current rating of 3A.
It operates reliably between -40°C and 105°C.
This pin header is unshrouded, which facilitates easy assembly and inspection during PCB manufacturing.
It is compatible with M20 series PCB sockets and jumpers for versatile configurations.
This pin header is manufactured in Taiwan, Province Of China.
