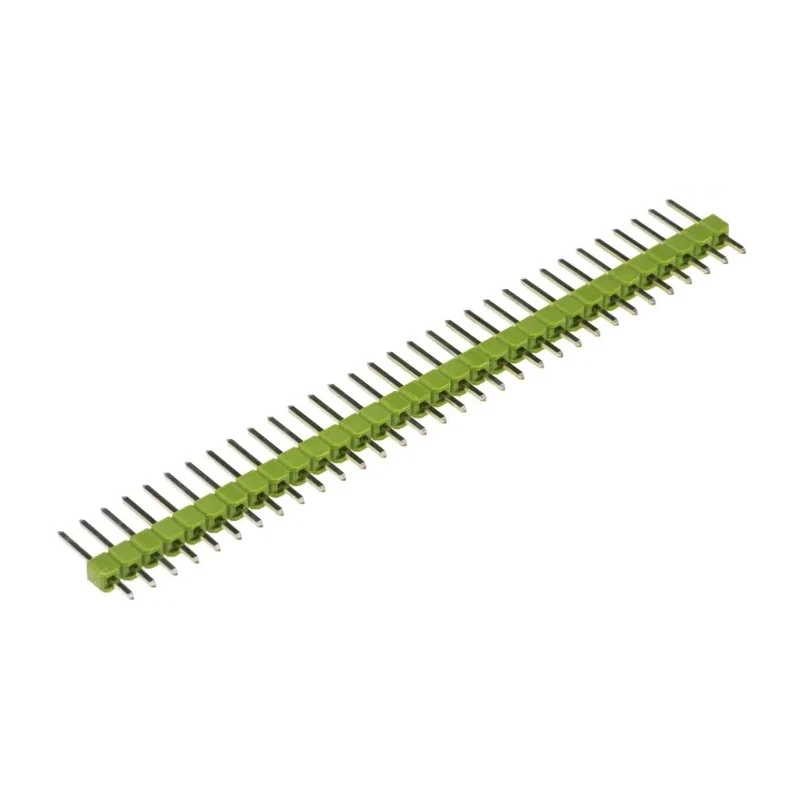

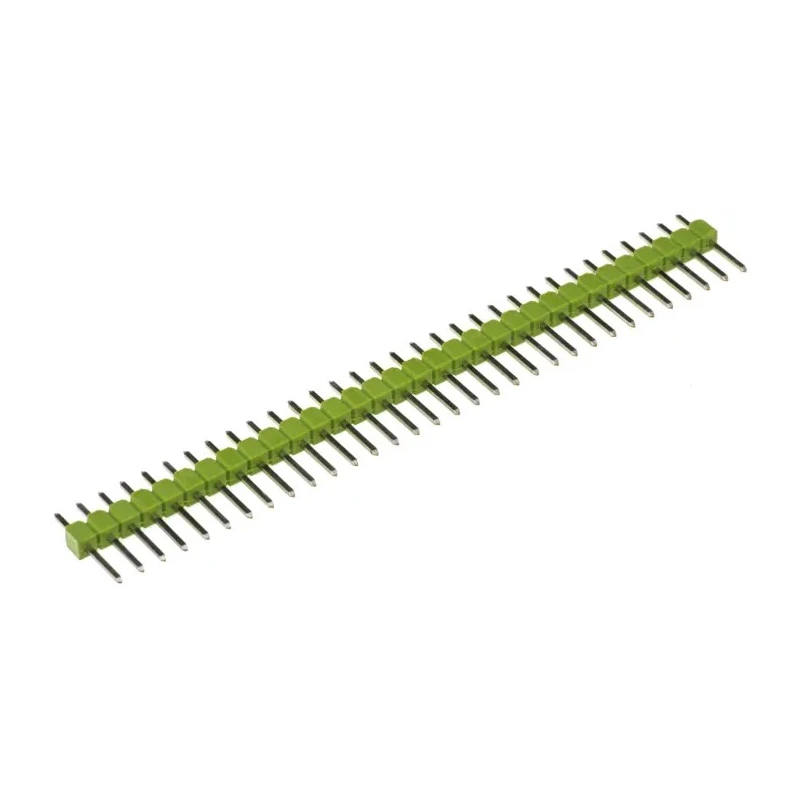

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 32 Contacts 2.54mm Pitch 1 Row Unshrouded 3-826936-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- The header features a straight orientation with a through-hole mount type.
- Constructed with a thermoplastic housing and phosphor bronze contacts plated with tin for durability.
- Operates reliably between -65°C to 105°C, suitable for various industrial environments.
- The tail pin length is 3.2 mm and mating pin length is 5.8 mm, allowing easy soldering.
- Versatile, breakaway design enables customization to required pin counts.
- Applicable across automotive controls, industrial and test equipment, computing, telecommunications, medical instruments, storage equipment, and appliances.
Product Description
TE Connectivity 3-826936-2 AMPMODU MOD II Series Straight Through Hole Pin Header provides a reliable and economical interconnect solution featuring 32 contacts arranged in a single row with a 2.54 mm pitch. The unshrouded header is designed for board-to-board and wire-to-board applications in industrial, automotive, telecommunications, medical, and computing sectors.
The connector is constructed with a durable thermoplastic housing and phosphor bronze contacts with tin plating to ensure reliable electrical connections. Its straight orientation and through-hole mounting facilitate easy integration in printed circuit boards. The tail pin length of 3.2 mm and mating pin length of 5.8 mm allow for efficient soldering and mechanical stability.
Operating over a temperature range from -65°C to 105°C, this header is suitable for use in demanding environments and complies with no specific approvals, emphasizing its broad industrial applicability.
The AMPMODU Mod II series features a breakaway design allowing the header strips to be divided into custom lengths, providing flexibility and efficiency in manufacturing and assembly processes.
The connector supports current up to 3A, suitable for various signal and power requirements. Applications include automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage units, and household appliances.
The connector system supports both board-to-board and wire-to-board configurations for versatile installation. Its unshrouded design enables inspection and easy troubleshooting in circuit connections. The product enhances production efficiency by allowing all solder posts to be installed simultaneously.
Choose from the extensive EnvMart range of TE Connectivity PCB connectors and headers for reliable interconnection solutions tailored to professional industrial needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm.
This model has 32 contacts arranged in a single row.
The maximum operating temperature for this connector is 105°C.
The minimum operating temperature is -65°C.
The header is constructed with a thermoplastic housing and phosphor bronze contacts plated with tin.
It uses a through-hole mounting type, facilitating integration into printed circuit boards.
The tail pin length is 3.2 mm.
The mating pin length is 5.8 mm, allowing for efficient soldering.
It can support a current of up to 3A.
The connector system supports both board-to-board and wire-to-board configurations.
The orientation of this pin header is straight.
This model is suitable for applications in automotive controls, industrial and test equipment, telecommunications, medical instruments, and computing.
