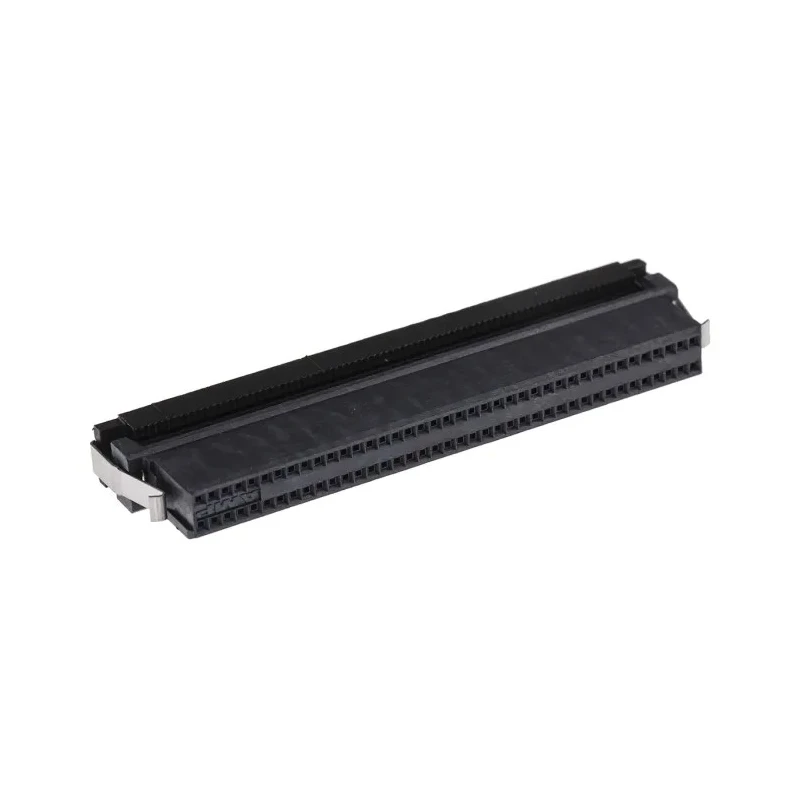

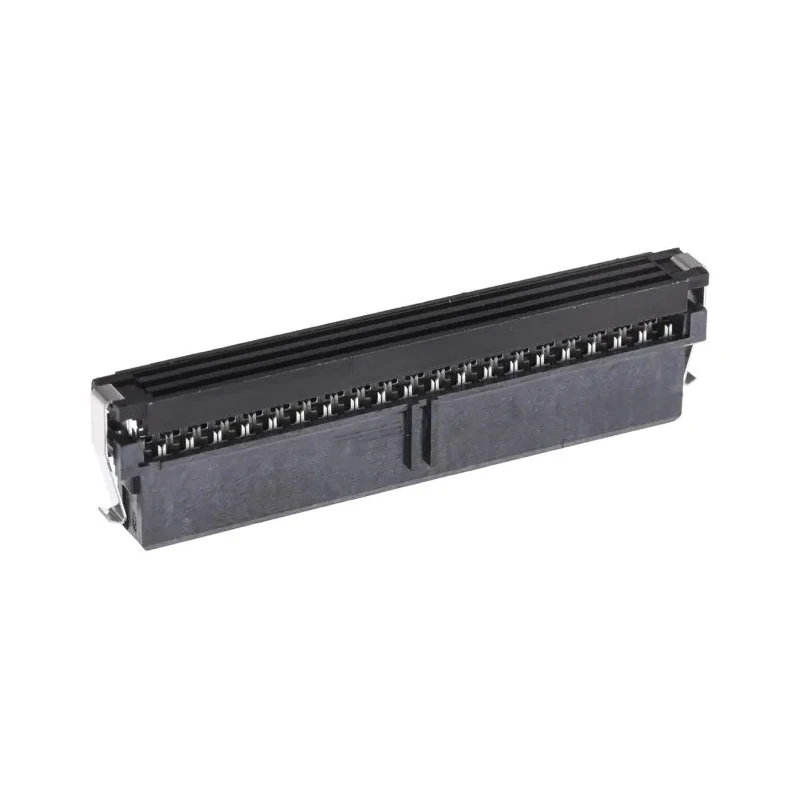

TE Connectivity 80-Way 2-Row High-Density Shrouded Female IDC Connector for Cable 3-111196-3

TE Connectivity 3-111196-3 is a high-density 80-way female IDC connector designed for cable mounting with a two-row configuration. It features a right angle orientation and is part of the AMPMODU System 50 series, known for compactness and reliable performance in demanding industrial and electronic applications.

The connector has gold over nickel plated copper contacts that ensure excellent electrical conductivity and resistance to corrosion. The housing is made of liquid crystal polymer, providing robust mechanical strength and thermal stability, allowing the connector to operate reliably from -65°C to 105°C.

This connector utilizes insulation displacement contact (IDC) technology, enabling efficient one-step cable termination without requiring extra tooling. It is also shrouded for enhanced protection and incorporates integral positive locking latches for a secure mating connection, reducing the risk of accidental disconnection. Polarization bars on the housing prevent improper mating with other connectors.

Operating voltage is rated at 30V AC with a current capacity of 500mA, suitable for a wide range of low-voltage electronic devices. Typical usage scenarios include factory automation systems, telecommunications equipment, medical devices, servers, test and measurement instruments, automotive control systems, and gaming equipment.

High-density 80-contact design with two rows for compact connections. Gold over nickel plating for reliable and corrosion-resistant performance. Suitable for cable mounting with shrouded housing for secure fit. Operates at 30V AC voltage rating and supports 500mA current.

Durable liquid crystal polymer housing ensures mechanical stability and thermal resistance. Integral positive locking latches provide secure mating with headers. Features polarization to prevent mismating during installation.

Wide operating temperature range from -65°C to 105°C suitable for industrial environments. IDC termination type allows quick one-step cable assembly without additional tooling. Ideal for factory automation, telecommunications, medical equipment, servers, and automotive controls.

This TE Connectivity AMPMODU System 50 IDC Connector is engineered for high-density interconnection solutions in electronic assemblies requiring reliable, compact, and easy-to-assemble connectors. Explore additional TE Connectivity connectors and components in the EnvMart Electronics & Electricals catalog for complementary solutions.
