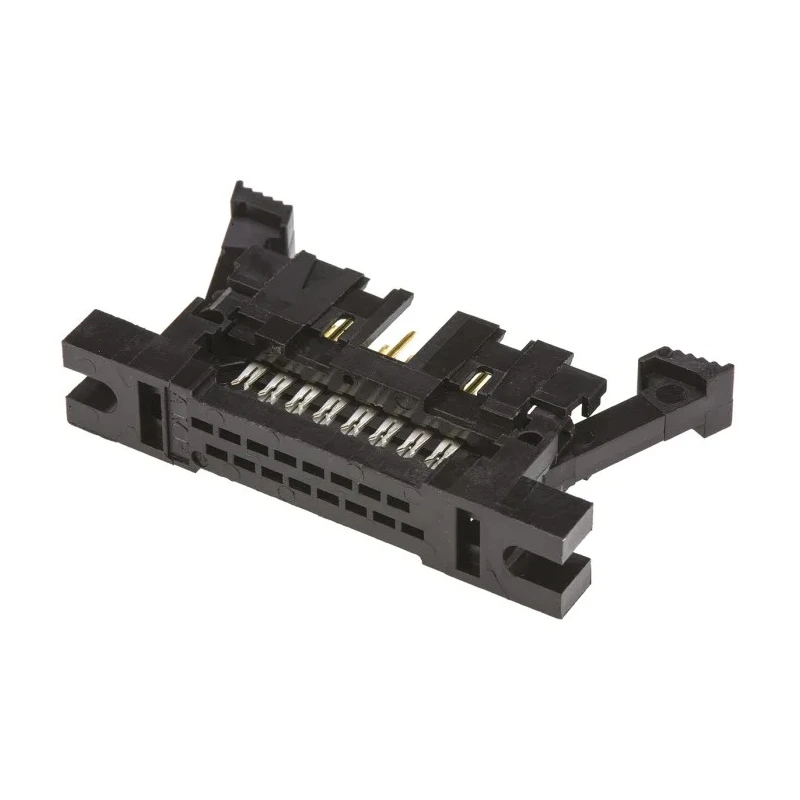

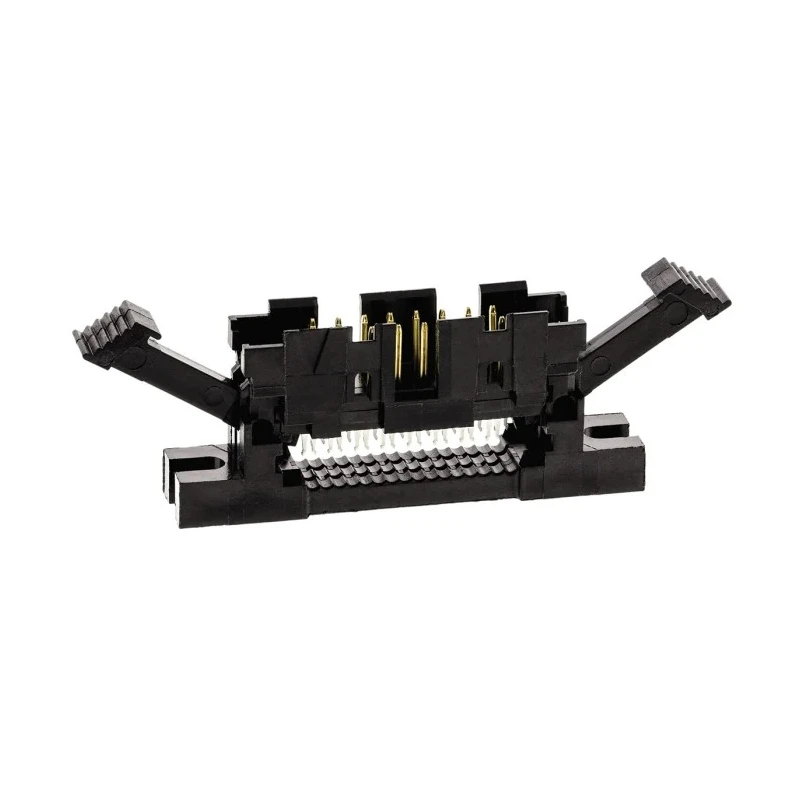

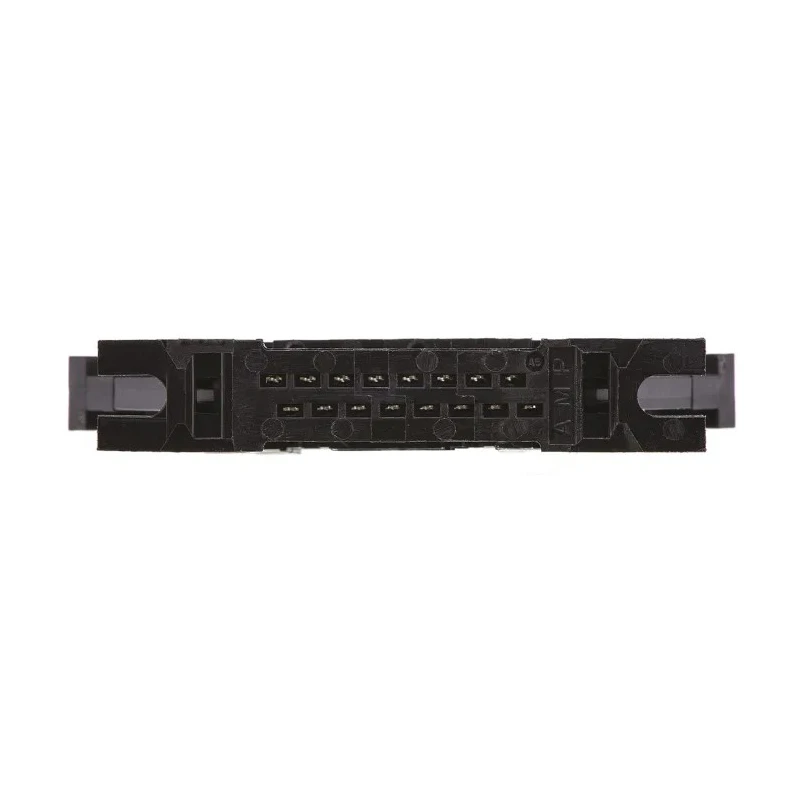

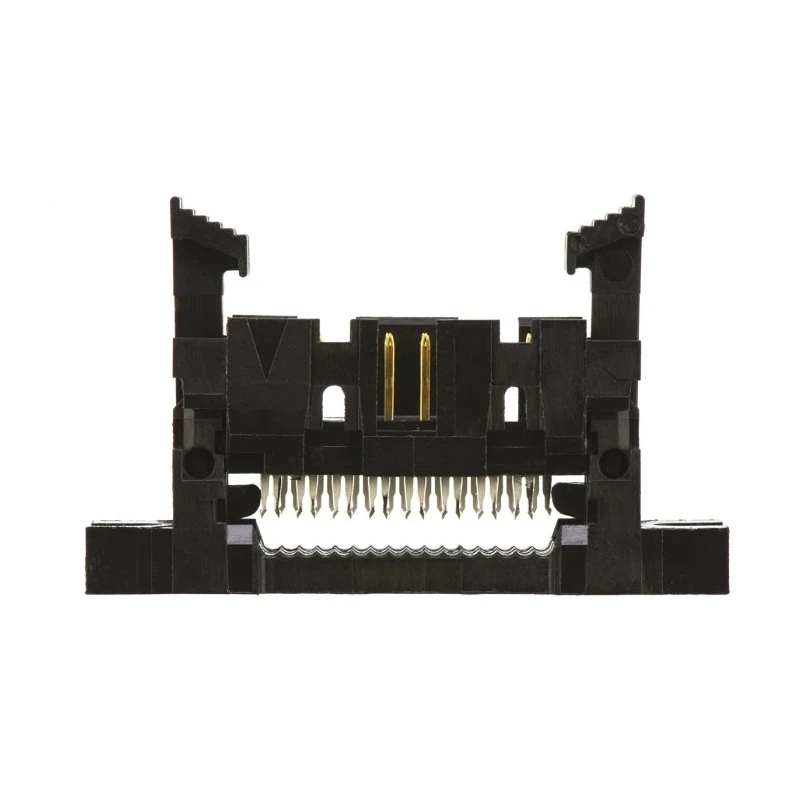

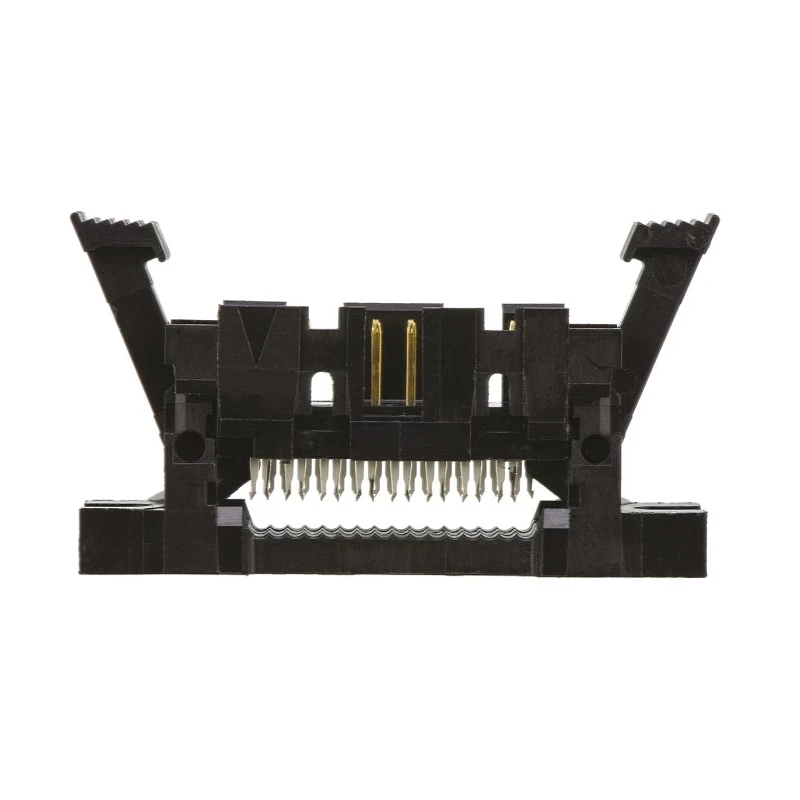

TE Connectivity 16-Way IDC Connector Male Panel Mount 2-Row AMP-LATCH 1A 250V AC 1-111506-8

TE Connectivity 1-111506-8 is a 16-way IDC connector male designed for panel mount applications with two rows, part of the AMP-LATCH series. It supports electrical ratings of 1A current and 250V AC voltage, making it suitable for a wide range of industrial and electronic component applications.

The connector features a right-angle orientation to facilitate easier installation on panels. Its contacts are manufactured from phosphor bronze, plated with gold over nickel to ensure excellent conductivity and corrosion resistance. The housing is crafted from UL 94V-0 rated black thermoplastic, providing flame retardancy and mechanical robustness.

Operating reliably between -65°C and 105°C, this connector is engineered to withstand harsh environmental conditions. The shrouded design provides protection against physical damage and electrical shorts, while the 2.54 mm pitch spacing matches standard PCB and cable interfaces.

Its IDC termination type allows quick and secure connection with ribbon cables. The AMP-LATCH connectors are compatible with Novo receptacles and female socket connectors, facilitating versatile use in electronic hardware manufacturing, automation equipment, and control systems.

This connector supports right-angle panel mount installation for flexible hardware configuration. Gold over nickel contact plating ensures long-term electrical reliability and low contact resistance. UL 94V-0 flame retardant thermoplastic housing enhances safety and durability.

Wide temperature operating range from -65°C to 105°C for robust performance in industrial environments. 16 contacts arranged in 2 rows with 2.54 mm pitch for standard interfacing. Compatible with AMP-LATCH series connectors, enabling modular system design.

Shrouded design provides secure mating and prevents accidental contacts. IDC termination facilitates easy connection of ribbon cables in electronic assemblies.

This IDC Connector is ideal for industrial electronics, automation controls, communication equipment, and panel-mounted electronic devices. Its robust materials and secure mounting make it reliable for manufacturing, laboratory, and commercial electronic applications.
