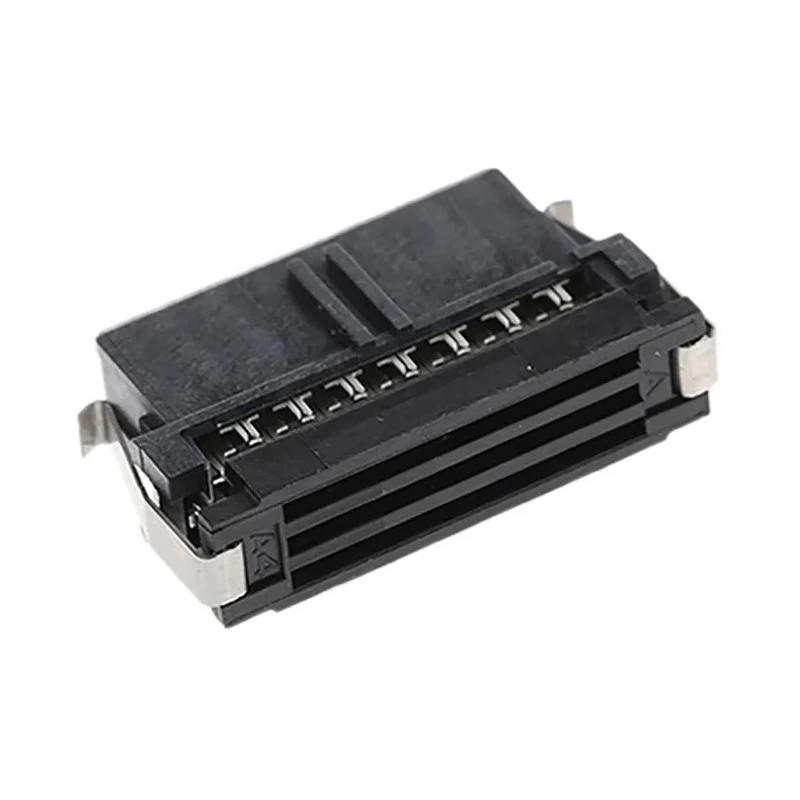

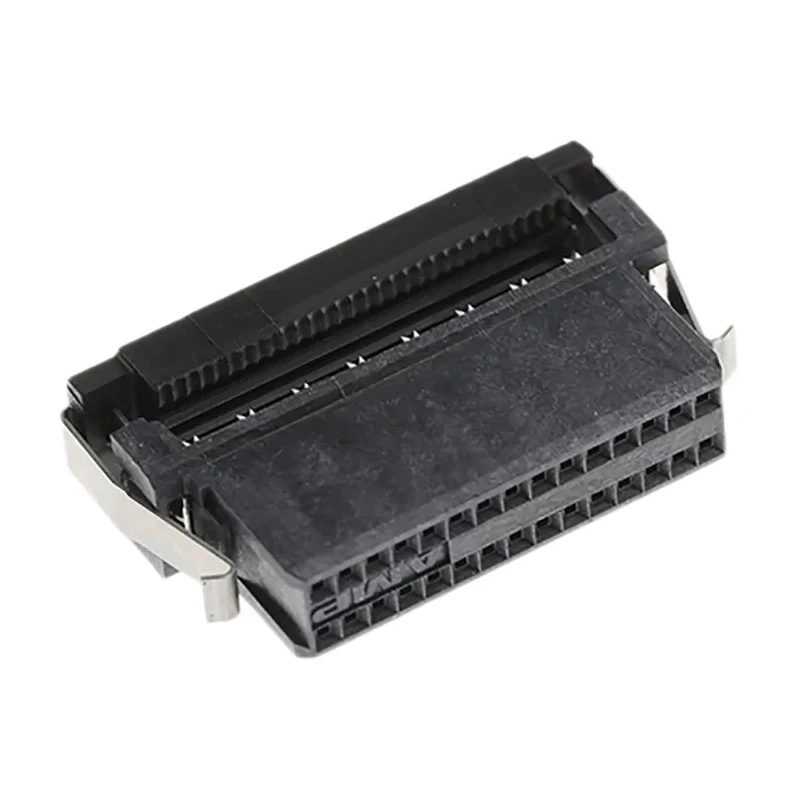

TE Connectivity 30-Way IDC Connector Female for Cable 2 Row AMP-LATCH System 50 30V AC 500mA 1.27mm Pitch 1-111196-9
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Cable |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Series | AMP-LATCH System 50 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Shrouded |
Key Features
- High density design with 30 contacts and dual row configuration for compact installations.
- Gold over nickel plating enhances electrical performance and reliability.
- Rated for 30V AC voltage and 500mA current capacity.
- Shrouded female connector ensuring protection and secure mating.
- Suitable for termination of 0.05 mm² solid or stranded and 0.03 mm² stranded ribbon cable.
- Operates from -65°C up to 105°C for wide application range.
- Integral positive locking latches for secure connection to mating headers.
- Polarization features prevent mismating with headers.
Product Description
TE Connectivity 1-111196-9 IDC Connector is a 30-way female connector designed for cable mounting with a 2-row configuration following the AMP-LATCH System 50 standard. Rated for 30V AC and 500mA current, this connector features a pitch of 1.27mm ensuring high-density connection in constrained spaces.
The connector houses gold-plated contacts over nickel for enhanced electrical conductivity and corrosion resistance, and includes shrouded female contacts for added protection. It supports termination of small ribbon cables including 0.05 mm² solid or stranded and 0.03 mm² stranded ribbon cables with IDC technology enabling fast one-step cable termination without the need for additional tooling.
Constructed with copper contacts and a durable liquid crystal polymer housing, it ensures operation under temperature ranges from -65°C up to 105°C, suitable for demanding industrial environments. Its integral positive locking latches secure connections to mating headers, and polarization bars on the side prevent mismating, thus ensuring reliability in high-density applications.
This connector is ideal for a wide array of industrial, telecommunications, medical, server, test measurement, storage, automotive control, and gaming equipment applications where reliable, compact IDC interconnection is required.
High density compact design with 30 contacts and 2 rows. Gold plated copper contacts for superior electrical performance. Integral positive locking latches and polarization for secure, accurate mating. Wide operating temperature range from -65°C to 105°C.
Preassembled house and cover suitable for daisy chain and end terminations. Compatible with AMPMODU System 50 interconnection system. Enables quick one-step Assembly with IDC termination technology. Explore top-quality IDC Connectors like this from TE Connectivity and elevate your electronics and industrial projects by browsing the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IDC connector is rated for 30V AC voltage.
It has a current capacity of 500mA.
The connector features a pitch of 1.27mm, allowing for high-density connections.
The connector is constructed with copper contacts and a liquid crystal polymer housing.
It operates within a temperature range from -65°C to 105°C.
This connector has 30 contacts arranged in a dual row configuration.
Yes, it includes integral positive locking latches for secure connection to mating headers.
Yes, it is suitable for the termination of 0.05 mm² solid or stranded and 0.03 mm² stranded ribbon cables.
It utilizes IDC (Insulation Displacement Connector) technology for fast one-step cable termination.
The connector includes polarization features to prevent mismating with headers.
The connector has a straight orientation.
The connector is manufactured in India.
