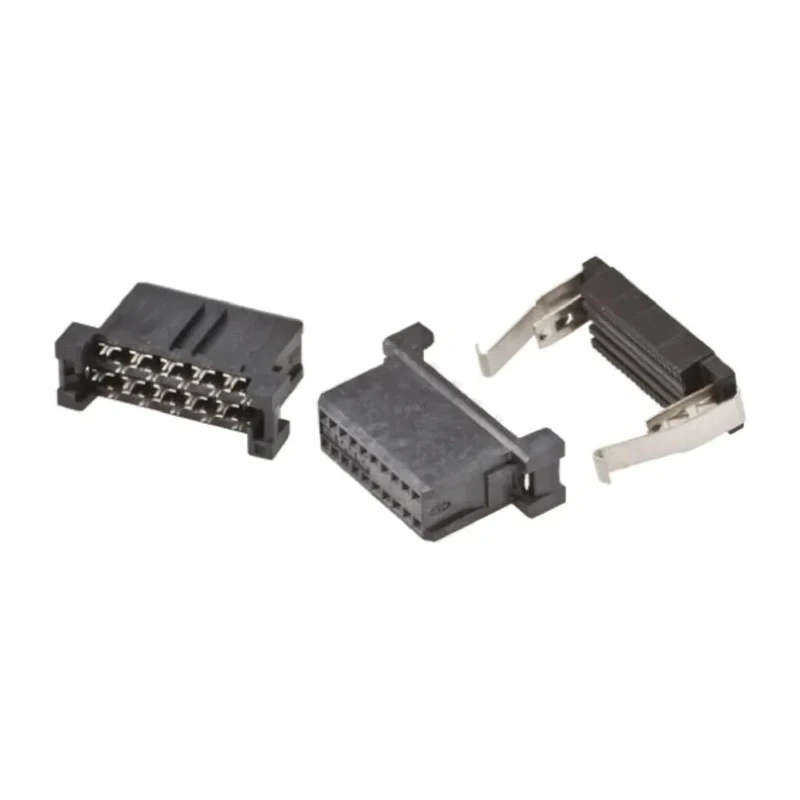

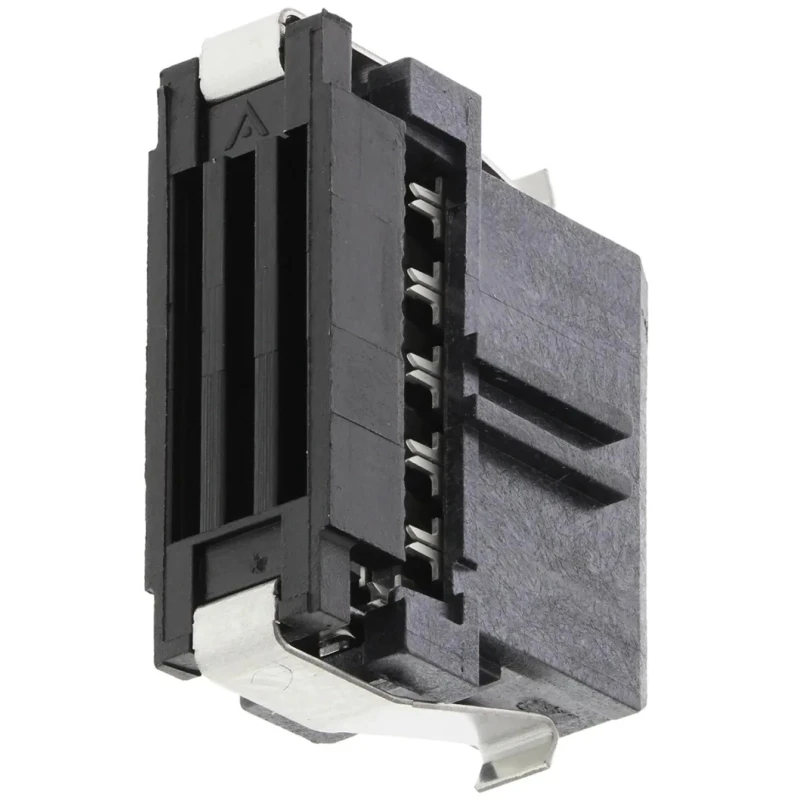

TE Connectivity 20-Way IDC Connector Female for Cable, 2 Row 1-111196-8

TE Connectivity 1-111196-8 20-Way IDC Connector Female for Cable, 2 Row is a high-density, compact IDC ribbon cable receptacle connector designed for reliable and efficient cable termination. It operates at 30V AC with a current rating of 500mA, supporting a wide operating temperature range from -65°C to 105°C, making it suitable for challenging electrical and industrial environments.

Constructed from copper contacts with gold over nickel plating, these connectors ensure superior electrical performance and corrosion resistance. The housing is made from liquid crystal polymer, providing robust mechanical stability and insulating properties. Featuring a two-row 20-contact configuration and a 1.27mm pitch, it enables precise and high-density connections.

This connector employs IDC (Insulation Displacement Contact) termination technology for quick one-step assembly without additional tooling. The integrated positive locking latches provide secure mating to compatible headers without occupying extra PCB space or causing compatibility issues due to latch height.

TE Connectivity’s AMP-LATCH System 50 series connectors are designed for use in a wide range of industrial, laboratory, telecommunications, automation, medical, server, test, measurement, and automotive control applications. Their polarization features help prevent mismating, ensuring reliable assembly and long-term operational stability.

The product is suitable for both end and daisy chain terminations, supporting flexible wiring configurations in complex systems. These connectors are manufactured to high standards without specific certifications noted, offering dependable interconnection solutions for demanding technical environments.

Features 20 contacts in a two-row configuration for efficient cable termination. Operates at 30V AC with a current rating of 500mA for reliable performance. Gold over nickel plated contacts ensure enhanced electrical conductivity and corrosion resistance.

Constructed from copper contact material and liquid crystal polymer housing for durability. Supports operating temperatures from -65°C up to 105°C for harsh industrial environments. Utilizes IDC termination type for quick and tool-free cable connection.

Includes integral positive locking latches to secure mating connections. Designed for straight orientation and cable mount type for flexible installation. Ideal for applications in factory automation, telecommunications, medical equipment, and server hardware.

Polarization bars prevent mismating, promoting accurate assembly and improved system reliability. Explore more electronic connectors and components at EnvMart to find compatible parts for complex wiring and PCB integration projects.
