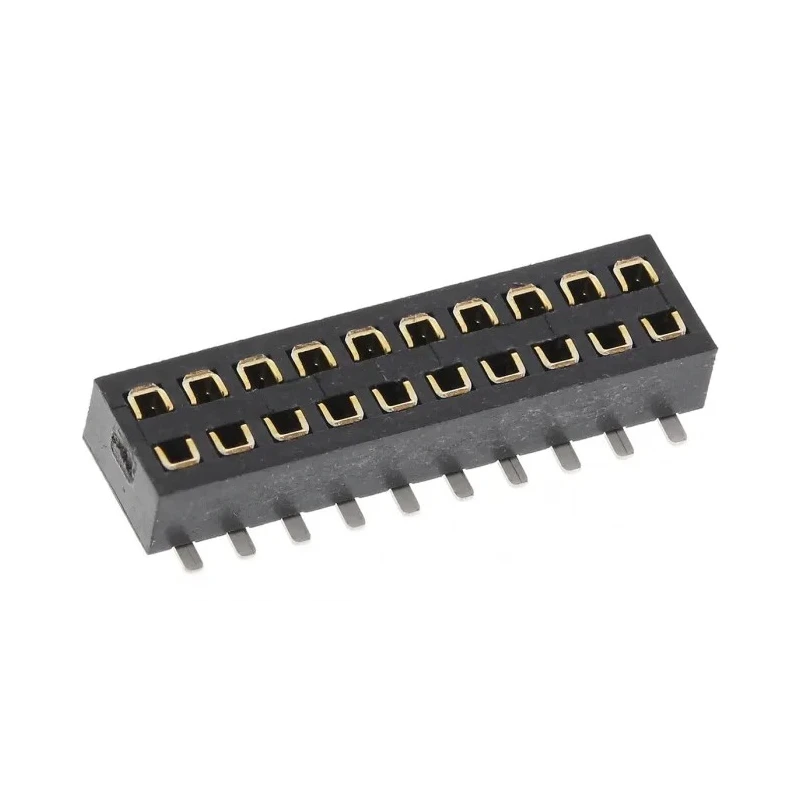

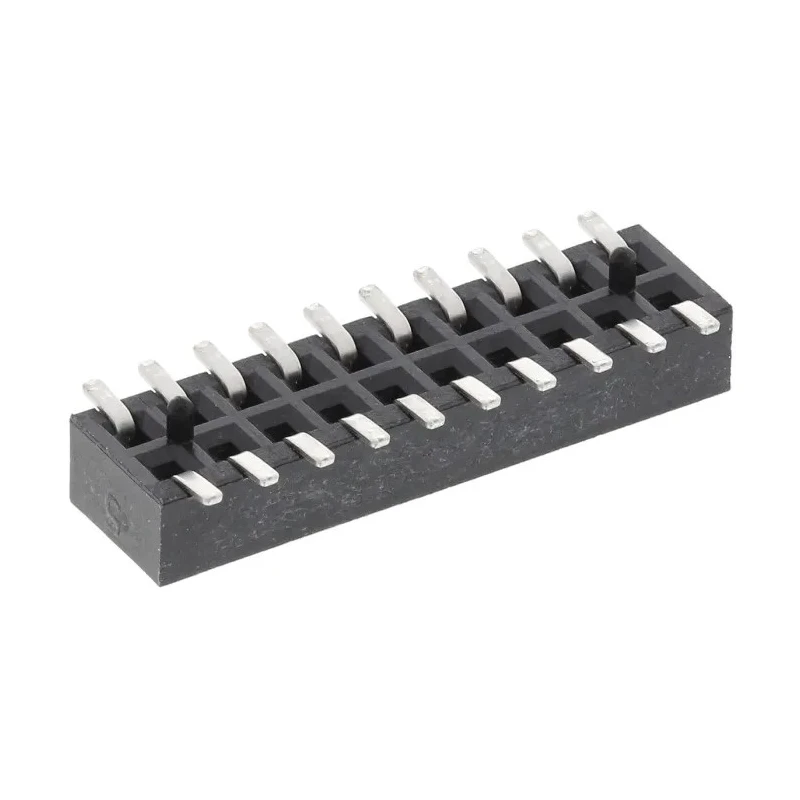

HARWIN M50 Series Straight Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch Solder M50-3151042
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M50-3151042 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M50 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with nylon housing ensuring durability and insulating properties.
- Contacts are made of bronze with gold plating for excellent conductivity and corrosion resistance.
- Designed for a 1A current rating and 1kV voltage capacity suitable for low power electronic applications.
- Surface mount type with straight orientation for easy PCB assembly and space-saving layout.
- Operates reliably in temperatures ranging from -40°C to 105°C for versatile industrial use.
- Compatible with M50 series mating headers for flexible electronic component integration.
- Features female contact gender designed to mate securely with corresponding pin headers.
Product Description
HARWIN M50-3151042 is a 20-contact, 2-row straight surface PCB socket designed for reliable electronic board-to-board connections. The socket is constructed with high-quality nylon housing which provides excellent mechanical strength and electrical insulation essential for demanding industrial and electronic applications.
The bronze contacts are gold plated to ensure minimal electrical resistance, excellent corrosion resistance, and long-lasting performance. This socket supports a current rating of 1A and withstands voltages up to 1kV, making it suitable for various low-power electronics and communication devices.
It features solder termination type with surface mount technology (SMT), facilitating streamlined PCB assembly processes and reducing the overall device footprint. The straight orientation and female contact gender are ideal for pairing with compatible M50 series pin headers, providing secure and stable mating.
Operating reliably in harsh environments, this PCB socket is rated for a temperature range from -40°C to +105°C. It is commonly used in industrial tools, electronics manufacturing, and embedded systems requiring dependable electrical connections.
The M50-3151042 socket series complements other Harwin M50 series components, enabling modular design flexibility and ensuring easy component replacement or upgrade. Constructed with durable nylon housing. Gold plated bronze contacts provide excellent conductivity.
Rated at 1A current and 1kV voltage for low-power applications. Surface mount solder termination type for PCB assembly efficiency. Compatible with M50 series mating pin headers. Operates within the temperature range of -40°C to 105°C.
Designed for board-to-board connection in industrial electronics. Explore more PCB Sockets and connectors in the Electronics Components category on EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 1A, suitable for low-power electronic applications.
The M50-3151042 socket is rated for a voltage capacity of 1kV, making it suitable for various electronic devices.
It features a nylon housing for durability and electrical insulation, while the contacts are made of bronze with gold plating for excellent conductivity and corrosion resistance.
The M50-3151042 operates reliably within a temperature range of -40°C to +105°C, suitable for industrial use.
This socket features 20 contacts arranged in 2 rows, designed for board-to-board connections.
It utilizes surface mount technology (SMT) for efficient PCB assembly and space-saving layouts.
The contact pitch for this model is 1.27 mm, allowing for compact connections on PCBs.
The M50-3151042 features a female contact gender, designed to mate securely with corresponding pin headers.
Yes, it is compatible with M50 series mating headers, allowing for flexible electronic component integration.
The termination type for this model is solder, which is standard for surface mount applications.
The country of origin for this socket is India.
This socket is commonly used in industrial tools, electronics manufacturing, and embedded systems requiring dependable electrical connections.
