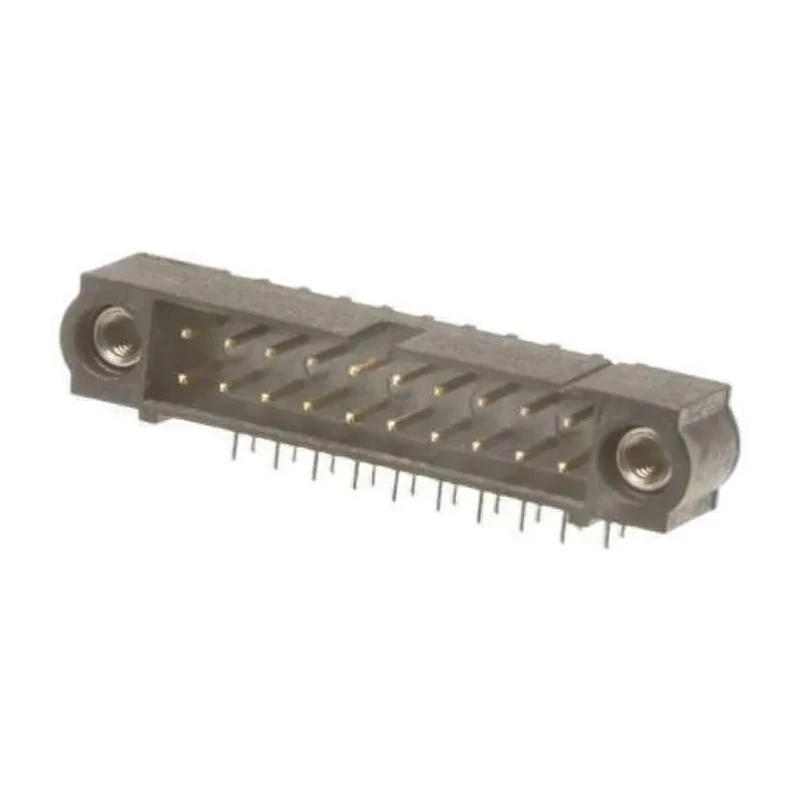

HARWIN Datamate J-Tek Series Right Angle Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5301042

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate J-Tek Series Right Angle Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5301042

Name: HARWIN Datamate J-Tek Series Right Angle Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 2 Row, Shrouded M80-5301042
Brand: HARWIN
SKU: 210367
Price: 15.23 USD
Availability: InStock



Category PCB Header Brand HARWIN Condition New

Specifications

Country of Origin	India
Voltage	120V
Brand	HARWIN
Orientation	Right Angle
Current	3A
Model	M80-5301042
Mount Type	Through Hole
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate J-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3mm

Key Features

Designed for high-reliability electronic connections in harsh environments.
Features a right-angle orientation optimized for PCB assembly.
Constructed with a Polyphenylene Sulphide housing for durability.
Gold-plated phosphor bronze contacts ensure excellent conductivity.
Supports a current rating of 3 Amperes at 120V voltage.
Mount type is through hole for secure mechanical and electrical connections.
Tail pins measure 3 mm in length for stable soldering.
Operating temperature ranges from -55°C to 125°C suitable for industrial applications.

Product Description

HARWIN M80-5301042 is a Right Angle Through Hole PCB Header from the high-reliability Datamate J-Tek Series, featuring 10 male contacts arranged in 2 rows with a 2 mm pitch. This connector is engineered to perform under demanding industrial, electronic, and manufacturing applications where vibration, shock, and harsh environmental conditions are prevalent.

The header uses a durable Polyphenylene Sulphide housing material combined with gold-plated phosphor bronze contacts to ensure superior conductivity and long service life. Its shrouded design offers polarization to prevent misalignment during mating, enhancing connection reliability.

Operating at 3A current and 120V voltage, the connector supports through-hole mounting with 3 mm tail pins designed for robust solder connections. The operational temperature range from -55°C up to 125°C allows deployment in a wide variety of industrial, electronics assembly, and instrumentation applications.

The M80-5301042 is compatible with board-to-board and wire-to-board connector systems and is part of a broader family of Datamate J-Tek connectors designed for applications requiring secure and durable high-performance electrical interconnections.

Designed for high-reliability electronic connections in harsh environments. Right-angle orientation optimized for PCB assembly. Polyphenylene Sulphide housing material provides durability. Gold-plated phosphor bronze contacts ensure excellent conductivity.

Supports 3A current rating at 120V voltage. Through-hole mounting with 3 mm tail pins. Operating temperature range from -55°C to 125°C. Shrouded design providing polarization and protection. Compatible with board-to-board and wire-to-board connector systems.

Suitable for industrial, electronic manufacturing, and instrumentation applications. Explore more high-quality electronic components and PCB Headers by browsing the Electronics & Electricals category on EnvMart.
