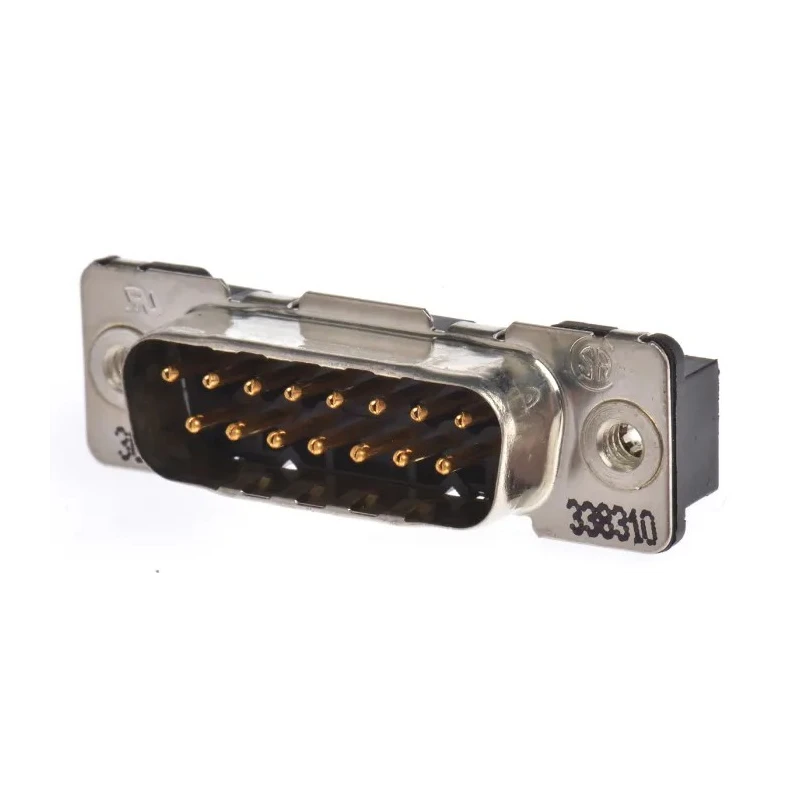

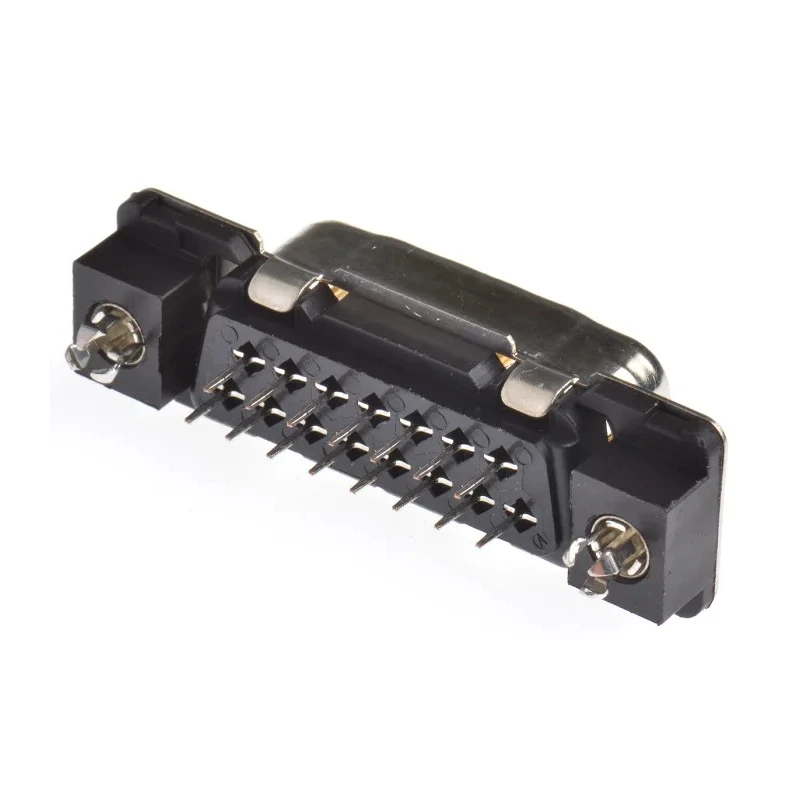

TE Connectivity Amplimite HDP-20 15 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC 1-338310-2

TE Connectivity’s 1-338310-2 Amplimite HDP-20 15 Way Straight Through Hole D-Sub Connector offers high performance and reliable connectivity in electronics and industrial power applications. This connector features 15 male contacts with a 2.74 mm pitch spacing, providing excellent current carrying capacity of up to 6 amperes.

The housing is made from durable black polyester glass-filled polyethylene terephthalate, complemented by a robust tin-plated steel shell for superior mechanical strength. Contacts are manufactured from phosphor bronze and plated with gold over nickel to ensure optimal electrical conductivity and long-lasting resistance to corrosion.

Designed for through hole PCB mounting, the connector includes a 4 to 40 UNC threaded insert for secure attachment. The solder termination ensures a solid and reliable connection to circuit boards. Operating temperature range spans from -55°C to 105°C, making it suitable for demanding environments.

This AMPLIMITE HDP-20 series D-Sub Connector supports industrial, manufacturing, electronic equipment, and power distribution applications where reliable and stable electrical connections are critical. Its standardized footprint ensures easy integration into existing designs and systems.

Features 15 male contacts rated for 6A current capacity. Constructed with phosphor bronze contacts plated gold over nickel for enhanced conductivity and corrosion resistance. Housing is made from black polyester glass-filled polyethylene terephthalate for durability.

Designed for through hole PCB mounting with a tin-plated steel shell for robust mechanical support. Operates reliably within -55°C to 105°C temperature range. Connector orientation is straight with a 4 to 40 UNC threaded insert mounting hardware.

Suitable for industrial and electronic power connector applications. Termination type is solder, ensuring secure, low resistance connections. Standardized as part of the AMPLIMITE HDP-20 series for consistent design integration.

This product is an ideal choice for applications in industries such as electronics manufacturing, automation equipment, telecommunications, and power supplies where reliable and precise electrical connections are necessary.
