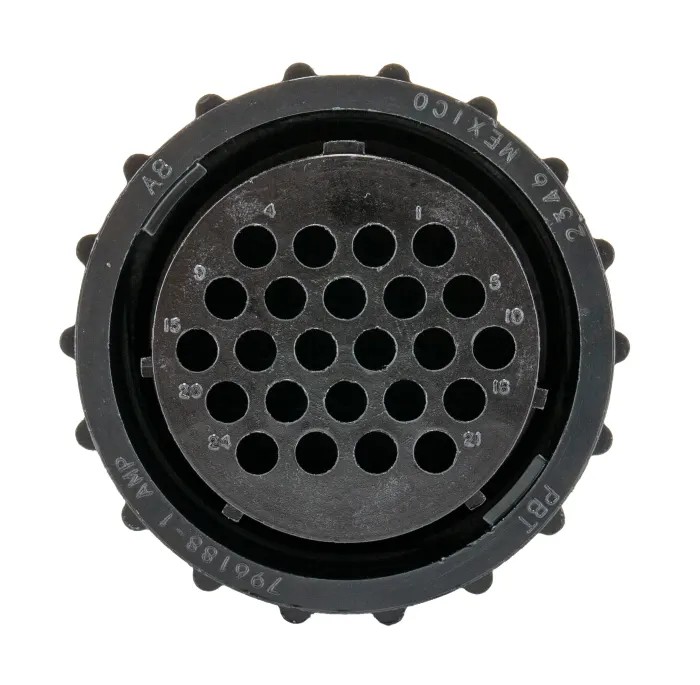

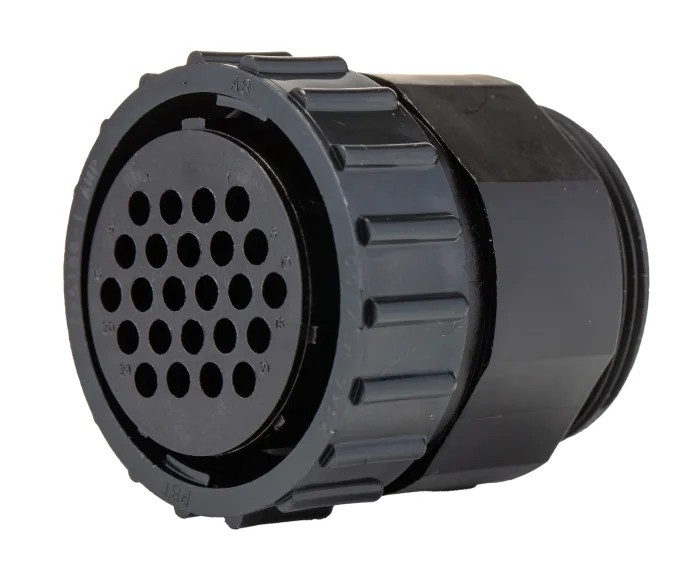

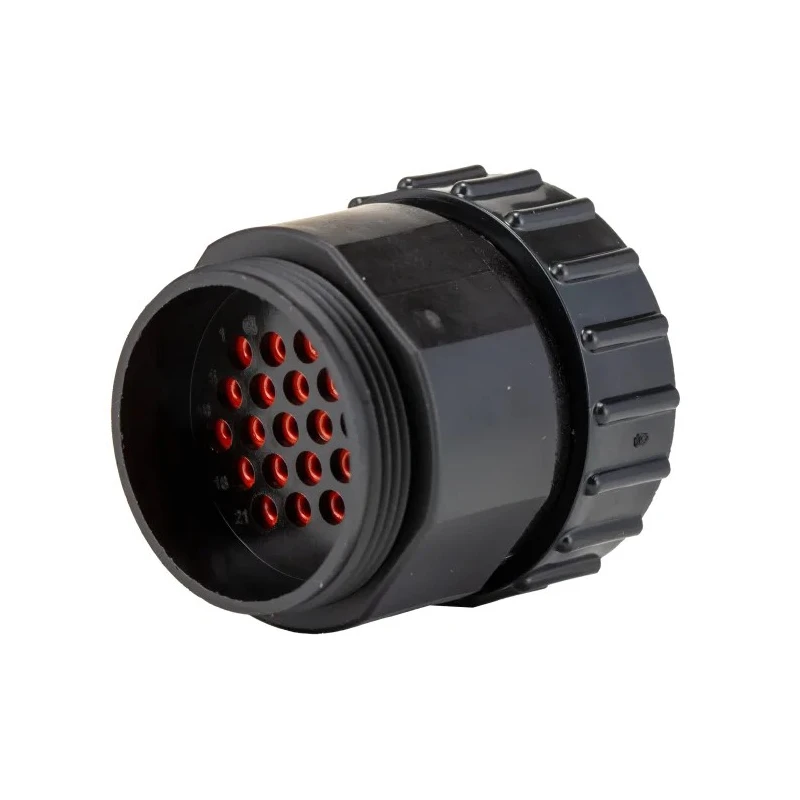

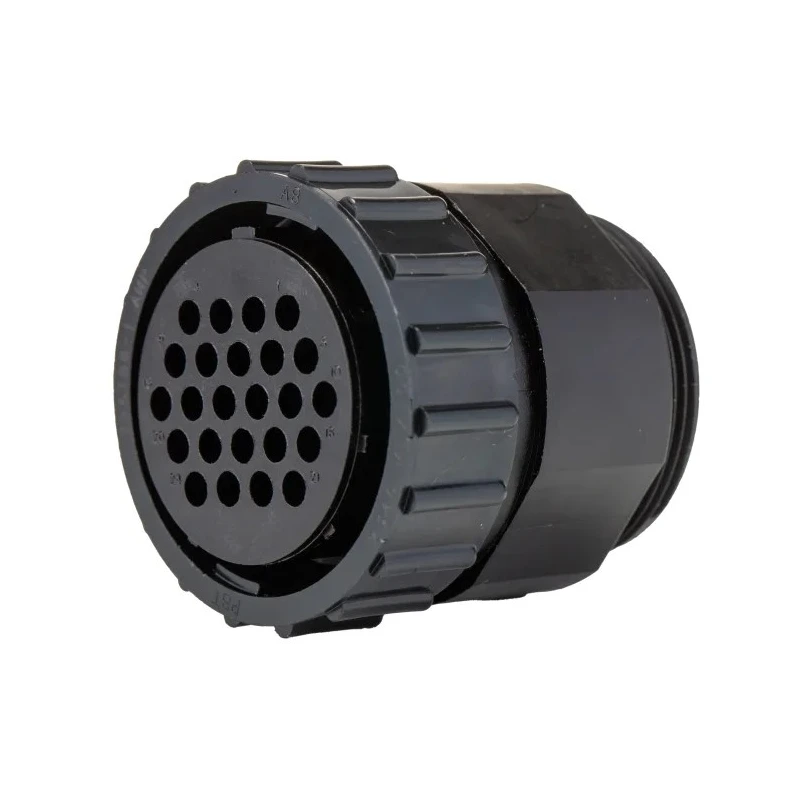

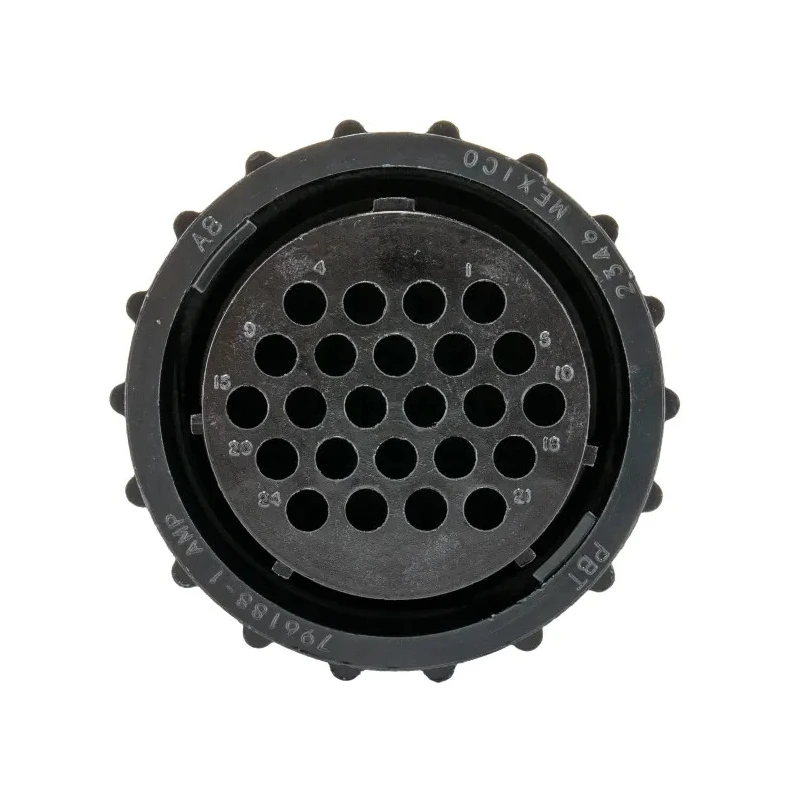

TE Connectivity Circular Connector Cable Plug Female 24 Contacts Standard Size Nylon Housing 600V CPC Series 796188-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 796188-1 |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | RoHS |
| Pole Format | 24 |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Shell Size | 23 |
| Mating Type | Keyed |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- Designed with a durable nylon housing for industrial use.
- Operates reliably in temperatures from -50°C to 125°C.
- Rated for 600 volts, suitable for power and signal applications.
- Coding type A with straight orientation for secure mating.
- Termination is by crimp for efficient assembly.
- Compliance with RoHS standards ensures environmental safety.
- The connector uses a keyed mating type to prevent incorrect connections.
- Shell size 23 provides standard fitting dimensions.
Product Description
TE Connectivity 796188-1 Circular Connector is a cable-mounted plug designed for industrial and electronic applications requiring robust, sealed connections with 24 female contacts. This standard size plug utilizes a durable nylon housing material rated UL 94V-0, providing excellent resistance to environmental stress.
The connector operates efficiently within a temperature range from -50°C to 125°C and is rated to handle voltages up to 600 V, making it suitable for power and control circuits. Its keyed mating and straight orientation ensure reliable and secure connections during installation and operation.
Termination of contacts uses crimp technology, enabling dependable electrical contacts and ease of assembly in bulk manufacturing. The CPC series connectors feature a bonded peripheral seal made of gray elastomer, enhancing environmental sealing for industrial environments.
This connector complies with RoHS standards, confirming its conformance to environmental and safety regulations. Its coding type A and shell size 23 are maintained as standard across similar connector ranges for interchangeability.
Durable nylon housing suitable for industrial conditions. Operates reliably between -50°C and 125°C. Rated to 600 V for power and signal applications. Crimp termination for reliable contact connections. Keyed mating prevents mismating during installation.
Coding type A and shell size 23 ensure compatibility. Series CPC with sealed construction for environmental protection. Compliance with RoHS for environmental safety.
This product is widely used in industrial automation, manufacturing equipment, and electronic power control systems where secure cable connections and environmental sealing are essential. Its standard mounting and sizing make it adaptable across various industrial applications, from machinery to instrumentation.
Explore a broad range of high-quality connectors and electronic components at EnvMart to support your industrial and laboratory requirements.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 600 volts, making it suitable for power and signal applications.
It operates reliably within a temperature range from -50°C to 125°C.
This connector features 24 female contacts.
Termination is achieved through crimp technology, ensuring dependable electrical connections.
The housing is made from durable nylon, providing resistance to environmental stress.
It has a shell size of 23, which is a standard fitting dimension.
It uses a keyed mating type to prevent incorrect connections during installation.
Yes, it complies with RoHS standards, confirming its adherence to environmental safety regulations.
This model features coding type A, ensuring compatibility with other connectors in the same range.
It is widely used in industrial automation, manufacturing equipment, and electronic power control systems.
The connector has a straight orientation for secure mating during installation.
The country of origin for this connector is India.
