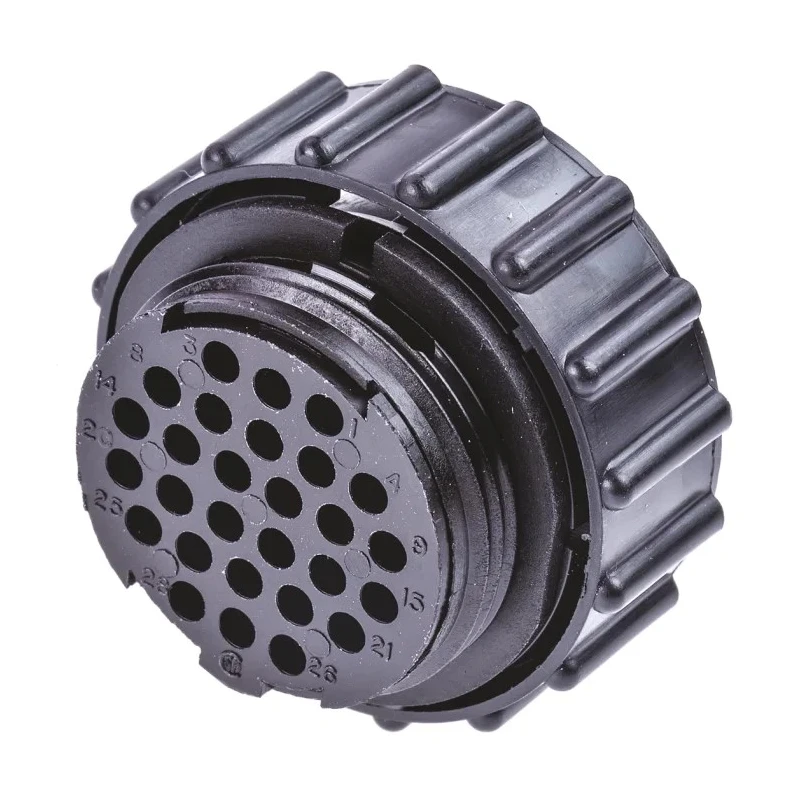

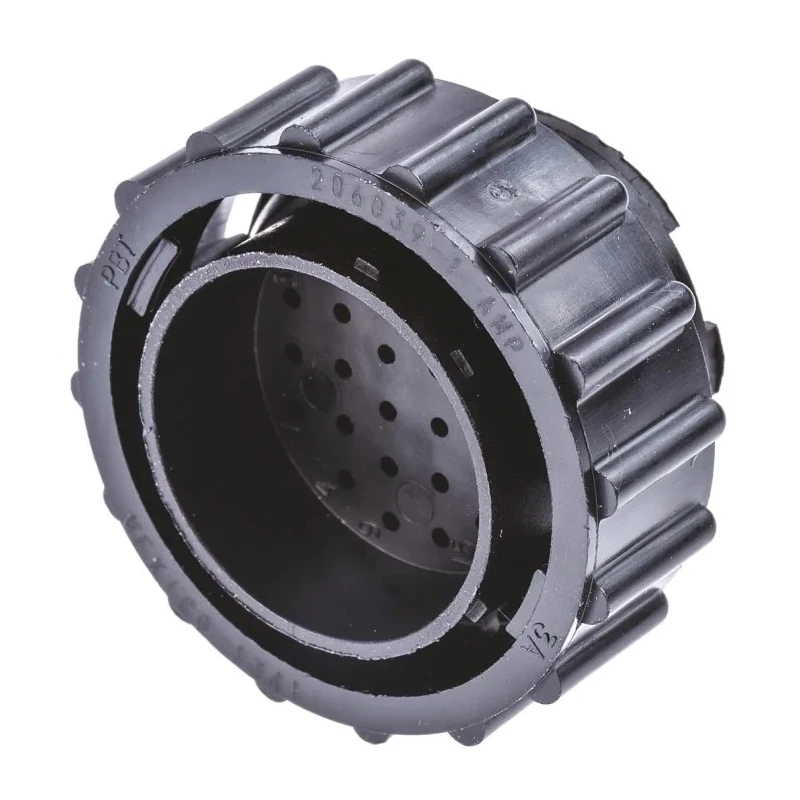

TE Connectivity Circular Connector 28 Contacts Cable Standard Plug Male CPC Series 206039-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7.5A |
| Model | 206039-1 |
| Mount Type | Cable |
| Housing Material | Polyester, Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pole Format | 37 |
| Number of Contacts | 28 |
| Contact Gender | Male |
| Shell Size | 17 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- The connector supports a current rating of 7.5A and operates at 250V.
- Threaded mating type with straight orientation ensures secure connections.
- Housing made of UL 94V-0 rated polyester thermoplastic for heat resistance.
- Operates reliably in temperatures from -55°C to 105°C.
- Quick connect/disconnect with built-in pin and socket protection.
- Ideal for industrial, transportation, HVAC, and automation applications.
- Rugged construction resists vibration and shock.
- Compliant with RoHS environmental standards.
Product Description
TE Connectivity 206039-1 Circular Connector, part of the CPC series, is a 28 contacts cable mount standard plug with male contacts designed to provide reliable and durable connections in industrial applications.
Operating at 250V and 7.5A current rating, this connector features a straight orientation and threaded mating type to ensure stable connection under vibration and shock.
The connector housing is constructed from heat-resistant polyester thermoplastic with UL 94V-0 rating, suitable for operating temperatures ranging from -55°C to 105°C, making it ideal for harsh environments.
The CPC series connectors are recognized for quick assembly and disassembly with built-in pin and socket protection, facilitating rapid field repairs and reducing equipment downtime.
This product finds applications across rail and transit vehicles, lighting and signage, HVAC systems, motor vehicles, agricultural machinery, industrial automation, and instrumentation.
CPC connectors comply with RoHS standards, ensuring environmental safety and sustainability in electrical installations. The connector supports a current rating of 7.5A and 250V voltage for low current industrial signalling.
Threaded mating type provides a secure mechanical connection guarded against accidental disengagement. Durable thermoplastic housing is UL 94V-0 rated for heat resistance and self-extinguishing properties. Operational temperature range from -55°C to 105°C suits a variety of industrial environments.
Crimp termination type allows for reliable electrical connections assembled both in the field and factory. The 28-contact configuration suits medium-density cable harnesses and control circuits. Lightweight and rugged design reduces installation effort and maintenance.
Built-in pin and socket protection extends connector lifetime and enables quick repaired replacements. Explore more Industrial Circular Connectors from TE Connectivity at EnvMart for your electronic component and power connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This circular connector supports a current rating of 7.5A.
It operates at a voltage of 250V.
The connector operates reliably in temperatures ranging from -55°C to 105°C.
This model features a crimp termination type for reliable electrical connections.
The housing is made of UL 94V-0 rated polyester thermoplastic, providing heat resistance.
It uses a threaded mating type which provides a secure mechanical connection, guarding against accidental disengagement.
This connector has 28 contacts.
It is ideal for applications in industrial, transportation, HVAC, and automation sectors.
The shell size of this connector is 17.
Yes, it complies with RoHS environmental standards, ensuring safety and sustainability in electrical installations.
The connector features a straight orientation.
The country of origin for this connector is India.
