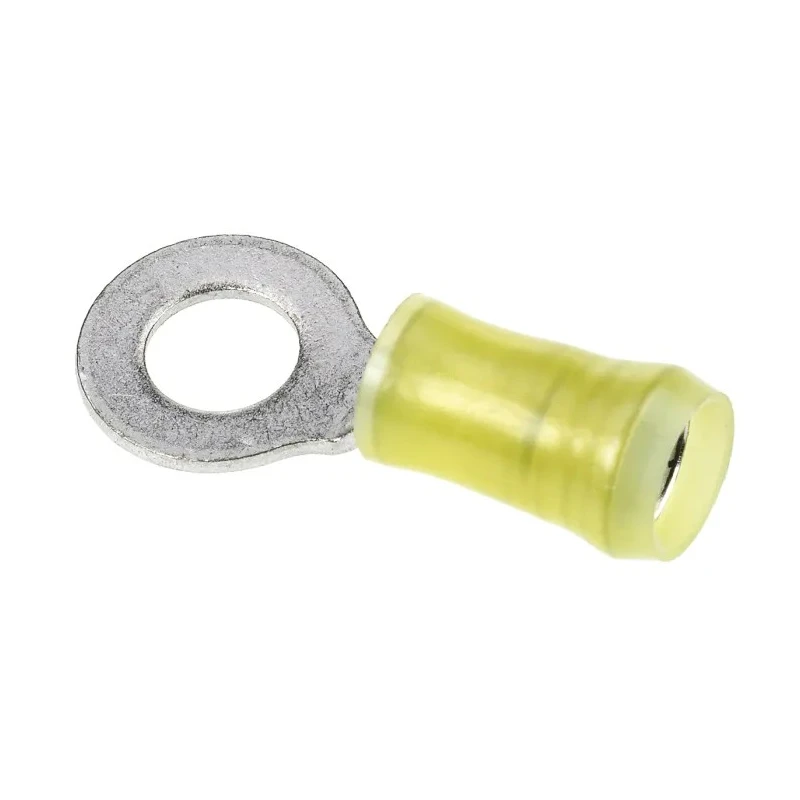

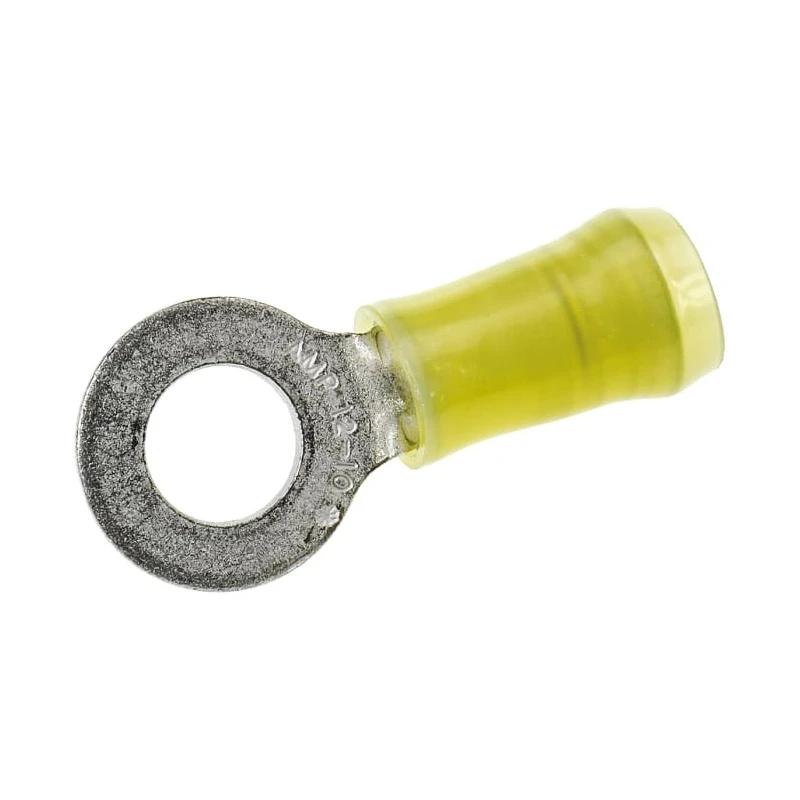

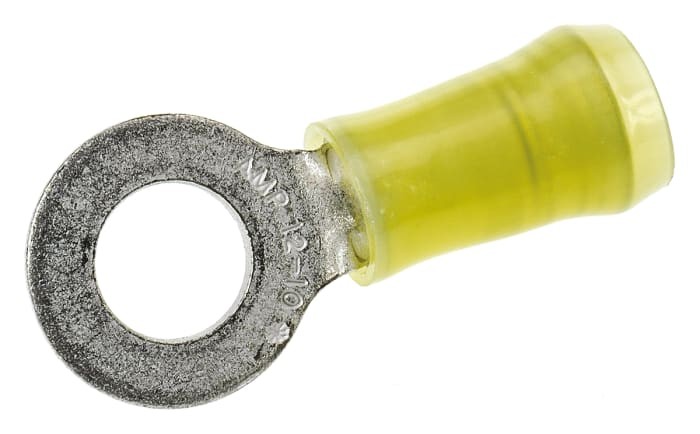

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 165034
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 165034 |
| Insulation | Insulated |
| Overall Length | 29.9mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.7mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 12.7mm |
| Inner Ring Diameter | 6.7mm |
| Stud Size | M6 |
Key Features
- Constructed with a high conductivity copper body for reliable electrical performance.
- Features a copper sleeve providing improved wire insulation support.
- The wire barrel has serrations ensuring maximum contact and tensile strength after crimping.
- Outer colour-coded yellow nylon sleeve for easy wire size identification.
- Funnelled wire entry design for quick and easy wire insertion during production.
- Suitable for use in instruments, control panels, lighting, power supplies, and transportation equipment.
- Complies with RoHS standards, ensuring restriction of hazardous substances.
- Maximum operating temperature rating of 105°C for durability in demanding environments.
Product Description
TE Connectivity 165034 PIDG insulated ring terminal combines high conductivity copper construction with a durable insulated design for industrial and electrical wiring applications. It features an M6 stud size compatible with wire sizes from 12 AWG to 10 AWG.
The terminal includes a copper sleeve inside the barrel to enhance wire insulation support and prevent fraying. Serrations within the wire barrel provide superior contact and tensile strength after crimping, ensuring dependable connectivity. The outer yellow nylon sleeve enables quick wire size identification and facilitates rapid insertion due to its funnelled entry design.
Designed for high reliability, these ring terminals meet or exceed MIL-T-7928, Type II, Class 1 and 2 requirements. They are well-suited for use across various sectors including instruments and controls, lighting systems, power supplies, panel boxes, transportation and lifting equipment, motors, aerospace, and household appliances.
The insulated terminal is rated for a maximum operating temperature of 105°C and complies with RoHS standards, confirming it is free of restricted hazardous substances. Constructed from high conductivity copper for optimum electrical performance.
Copper sleeve inside the wire barrel improves insulation support and prevents wire fraying. Serrated barrel design ensures maximum tensile and contact strength after crimping. Colour-coded yellow nylon sleeve facilitates easy wire size identification.
Funnelled wire entry supports fast insertion during high-speed production. Meets MIL-T-7928 standards suitable for military and industrial applications. Maximum operating temperature of 105°C for use in demanding environments.
TE Connectivity PIDG Ring Terminals provide a uniform and reliable crimp connection making them ideal for a wide range of commercial, industrial, and aerospace electrical wiring applications. Explore EnvMart’s extensive catalog of power connectors to find matching crimping tools and compatible accessories for optimal installation ease and durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal is compatible with wire sizes from 12 AWG to 10 AWG, or 2.7 mm² to 6.6 mm².
The maximum operating temperature rating for this terminal is 105°C, making it suitable for demanding environments.
It is constructed from high conductivity copper, with a tin-plated contact and an insulated yellow nylon sleeve for easy identification.
The stud size for this model is M6, which is standard for various industrial applications.
The terminal features a funnelled wire entry design that supports quick and easy wire insertion during production.
It complies with RoHS standards, ensuring it is free from restricted hazardous substances, and meets or exceeds MIL-T-7928 requirements.
The outer ring diameter of this terminal is 12.7 mm, while the inner ring diameter is 6.7 mm.
This terminal is suitable for use in instruments, control panels, lighting systems, power supplies, and transportation equipment.
The terminal includes serrations within the wire barrel that provide superior contact and tensile strength after crimping, ensuring dependable connectivity.
The overall length of this terminal is 29.9 mm, which is designed to fit various installation requirements.
Yes, the funnelled wire entry design allows for rapid insertion, making it suitable for high-speed production environments.
The thickness of this insulated ring terminal is 0.79 mm, contributing to its performance in electrical applications.
