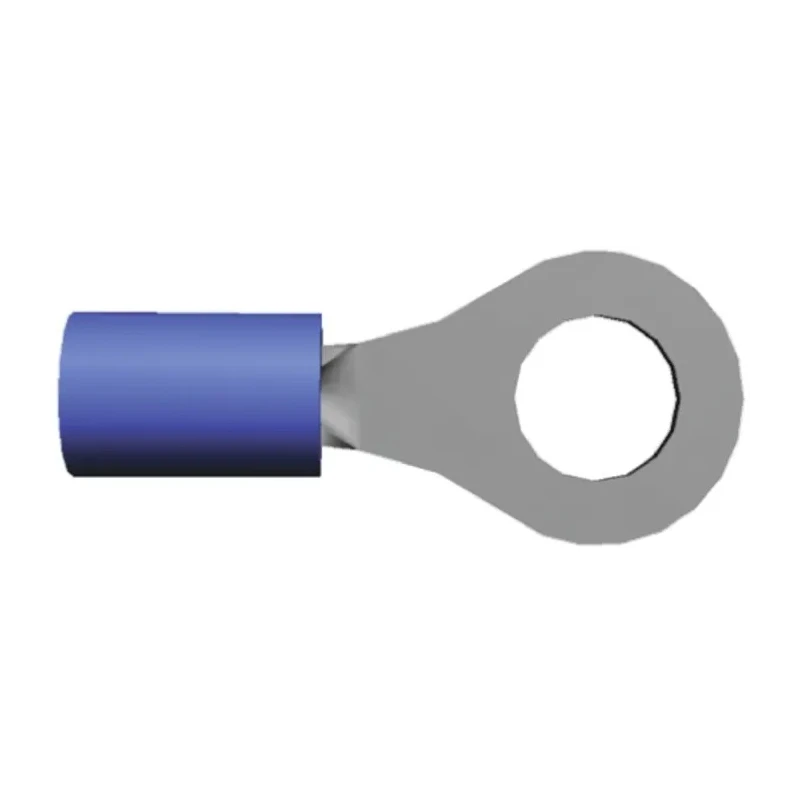

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 16 AWG 14 AWG Wire Size Blue 321045
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 321045 |
| Insulation | Insulated |
| Overall Length | 27.38mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M6 |
Key Features
- Features a blue nylon insulation sleeve for easy wire size identification.
- Constructed with a high conductivity copper body and tin-plated contacts.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Funnelled entry design allows fast and easy wire insertion during production.
- Compatible with M6 stud size applications for versatile use.
- Designed to provide improved wire insulation support and prevent fraying.
- Suitable for industrial, aerospace, transportation, and electrical panel applications.
- Capable of operating up to a maximum temperature of 105°C.
Product Description
TE Connectivity 321045 PIDG Insulated Ring Terminal is a high-quality wire crimp terminal designed to provide durable and reliable electrical connections in various industrial and commercial environments.
This ring terminal features a precision-formed high conductivity copper body with tin plating for enhanced corrosion resistance and conductivity. The PIDG (Pre-Insulated Diamond Grip) nylon insulated sleeve, distinguished by its blue color, enables quick wire size identification and enhances protection against electrical shorts and mechanical wear.
The serrated wire barrel increases contact and tensile strength after crimping, while the copper sleeve offers additional wire insulation support and prevents wire strand fraying. The funnelled entry design allows for rapid wire insertion, making it suitable for high-speed production processes.
These ring terminals are optimized for use with M6 stud size hardware and accommodate wire sizes ranging from 16 AWG to 14 AWG (1 mm² to 2.6 mm²), withstanding maximum operating temperatures up to 105°C.
Applications for this product include use in electrical panels, instrumentation and control wiring, lighting systems, power supplies, transportation equipment, motors, aerospace assemblies, and lifting machinery.
Features a blue nylon insulation sleeve for easy wire size identification. Constructed with a high conductivity copper body and tin-plated contacts. Serrated wire barrel ensures maximum contact and tensile strength after crimping.
Funnelled wire entry design facilitates fast and reliable wire insertion. Supports wire sizes from 16 AWG to 14 AWG compatible with M6 stud size. Offers enhanced wire insulation support to prevent strand fraying. Operates reliably in environments up to 105°C maximum temperature.
Ideal for industrial, aerospace, automotive, and electrical panel wiring applications.
TE Connectivity provides a trusted range of PIDG terminals engineered for uniform reliability in demanding circuit environments. For comprehensive product options and usage guidance, explore more from TE Connectivity’s Ring Terminal offering on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal can operate reliably at a maximum temperature of 105°C.
It accommodates wire sizes ranging from 16 AWG to 14 AWG, or 1 mm² to 2.6 mm².
This terminal is designed for use with M6 stud size applications.
It features a high conductivity copper body with tin plating for enhanced corrosion resistance and conductivity, and a nylon insulation sleeve.
The funnelled entry design allows for fast and easy wire insertion, making it suitable for high-speed production processes.
It is suitable for various applications including electrical panels, instrumentation, lighting systems, and transportation equipment.
The overall length of this terminal is 27.38 mm.
The serrated wire barrel ensures maximum contact and tensile strength after crimping, enhancing the reliability of the connection.
The insulation on this terminal is blue, which aids in easy wire size identification.
This ring terminal is manufactured in Hungary.
It uses nylon insulation, which provides improved wire insulation support and prevents fraying.
This terminal is part of the PIDG (Pre-Insulated Diamond Grip) series.
