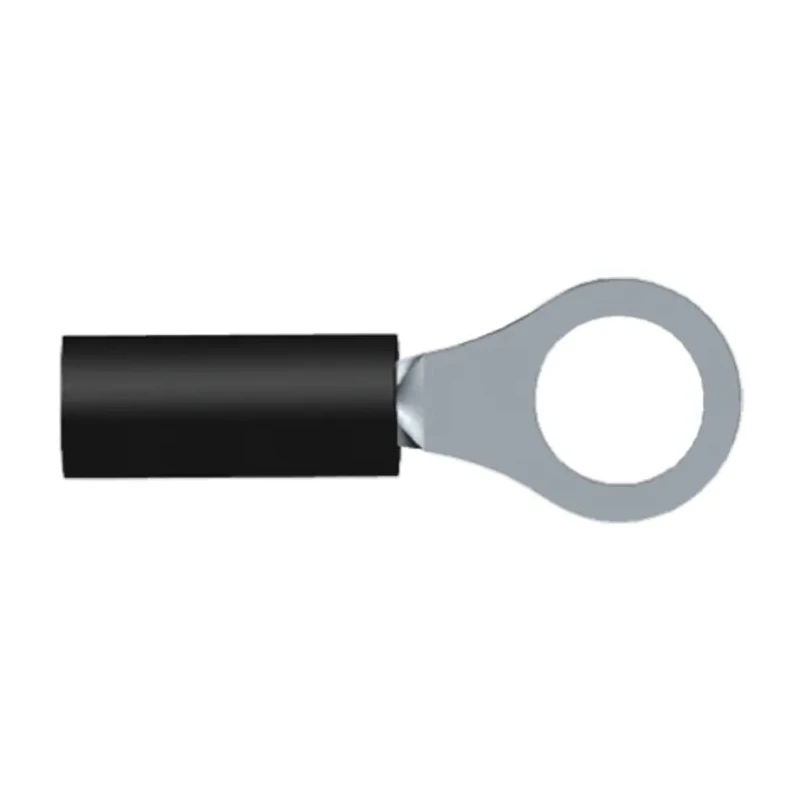

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22-24 AWG Wire Size Black 151440
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 0.79mm |
| Model | 151440 |
| Insulation | Insulated |
| Overall Length | 19.98mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper material ensuring efficient electrical contact.
- Insulated with durable black nylon for protection and wire identification.
- Fitted with tin-plated contacts for corrosion resistance.
- Features serrated wire barrel for enhanced tensile strength and stable crimps.
- Supports wire sizes from 22 AWG to 24 AWG with a stud size of M4.
- Overall length measures 19.98 mm for compact installations.
- Designed for reliable performance up to 105°C operating temperature.
- Meets RoHS standards for environmental compliance.
Product Description
TE Connectivity 151440 PIDG insulated ring terminal is a precision-designed wire terminal suitable for M4 stud size connections and wire sizes ranging from 22 AWG to 24 AWG. This product features a high conductivity copper body with a tin-plated finish, guaranteeing excellent electrical contact and durability.
The terminal is insulated with a black nylon sleeve that provides enhanced wire insulation support, prevents fraying, and facilitates easy wire size identification through color coding. The wire barrel includes serrations that offer maximum contact and tensile strength after crimping, ensuring secure and reliable connections in demanding environments.
With an overall length of 19.98 mm and a thickness of 0.79 mm, these terminals fit compact spaces and are designed to withstand maximum operating temperatures of up to 105°C. The PIDG ring terminal construction meets RoHS environmental standards.
These ring terminals are widely used in various applications including instruments and control systems, lighting installations, power supplies, panel boxes, transportation equipment, lifting machinery, motors, aerospace systems, and household appliances. Their robust design offers uniform reliability even in harsh electrical environments.
Constructed with high conductivity copper material ensuring efficient electrical contact. Insulated with durable black nylon for protection and wire identification. Fitted with tin-plated contacts for corrosion resistance.
Features serrated wire barrel for enhanced tensile strength and stable crimps. Supports wire sizes from 22 AWG to 24 AWG with a stud size of M4. Overall length measures 19.98 mm for compact installations. Designed for reliable performance up to 105°C operating temperature.
Meets RoHS standards for environmental compliance. Suitable for industrial, aerospace, control instruments, lighting, power supply, and automotive applications. Explore the comprehensive range of TE Connectivity Ring Terminals at EnvMart for your specific industrial and electrical connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 22 AWG to 24 AWG.
The stud size for this terminal is M4.
It is designed for reliable performance up to a maximum operating temperature of 105°C.
The terminal is constructed with high conductivity copper and is insulated with durable black nylon, featuring tin-plated contacts for corrosion resistance.
The overall length of this terminal measures 19.98 mm, with a thickness of 0.79 mm.
Yes, it meets RoHS standards for environmental compliance.
The inner ring diameter is 4.34 mm, and the outer ring diameter is 7.14 mm.
It features insulation made from durable nylon, which aids in wire identification and protection.
This terminal is suitable for various applications including instruments, control systems, lighting installations, and automotive uses.
The contact material is high conductivity copper, which ensures efficient electrical contact.
The serrated wire barrel enhances tensile strength and provides stable crimps for secure connections.
The country of origin for this terminal is the United States.
