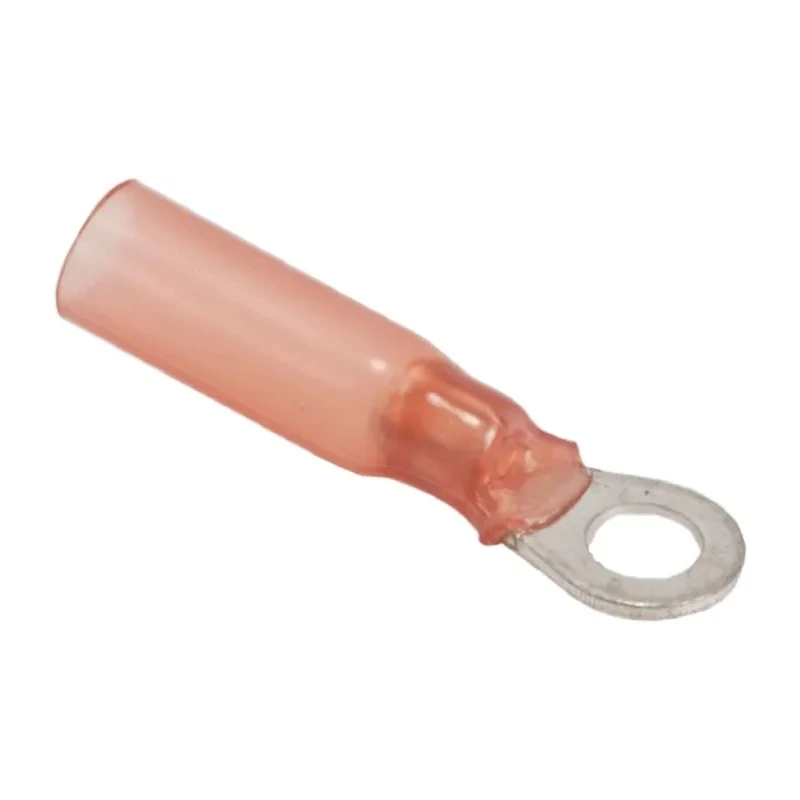

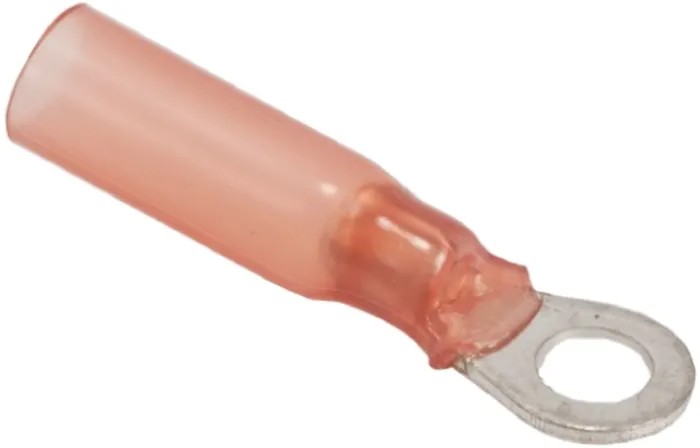

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 22 AWG to 16 AWG Red 130054
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 130054 |
| Insulation | Insulated |
| Overall Length | 27mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 105°C |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 5.21mm |
| Stud Size | M6 |
Key Features
- High conductivity tin plated copper contact ensures efficient electrical performance.
- Expanded vinyl insulation sleeve rated 94V-0 provides high dielectric strength.
- Serrated inner barrel improves electrical contact and tensile strength after crimping.
- Funnel entry design facilitates easy insertion of stripped wire.
- Suitable for wire sizes from 0.25 mm² to 1.6 mm².
- Maximum operating temperature of 105°C supports industrial and commercial applications.
Product Description
TE Connectivity 130054 PLASTI-GRIP insulated ring terminal offers reliable electrical wire termination for industrial, manufacturing, and power connector applications. Designed with a high conductivity copper contact plated with tin, this ring terminal ensures minimal resistance and excellent conductivity. The red vinyl insulation sleeve rated 94V-0 provides superior dielectric strength, protecting connections from electrical faults.
The serrated inner barrel enhances tensile strength and secures maximum electrical contact post-crimping while the funnel entry aids in smooth wire insertion, suitable for wires ranging from 22 AWG to 16 AWG (0.25 mm² to 1.6 mm²). The ring terminal features a 27 mm overall length, an outer ring diameter of 11.91 mm, inner ring diameter of 5.21 mm, and a thickness of 0.79 mm, accommodating M6 stud size connections.
With a maximum operating temperature rating of 105°C and compliance with RoHS standards, this ring terminal is ideal for electrical harnesses, control panels, HVAC systems, and automotive wiring where secure and durable electrical terminations are critical.
High conductivity tin plated copper contact ensures efficient electrical performance. Expanded vinyl insulation sleeve rated 94V-0 provides high dielectric strength. Serrated inner barrel for better tensile strength and electrical contact after crimping.
Funnel entry design facilitates easier wire insertion. Fits wire sizes from 0.25 mm² to 1.6 mm² (22 AWG to 16 AWG). Rated for maximum operating temperature up to 105°C.
Choose TE Connectivity PLASTI-GRIP ring terminals for quality, durability, and consistency in your wire termination needs. Explore more Ring Terminals and power connectors in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG to 16 AWG, which corresponds to 0.25 mm² to 1.6 mm².
The maximum operating temperature is rated at 105°C, making it suitable for various industrial and commercial applications.
The contact material is copper, which is tin plated to ensure high conductivity, while the insulation is made of expanded vinyl rated 94V-0.
The overall length is 27 mm, with an outer ring diameter of 11.91 mm, an inner ring diameter of 5.21 mm, and a thickness of 0.79 mm.
The serrated inner barrel improves electrical contact and enhances tensile strength after crimping, ensuring a secure connection.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
It features expanded vinyl insulation, which provides high dielectric strength and protects against electrical faults.
This unit is designed for M6 stud size connections, making it suitable for various applications.
It is ideal for electrical harnesses, control panels, HVAC systems, and automotive wiring where secure electrical terminations are necessary.
The ring terminal is red, which is a common colour used for identification in electrical applications.
The funnel entry design facilitates easy insertion of stripped wire, enhancing the usability of the terminal during installation.
The country of origin for this ring terminal is India.
