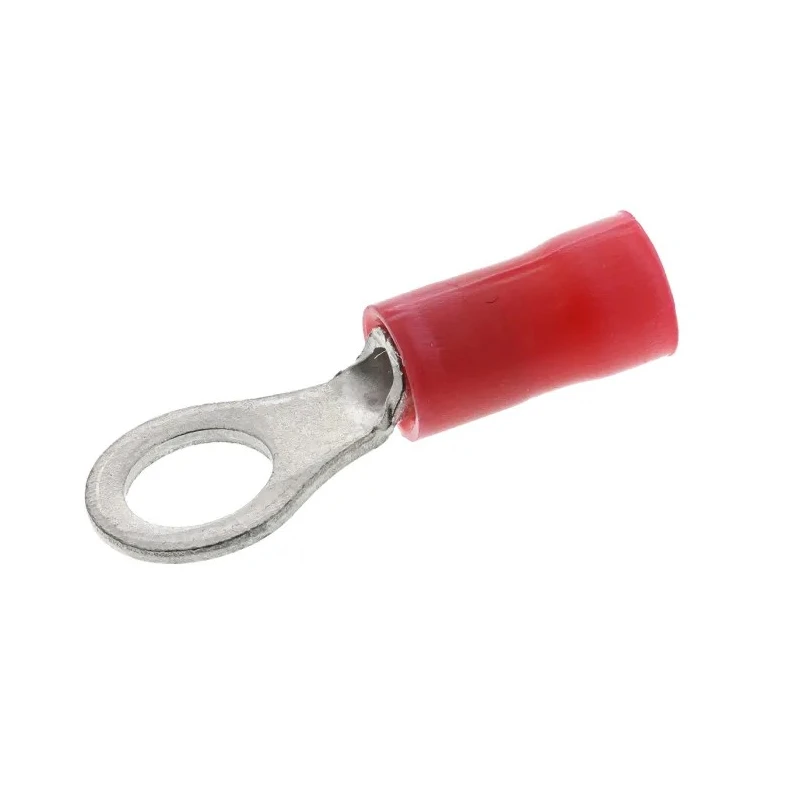

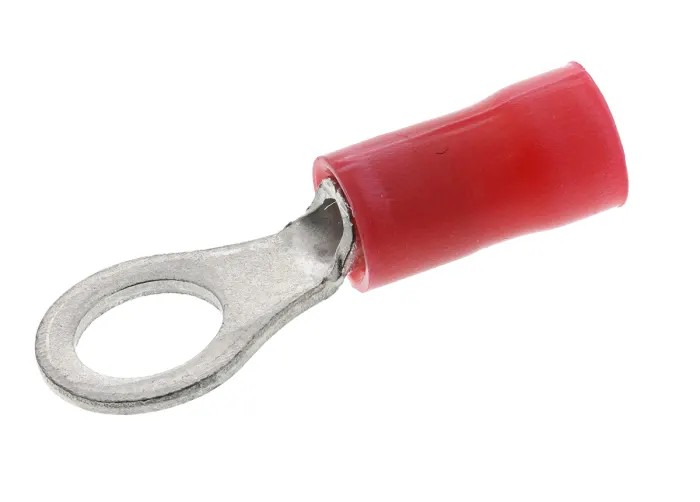

TE Connectivity PLASTI-GRIP Insulated Ring Terminal Red M5 Stud Size 22 AWG - 16 AWG 130014
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Model | 130014 |
| Insulation | Insulated |
| Overall Length | 21.8mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Maximum Operating Temperature | 90°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper contact material plated with tin for optimal electrical performance.
- Features a red 94V-0 rated vinyl insulation sleeve for electrical safety and high dielectric strength.
- Suitable for wire sizes ranging from 22 AWG to 16 AWG, supporting 0.26 mm² to 1.6 mm² cross-sectional area.
- Designed with a closed barrel and serrated inner wire barrel to ensure maximum electrical contact and tensile strength after crimping.
- Funnel entry on wire barrel facilitates easy insertion of stripped wires.
- Overall length of 21.8 mm and compatible with M5 stud size fasteners.
- Maximum operating temperature is 90°C, suitable for many industrial and electrical environments.
Product Description
TE Connectivity 130014 PLASTI-GRIP Insulated Ring Terminal is engineered for secure and efficient electrical wire termination. This ring terminal features a copper contact made from high conductivity tin-plated copper that ensures excellent electrical conduction and corrosion resistance.
The red vinyl insulation sleeve is rated to 94V-0, providing superior dielectric strength and mechanical protection. Its closing barrel design with serrated internal wire barrel improves contact and tensile hold once crimped, ensuring robust and reliable connections in demanding applications.
This terminal accommodates wire sizes from 22 AWG to 16 AWG (0.26 mm² to 1.6 mm²) and is compatible with M5 stud size fastening hardware. The overall length of the Ring Terminal is 21.8 mm, making it compact yet effective for space-constrained installations.
Operating temperature limits up to 90°C allow use in various industrial, electrical, and manufacturing environments, including power connectors, electronics assembly, and wiring harness construction.
Constructed with high conductivity copper plated with tin for optimal electrical contact. 94V-0 rated vinyl insulation sleeve provides strong dielectric and mechanical protection. Serrated closed barrel for superior crimp tensile strength and contact.
Compatible with wire sizes 22 AWG to 16 AWG (0.26 mm² to 1.6 mm²). Suitable for M5 stud size connection points with overall length of 21.8 mm. Operates reliably up to a maximum temperature of 90°C.
Ideal for use in electronic components, power connectors, industrial wiring, and general electrical maintenance. TE Connectivity PLASTI-GRIP terminals are manufactured to deliver consistent quality and dependable performance in professional settings.
Discover more about TE Connectivity products and explore our extensive selection of electronic connectors and terminals suited for industrial, laboratory, manufacturing, and commercial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this insulated ring terminal is 90°C.
This model accommodates wire sizes ranging from 22 AWG to 16 AWG, which corresponds to a cross-sectional area of 0.26 mm² to 1.6 mm².
The overall length of the terminal is 21.8 mm.
It is constructed with high conductivity copper contact material that is plated with tin for optimal electrical performance.
This terminal features a red vinyl insulation sleeve rated to 94V-0, providing high dielectric strength and mechanical protection.
The design includes a closed barrel with a serrated inner wire barrel, which ensures maximum electrical contact and tensile strength after crimping.
This terminal is compatible with M5 stud size fasteners.
It is suitable for various applications, including power connectors, electronics assembly, and wiring harness construction.
The terminal is colored red.
The country of origin for this product is India.
The funnel entry on the wire barrel facilitates easy insertion of stripped wires, simplifying the crimping process.
This terminal belongs to the PLASTI-GRIP series by TE Connectivity.
