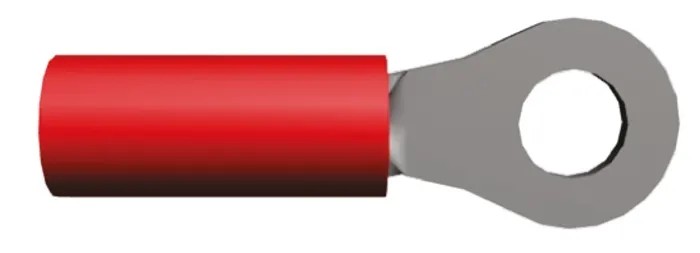

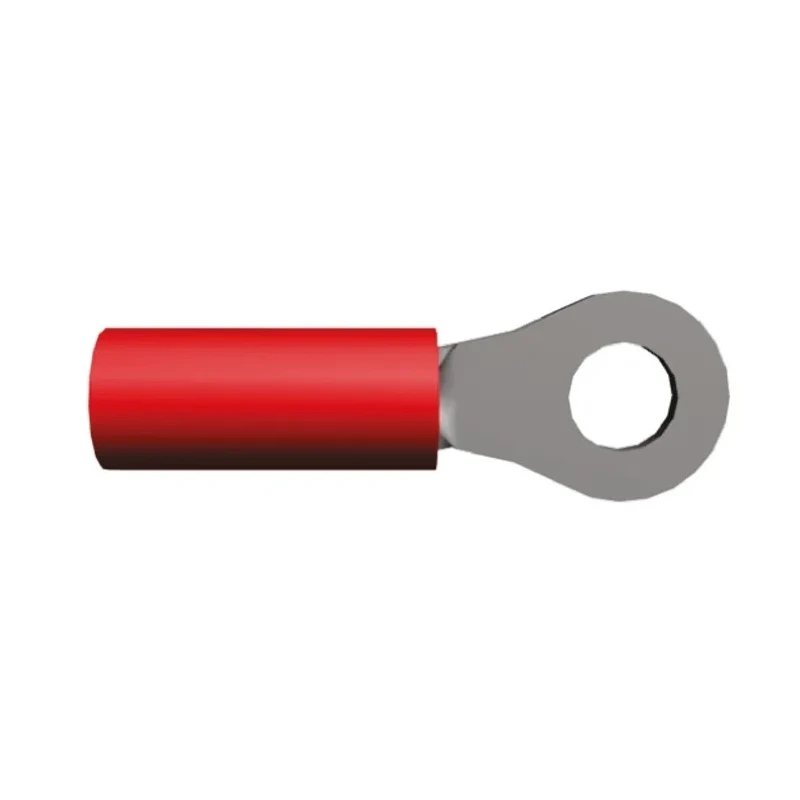

TE Connectivity PIDG Insulated Ring Terminal, M3.5 Stud Size, 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red 36152

TE Connectivity 36152 PIDG Insulated Ring Terminal is designed for dependable wiring connections in demanding environments. The terminal is fitted with M3.5 stud size and is suitable for wire sizes from 22 AWG to 16 AWG. The copper body construction provides superior conductivity, enhanced by a tin plating that protects against corrosion.

The ring terminal features a nylon color-coded insulation sleeve in red, which assists in quick wire size identification, streamlining the installation process. Internally, the barrel contains serrations that deliver excellent tensile strength and consistent crimp contact, while the copper sleeve supports wire insulation and prevents wire strands from fraying.

A funnelled wire entry improves ease of use during high-speed production line operations, ensuring efficient and uniform crimps. The terminal complies with RoHS regulations, underscoring its commitment to environmental and safety standards. With a maximum operating temperature rating of 105°C, this ring terminal is suitable for various applications including industrial instrumentation, control panels, lighting systems, power supplies, aerospace assemblies, transportation equipment, motors, and appliances.

These features make the TE Connectivity 36152 PIDG Insulated Ring Terminal an essential component for ensuring secure and long-lasting electrical connections in industrial, manufacturing, and commercial electrical installations.

Constructed with high conductivity copper body for optimal electrical performance. Features a nylon outer insulation sleeve in red for easy wire size identification. Serrated wire barrel ensures maximum contact and tensile strength after crimping.

Copper sleeve inside the barrel provides improved wire insulation support and prevents fraying. Funnelled wire entry allows fast and easy wire insertion during high-speed production. Suitable for a wide range of applications including instruments, lighting, power supplies, and aerospace.

Rated for maximum operating temperature of up to 105°C. Compliance with RoHS standards ensuring environmental safety. Explore EnvMart for more TE Connectivity power connectors and reliable electrical components optimized for industrial and commercial applications.
