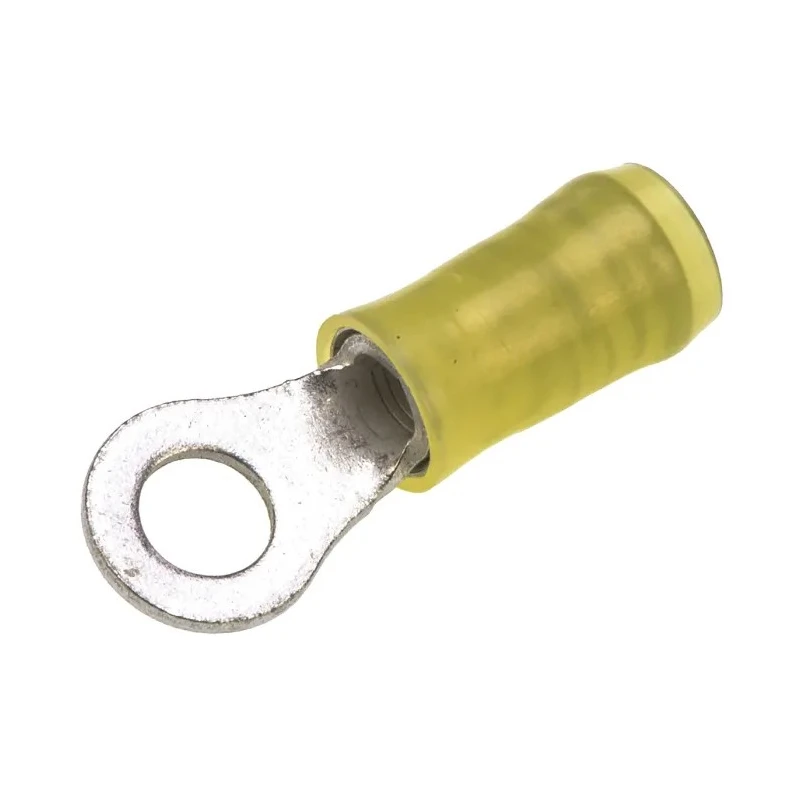

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 130167
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.039in |
| Model | 130167 |
| Insulation | Insulated |
| Overall Length | 27.69mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.375in |
| Inner Ring Diameter | 0.207in |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper body for reliable electrical performance.
- PIDG ring tongue design ensures uniform and reliable crimps in demanding circuit environments.
- Copper sleeve within barrel provides enhanced wire insulation support and prevents fraying.
- High-temperature resistant nylon insulation sleeve colored yellow for easy wire size identification.
- Funnelled wire entry facilitates quick and secure wire insertion during production.
- Suitable for a broad range of applications including instruments, control panels, transportation, and aerospace.
- Meets or exceeds requirements of MIL-T-7928, Type II, Class 1 and 2 for quality assurance.
- Overall length of 27.69 mm with an outer ring diameter of 0.375 inches and inner diameter of 0.207 inches.
Product Description
TE Connectivity 130167 PIDG Insulated Ring Terminal is a high-quality electrical connector designed for secure and reliable wiring applications involving 12 AWG to 10 AWG wires. Featuring a precision-formed copper body and barrel with serrated wire barrel for exceptional contact and tensile strength, this ring terminal ensures uniform crimps suitable for industrial, automotive, aerospace, and control panel uses.
The ring terminal incorporates a copper sleeve within the barrel to support insulation and prevent wire fraying. A yellow nylon insulation sleeve aids in wire size identification and provides protection against environmental factors up to a maximum operating temperature of 105°C. The funnelled wire entry design streamlines insertion, making it highly suitable for high-speed production environments.
Applications span instrumentation, lighting, power supplies, panel boxes, motors, lifting equipment, and aerospace installations. The ring terminals meet or exceed stringent standards such as MIL-T-7928, Type II, Classes 1 and 2, ensuring compliance in demanding industrial scenarios.
High conductivity copper body for excellent electrical performance. Copper sleeve for improved wire insulation support and durability. Serrations in the barrel ensure maximum contact and tensile strength upon crimping. Colour coded yellow nylon insulation for quick wire size identification.
Funnelled wire entry for efficient and reliable wire insertion. Compatible with 12 AWG to 10 AWG wire sizes (2.6 mm² to 6.6 mm²). Overall terminal length: 27.69 mm; outer ring diameter: 0.375 inches; inner diameter: 0.207 inches.
Rated for operating temperatures up to 105°C.
Designed specifically for industrial, laboratory, manufacturing, automotive, aerospace, and electrical panel applications, this TE Connectivity PIDG Ring Terminal ensures dependable performance and ease of installation.
Explore more components and connectors in the Power Connectors category of EnvMart to find compatible solutions for your electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 12 AWG to 10 AWG, which corresponds to 2.6 mm² to 6.6 mm².
The maximum operating temperature for this terminal is rated at 105°C.
The terminal features a high conductivity copper body and a nylon insulation sleeve, with a tin contact plating for enhanced performance.
The overall length of the terminal is 27.69 mm, with an outer ring diameter of 0.375 inches and an inner ring diameter of 0.207 inches.
The funnelled wire entry design facilitates quick and secure wire insertion, making it suitable for high-speed production environments.
This terminal is suitable for a broad range of applications including instrumentation, control panels, transportation, and aerospace.
The stud size for this terminal is M5.
The PIDG ring tongue design ensures uniform and reliable crimps, which is essential in demanding circuit environments.
Yes, it meets or exceeds the requirements of MIL-T-7928, Type II, Classes 1 and 2 for quality assurance.
The insulation material used is nylon, which provides protection against environmental factors.
The thickness of this terminal is 0.039 inches.
The contact material of this terminal is copper, ensuring reliable electrical performance.
