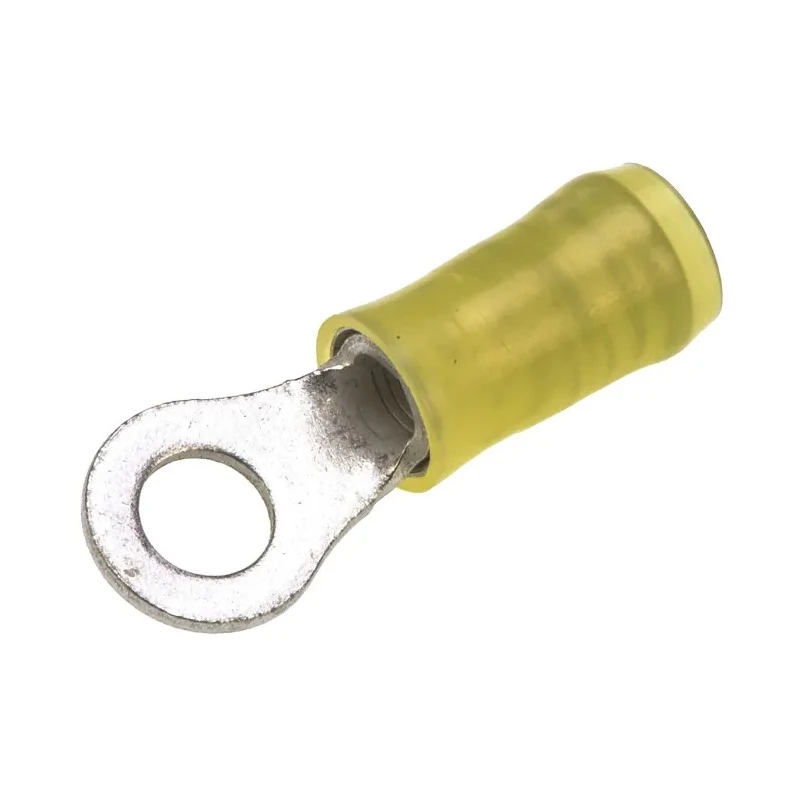

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG 10 AWG Wire Size Yellow 130167
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.039in |
| Model | 130167 |
| Insulation | Insulated |
| Overall Length | 27.69mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.375in |
| Inner Ring Diameter | 0.207in |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Features a tin-plated contact to resist corrosion.
- Nylon insulation sleeve provides durability and wire size identification.
- Overall length of 27.69mm for standard fitting.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Suitable for diverse applications including aerospace, transportation, and industrial controls.
- Designed for reliability and uniform crimps to ensure electrical integrity.
- Maximum operating temperature rating is 105°C.
Product Description
TE Connectivity 130167 PIDG Insulated Ring Terminal is a precision-engineered electrical connector for wires sized between 12 AWG and 10 AWG, featuring an M5 stud size and yellow nylon insulation for easy identification and durability.
The terminal is constructed from high conductivity copper with a tin plating to enhance corrosion resistance and ensure efficient current flow. It includes a serrated barrel design to maximize contact and tensile strength, making it ideal for demanding circuit environments. The nylon insulation sleeve supports the wire insulation, preventing fraying and improving operational safety.
This ring terminal measures 27.69 mm in overall length, with an outer ring diameter of 0.375 inches and an inner ring diameter of 0.207 inches. It is designed for use at temperatures up to 105°C, accommodating diverse industrial, aerospace, transportation, and control system applications.
High conductivity copper body for superior electrical performance. Tin-plated contact resists corrosion and improves durability. Nylon insulation sleeve enhances wire support and identification. Serrated wire barrel for secure and reliable crimps.
Color-coded yellow sleeve for quick wire gauge and tooling recognition. Compact overall length suitable for various installation needs. Supports wire sizes 12 AWG to 10 AWG, with a stud size of M5. Rated for maximum operating temperature of 105°C, ensuring reliability under heat.
This Ring Terminal is widely applied in industrial, aerospace, panel box, motor, and transportation wiring systems where consistent performance and reliability are critical. TE Connectivity PIDG terminals meet stringent industry standards ensuring uniform crimps and long-term durability in complex electrical installations.
Explore more in the EnvMart Power Connectors category to find compatible terminals and connectors for your electrical and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is designed to accommodate wire sizes between 12 AWG and 10 AWG.
The maximum operating temperature rating for this terminal is 105°C.
It is constructed from high conductivity copper with a tin-plated contact to resist corrosion, and features a nylon insulation sleeve.
The overall length is 27.69 mm, with an outer ring diameter of 0.375 inches and an inner ring diameter of 0.207 inches.
The serrated wire barrel design ensures maximum contact and tensile strength after crimping, enhancing the reliability of the connection.
It features a yellow nylon insulation sleeve for easy wire gauge and tooling recognition.
This terminal is suitable for diverse applications including aerospace, transportation, and industrial controls.
The thickness of this terminal is 0.039 inches.
The stud size for this model is M5.
It has nylon insulation, which provides durability and supports wire insulation.
Yes, it is designed for reliability and uniform crimps to ensure electrical integrity in demanding circuit environments.
The country of origin for this terminal is the United States.
